KINO-DH810
P a g e 22

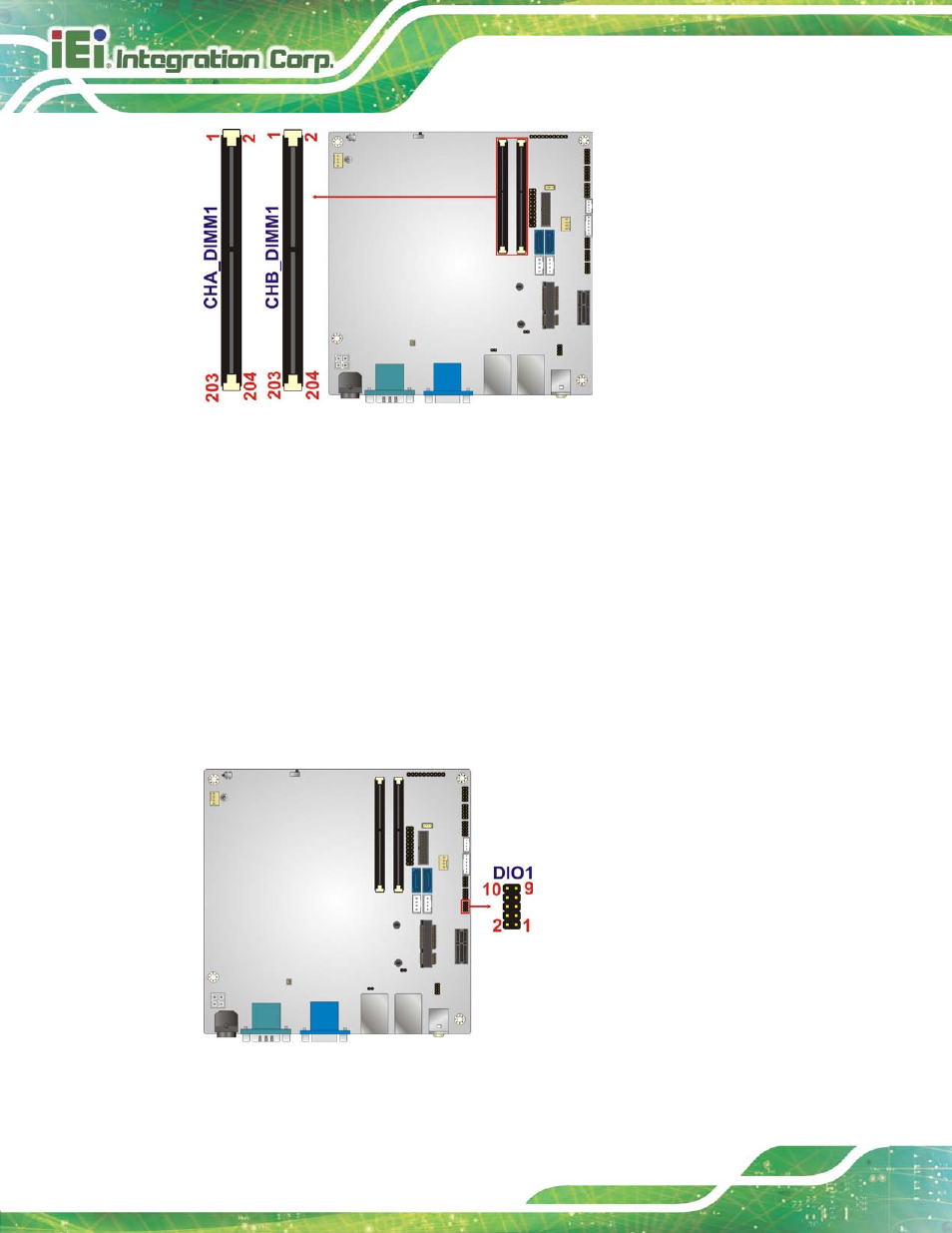

Figure 3-6: DDR3 SO-DIMM Slot Locations
3.2.6 Dig ita l I/O Co n n e c to r
CN La b e l: DIO1
CN Typ e : 10-pin header
CN Lo c a tio n : See Figure 3-7
CN P in o u ts : See Table 3-7
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input.
Figure 3-7: Digital I/O Connector Location
