KINO-DH810

P a g e 19

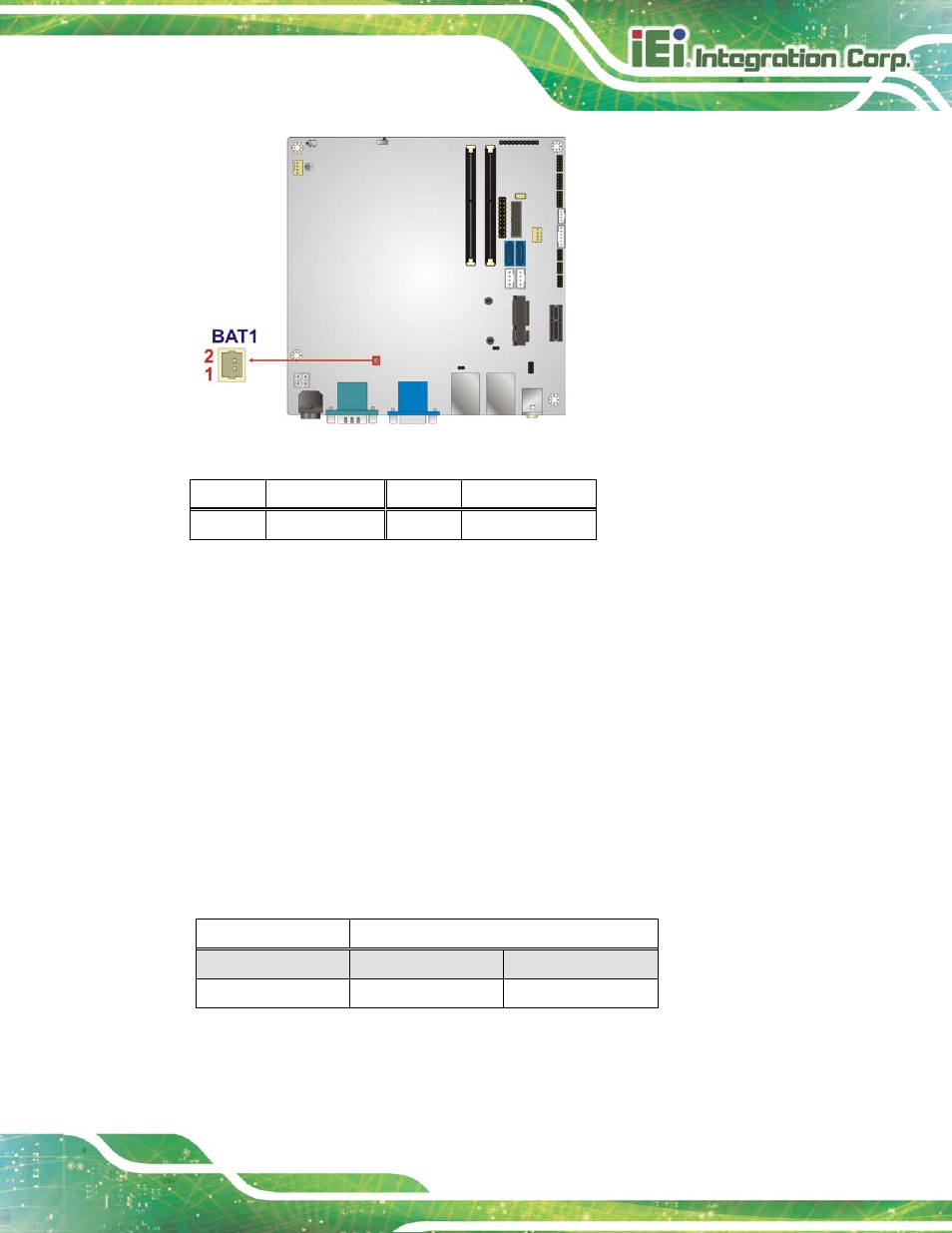

Figure 3-3: Battery Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

VBATT

2

GND

Table 3-4: Battery Connector Pinouts

3.2.3 Cle a r CMOS Bu tto n

CN La b e l:

J _CMOS 1

CN Typ e :

button

CN S e ttin g s :

See Table 3-5

CN Lo c a tio n :

See Figure 3-4

If the KINO-DH810 fails to boot due to improper BIOS settings, use the button to clear the

CMOS data and reset the system BIOS information.

The clear CMOS button settings are shown in Table 3-5.

Setting

Description

Open

Normal Operation

Default

Push

Clear CMOS Setup

Table 3-5: Clear CMOS Button Settings

The location of the clear CMOS button is shown in Figure 3-4.
