KINO-DH810
P a g e 33
Pin Description
1 +12V
2 GND
3 GND
4 +5V
Table 3-15: SATA Power Connector Pinouts
3.2.19 S e ria l P o rt Co n n e c to r, RS -422/485
CN La b e l: COM6
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-20
CN P in o u ts : See Table 3-16
This connector provides RS-422 or RS-485 communications.

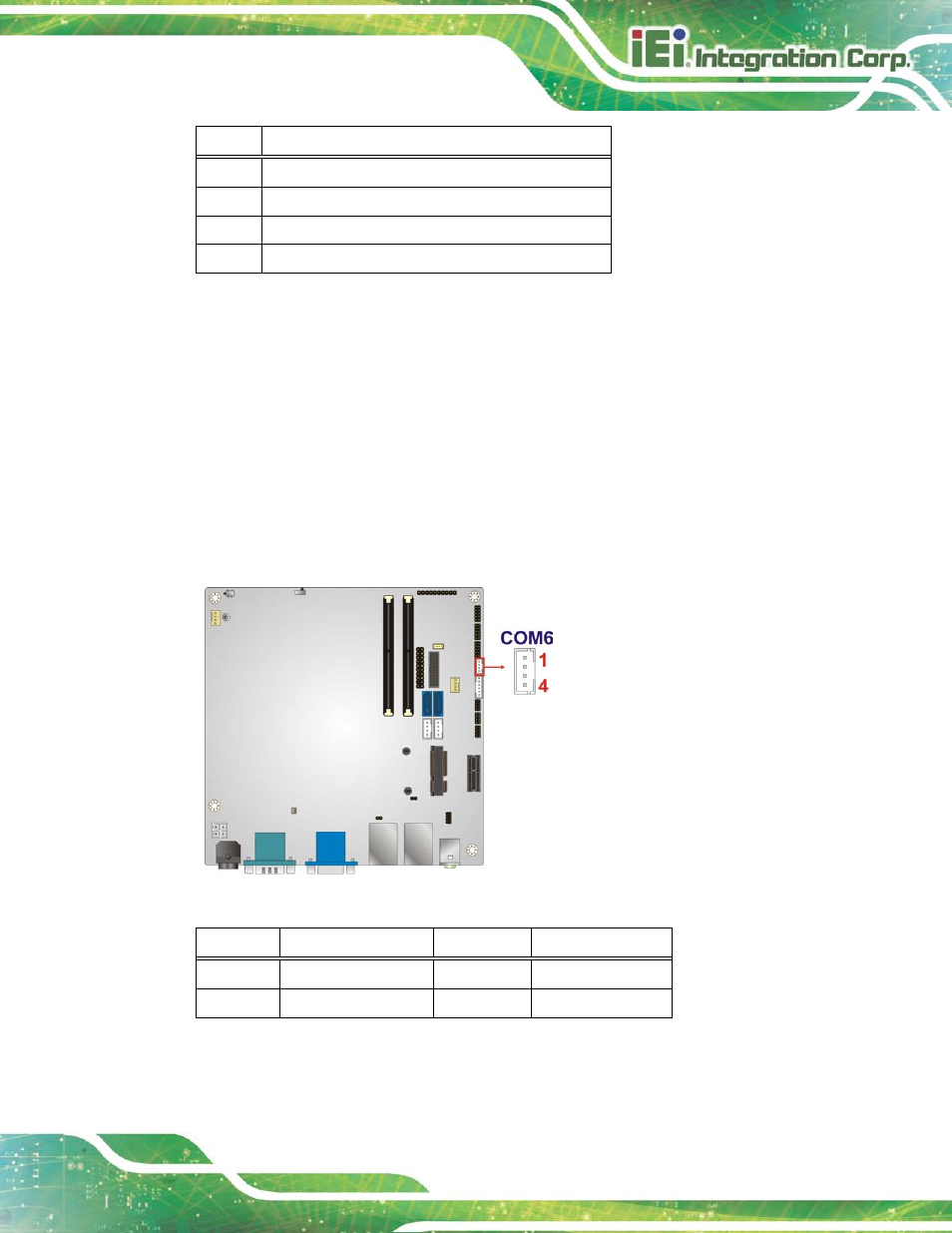

Figure 3-20: RS-422/485 Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RXD485# 2 RXD485+
3 TXD485+ 4 TXD485#
Table 3-16: RS-422/485Connector Pinouts
