KINO-DH810
P a g e 34
3.2.20 S e ria l P o rt Co n n e c to rs , RS -232
CN La b e l: COM3, COM4, COM5
CN Typ e : 10-pin header
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Table 3-17
Each of these connectors provides RS-232 connections.

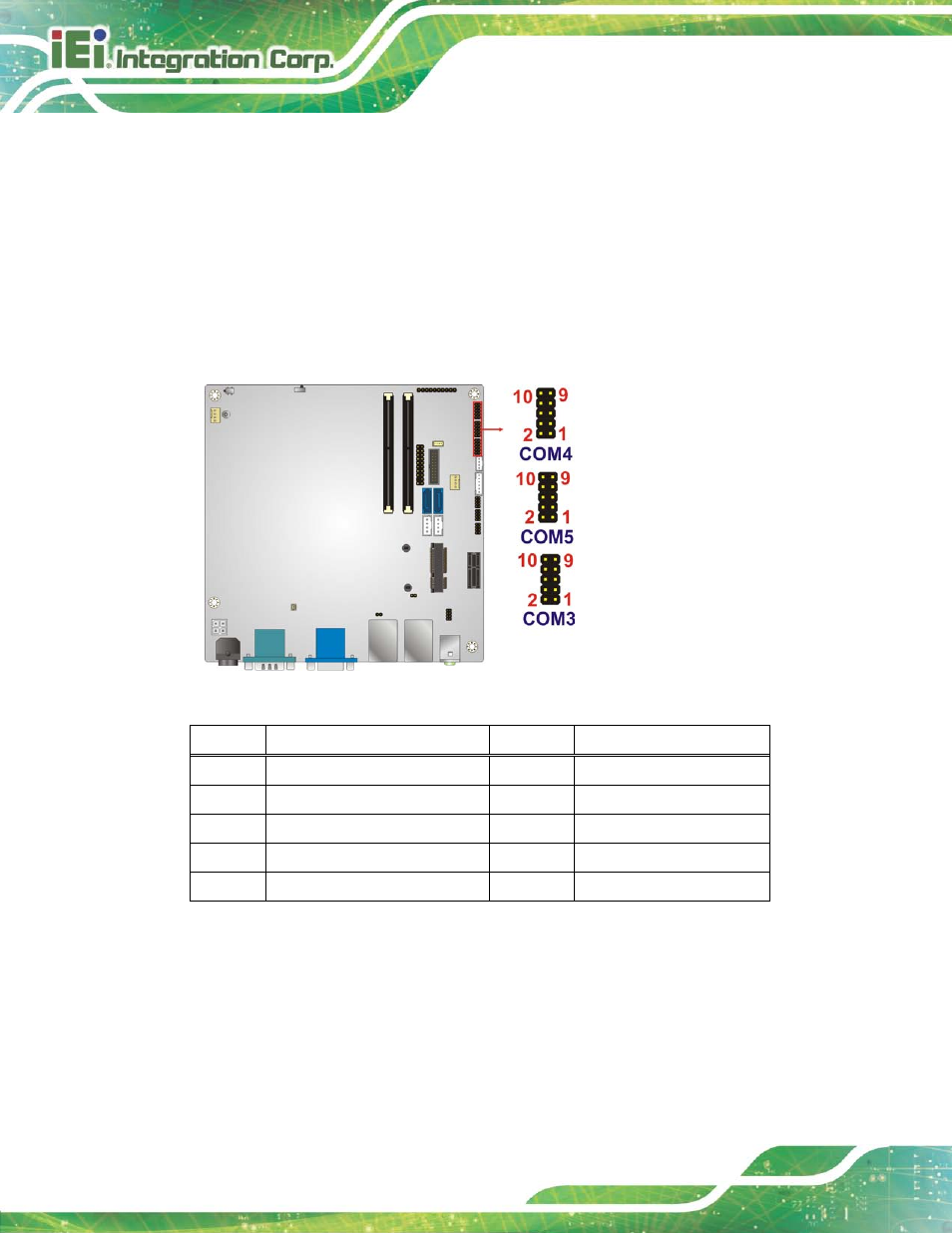

Figure 3-21: Serial Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD3/4/5 6 NDSR3/4/5
2 NRXD3/4/5 7 NRTS3/4/5
3 NTXD3/4/5 8 NCTS3/4/5
4 NDTR3/4/5 9 NRI3/4/5
5 GND 10 GND
Table 3-17: Serial Port Connector Pinouts
3.2.21 S MBUS Co n n e c to r
CN La b e l: CN1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-22
