KINO-DH810

P a g e 21

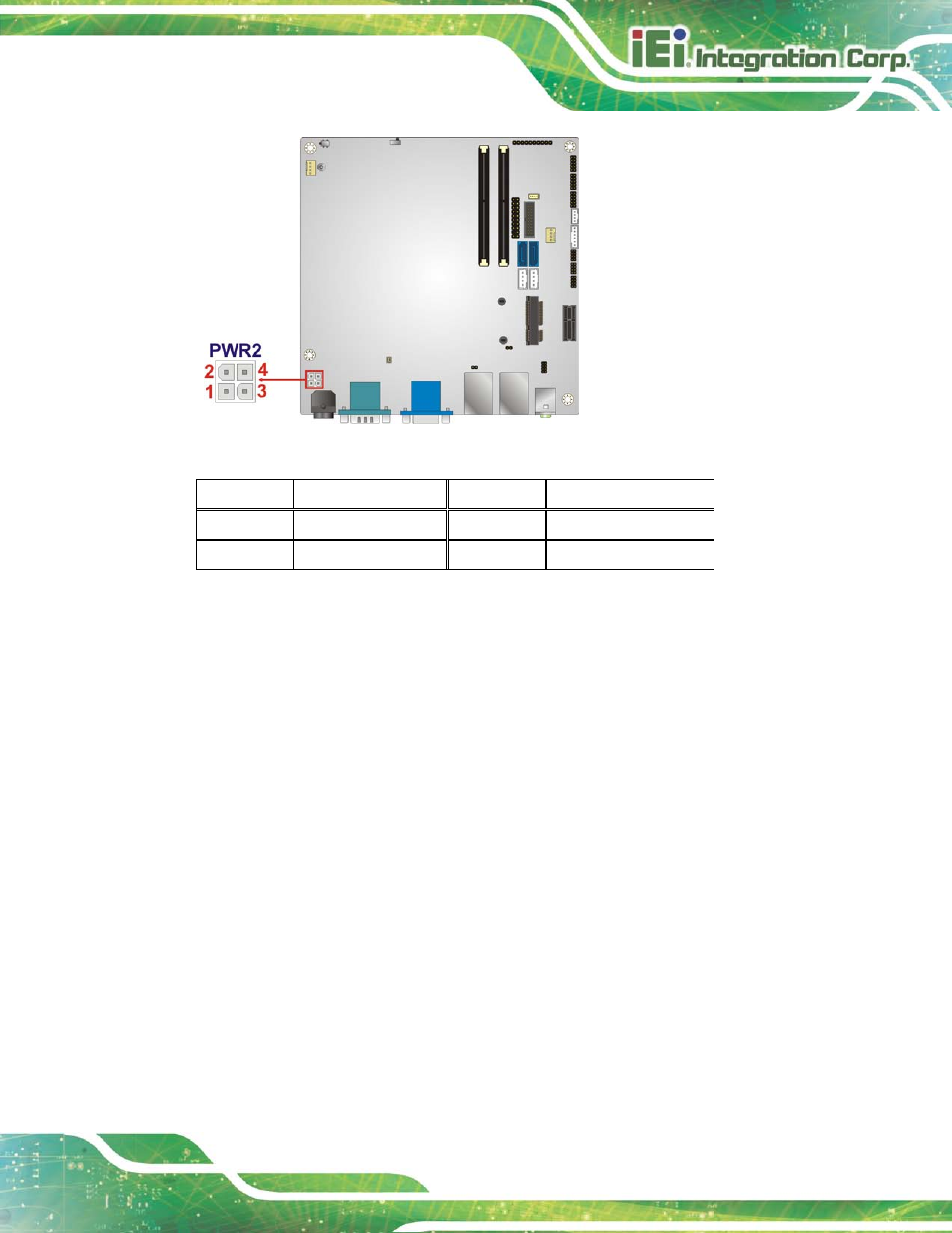

Figure 3-5: 12V DC-IN Power Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

GND

2

GND

3

+12V

4

+12V

Table 3-6: 12V DC-IN Power Connector Pinouts

3.2.5 DDR3 S O-DIMM S lo ts

CN La b e l:

CHA_DIMM1, CHB_DIMM1

CN Typ e :

DDR3 SO-DIMM slot

CN Lo c a tio n :

See Figure 3-6

The DDR3 SO-DIMM slots are for DDR3 SO-DIMM memory modules.
