KINO-DH810

P a g e 20

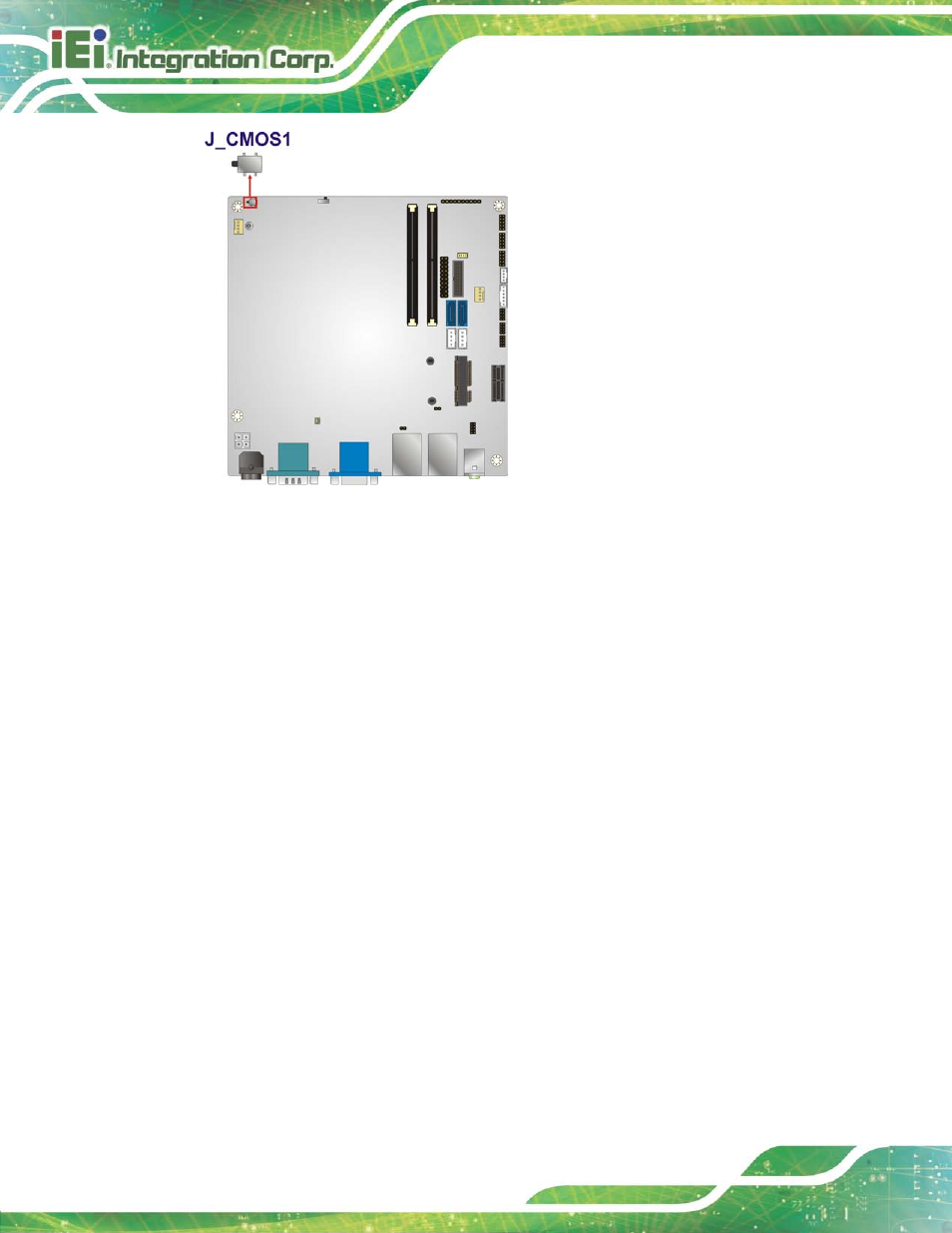

Figure 3-4: Clear CMOS Button Location

3.2.4 12V DC-IN P o we r Co n n e c to r

CN La b e l:

P WR2

CN Typ e :

4-pin Molex

CN Lo c a tio n :

See Figure 3-5

CN P in o u ts :

See Table 3-6

The connector supports the 12V power supply.
