To install the cooling kit, follow the instructions below.

S te p 1:

A cooling kit bracket is pre-installed on the rear of the motherboard. See Figure

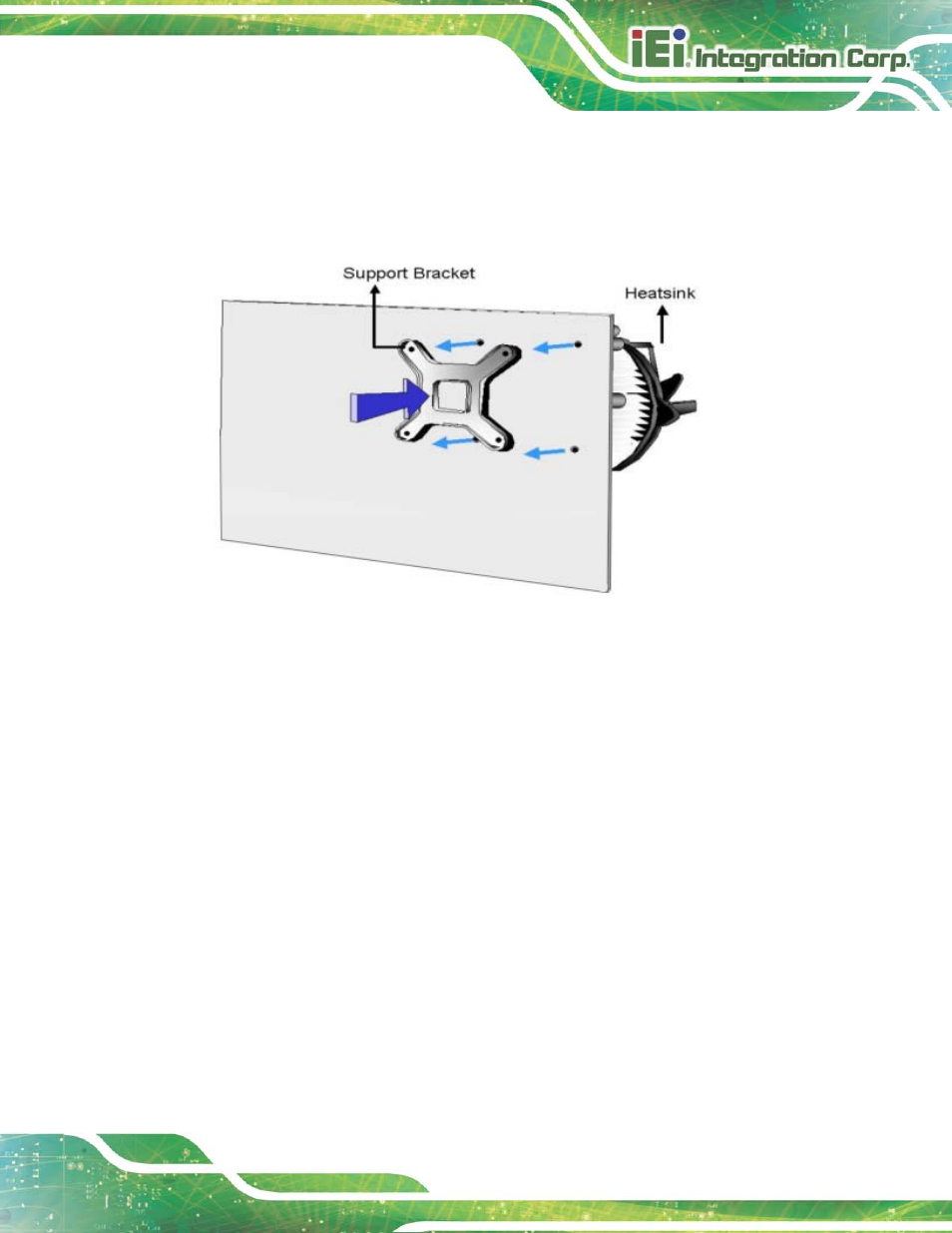

Figure 4-5: Cooling Kit Support Bracket

S te p 2:

Place the cooling kit onto the socket LGA1150 CPU. Make sure the CPU

cable can be properly routed when the cooling kit is installed.

S te p 3:

Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make

sure the four threaded screws on the corners of the cooling kit properly pass

through the holes of the cooling kit bracket.

S te p 4:

Secure the cooling kit by fastening the four retention screw of the cooling kit.

S te p 5:

Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the KINO-DH810. Carefully route the cable and avoid heat generating chips

and fan blades.

4.3.3 S O-DIMM In s ta lla tio n

To install a SO-DIMM, please follow the steps below and refer to Figure 4-6.
