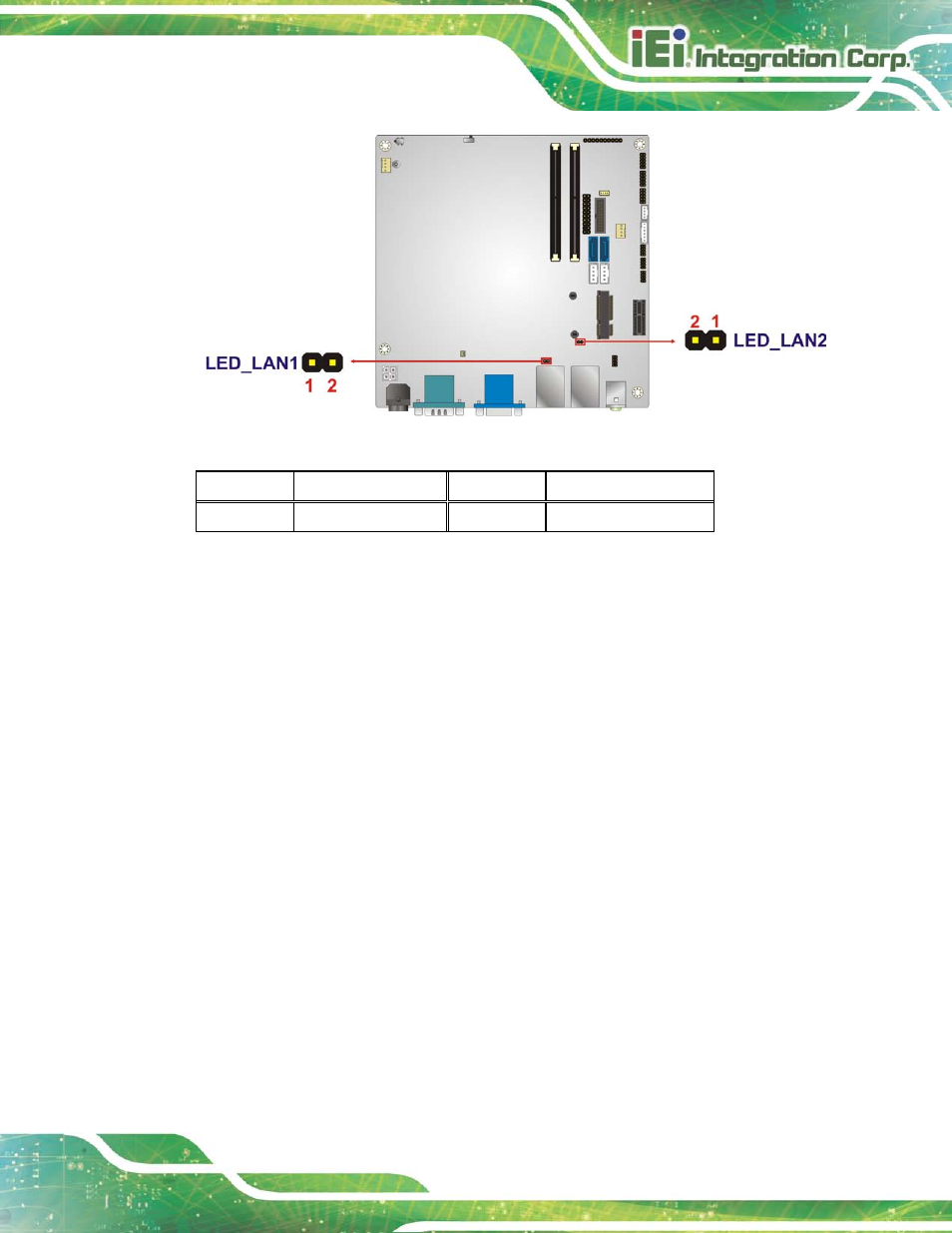

Figure 3-14: LAN LED Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3VLAN 2 LAN1/2_LED_LINK#
Table 3-14: LAN LED Connector Pinouts
3.2.14 P CIe x1 S lo t
CN La b e l: P CIEX1_1
CN Typ e : PCIe x1 slot
CN Lo c a tio n : See Figure 3-15
The PCIe x1 slot is for PCIe x1 expansion cards.
