KINO-DH810

P a g e 38

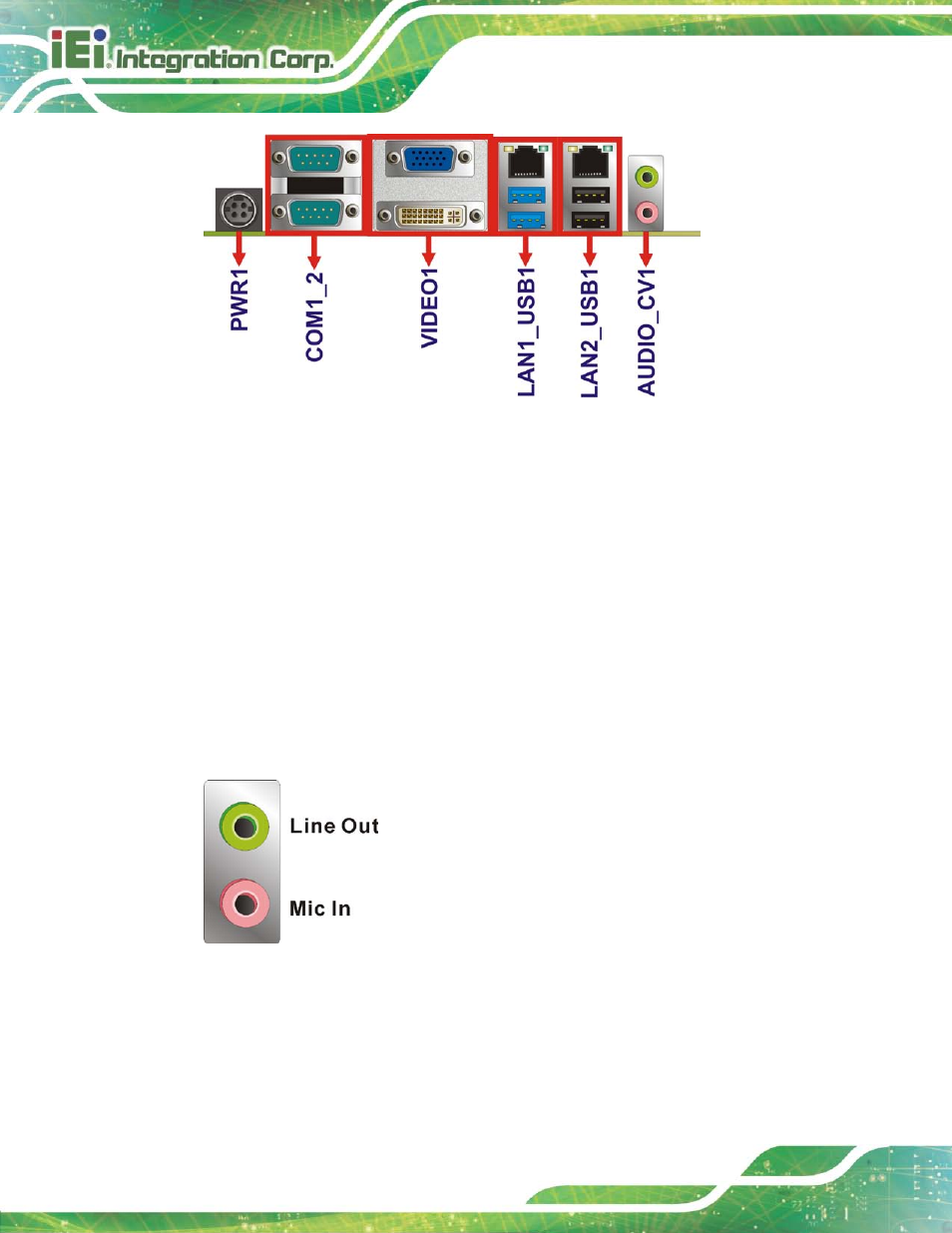

Figure 3-25: KINO-DH810 External Peripheral Interface Connector

3.3.1 Au d io Co n n e c to r

CN La b e l:

AUDIO_CV1

CN Typ e :

Audio jack

CN Lo c a tio n :

See Figure 3-25

The audio jacks connect to external audio devices.

 Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

 Microphone (Pink): Connects to a microphone.

Figure 3-26: Audio Connector

3.3.2 Eth e rn e t a n d US B Co n n e c to rs

CN La b e l:

LAN1_USB1, LAN2_USB1
