KINO-DH810

P a g e 25

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

3

FANIO1

4

FANOUT1

Table 3-9: CPU Fan Connector Pinouts

3.2.9 Fa n Co n n e c to r (S ys te m )

CN La b e l:

S YS _FAN1

CN Typ e :

4-pin wafer

CN Lo c a tio n :

See Figure 3-10

CN P in o u ts :

See Table 3-10

The fan connector connects to a system cooling fan.

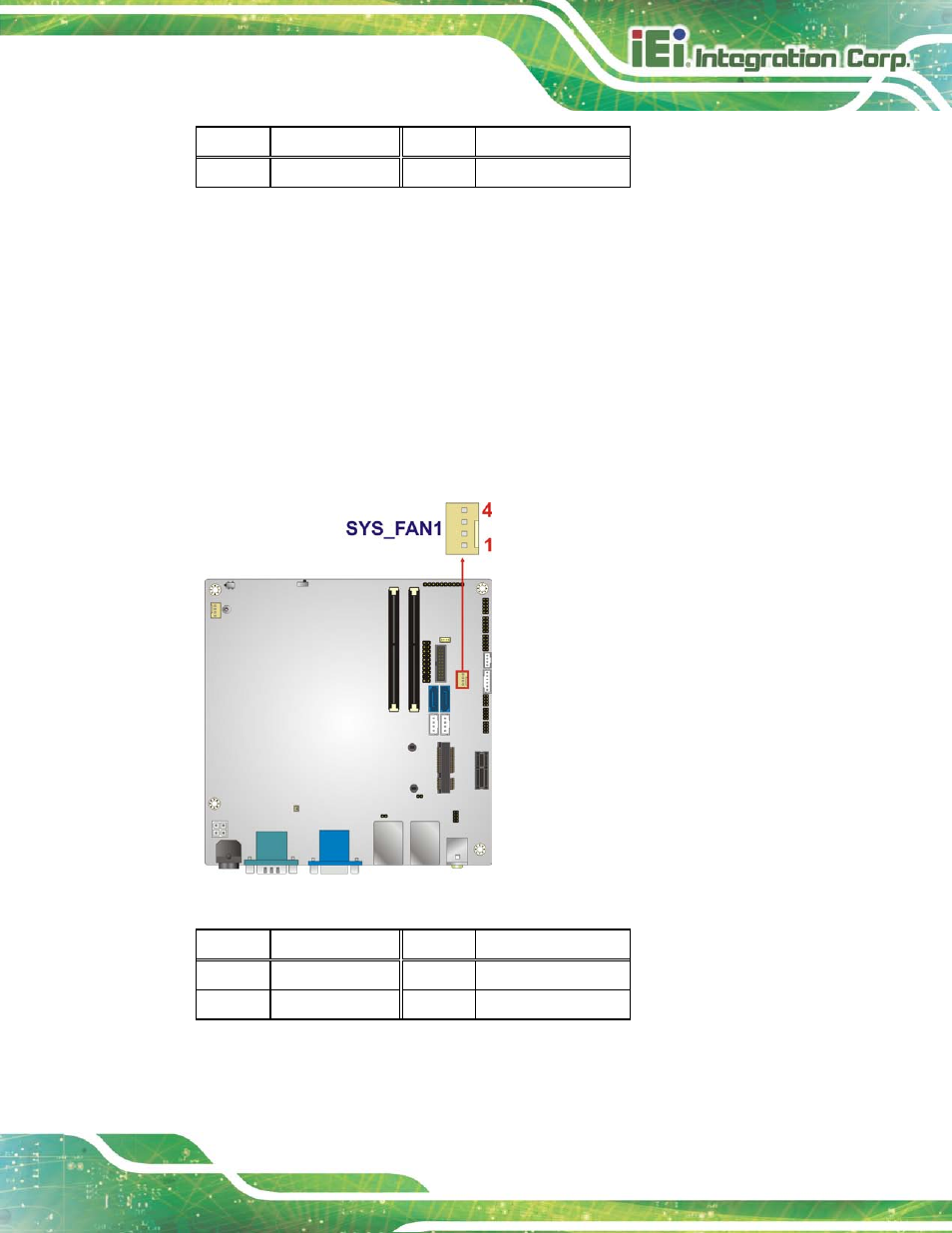

Figure 3-10: System Fan Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

+12V

3

FANIO2

4

FANOUT2

Table 3-10: System Fan Connector Pinouts
