KINO-DH810
P a g e 30

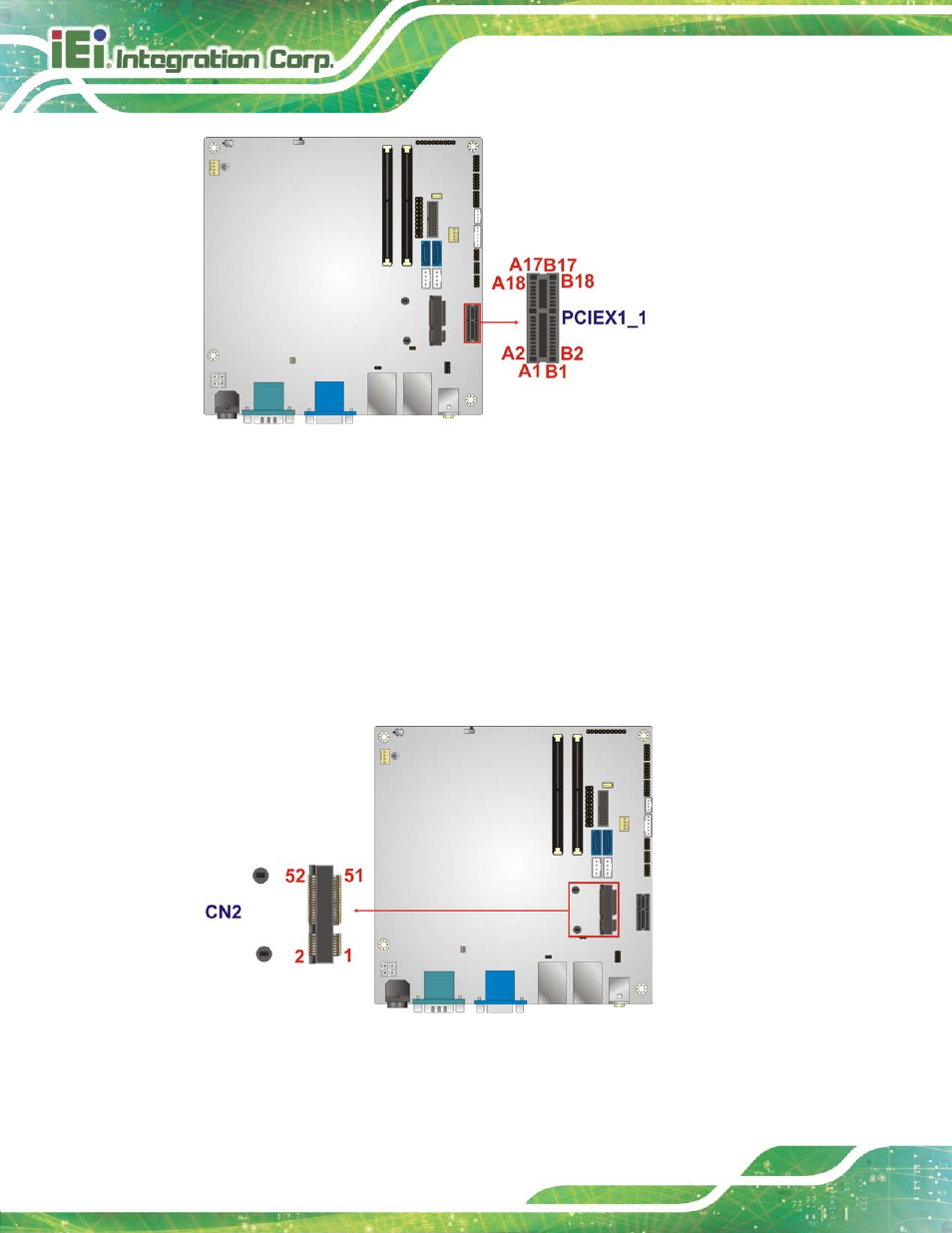

Figure 3-15: PCIe x1 Slot Location
3.2.15 P CIe Min i Ca rd S lo t
CN La b e l: CN2
CN Typ e : PCIe Mini card slot
CN Lo c a tio n : See Figure 3-16
The PCIe Mini card slot is for installing a PCIe Mini expansion card.
Figure 3-16: PCIe Mini Card Slot Location
