KINO-DH810

P a g e 32

Figure 3-18: SATA 6Gb/s Drive Connector Locations

3.2.18 S ATA P o we r Co n n e c to rs

CN La b e l:

S ATA_P WR1, S ATA_P WR2

CN Typ e :

4-pin wafer

CN Lo c a tio n :

See Figure 3-19

CN P in o u ts :

See Table 3-15

Use the SATA Power Connector to connect to SATA device power connections.

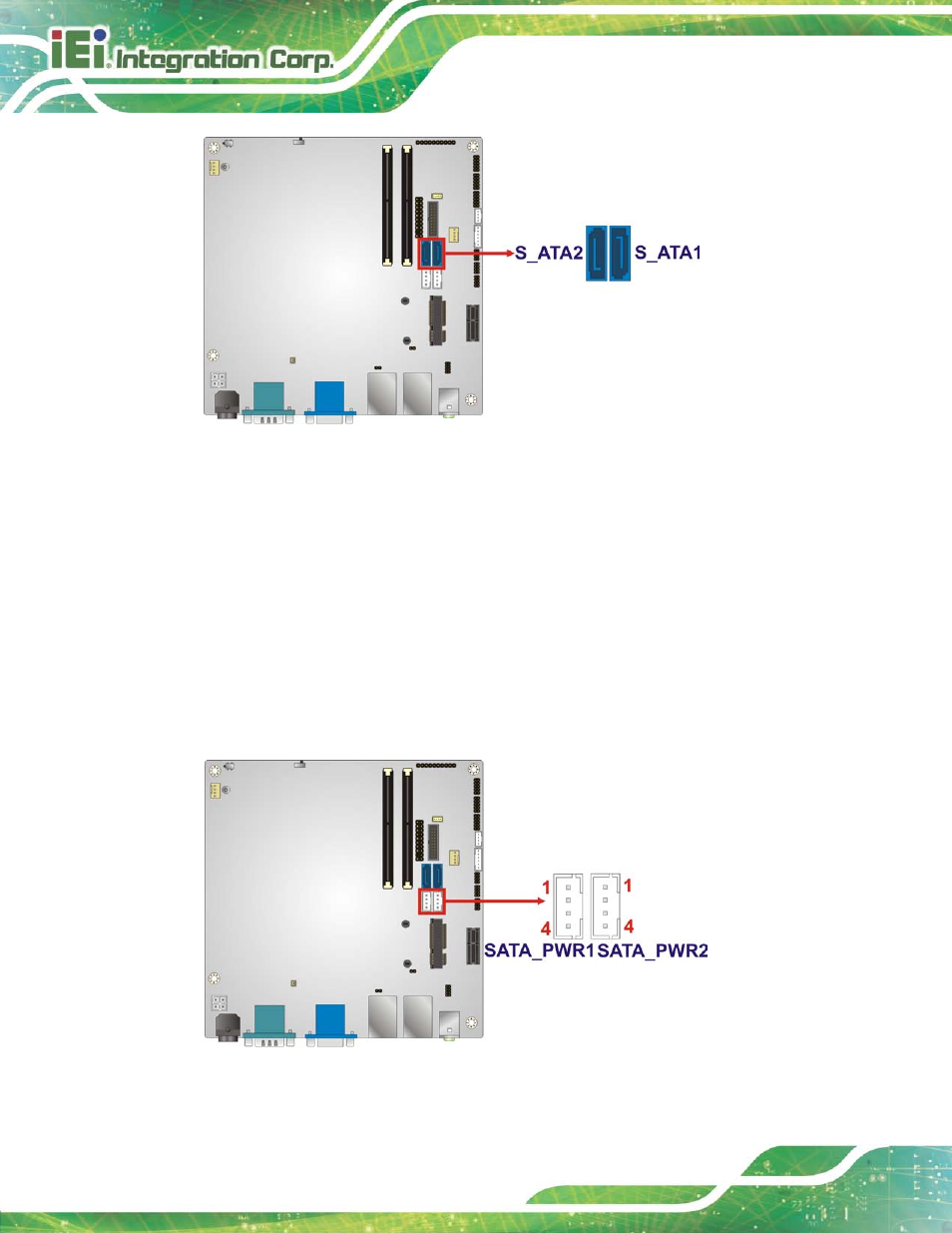

Figure 3-19: SATA Power Connector Locations
