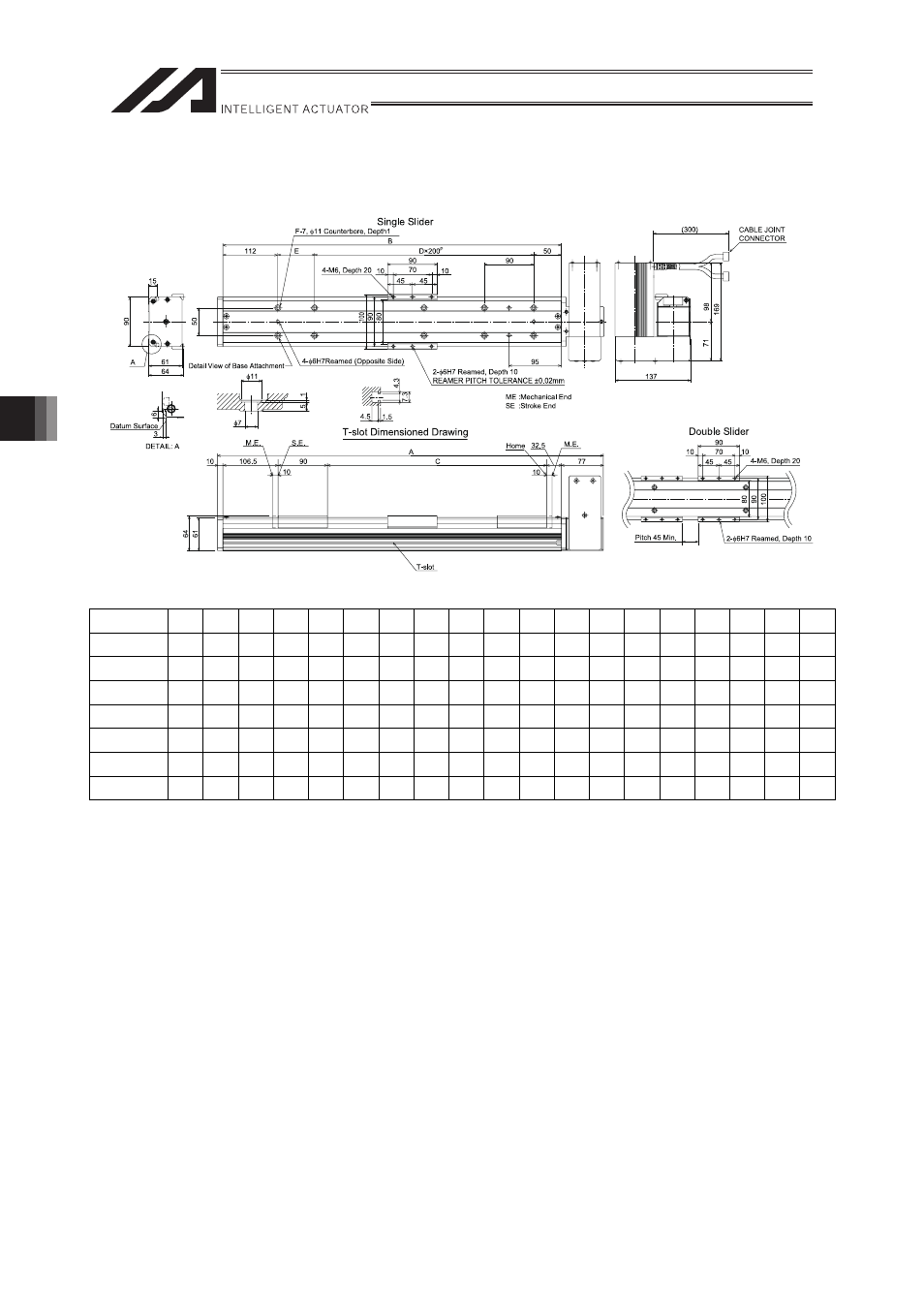

6. External Dimensions
62
6.2 IF-SA-100
Stroke 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
A 516 616 716 816 916 1016 1116 1216 1316 1416 1516 1616 1716 1816 1916 2016 2116 2216 2316
B 429 529 629 729 829 929 1029 1129 1229 1329 1429 1529 1629 1729 1829 1929 2029 2129 2229
C 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
D 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10
E 67 167 67 167 67 167 67 167 67 167 67 167 67 167 67 167 67 167 67
F 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26
Weight [kg] 4.6 5.1 5.6 6.1 6.6 7.0 7.5 8.0 8.5 9.0 9.4 9.9 10.4 10.9 11.4 11.8 12.3 12.8 13.3
