5. Maintenance inspection
59

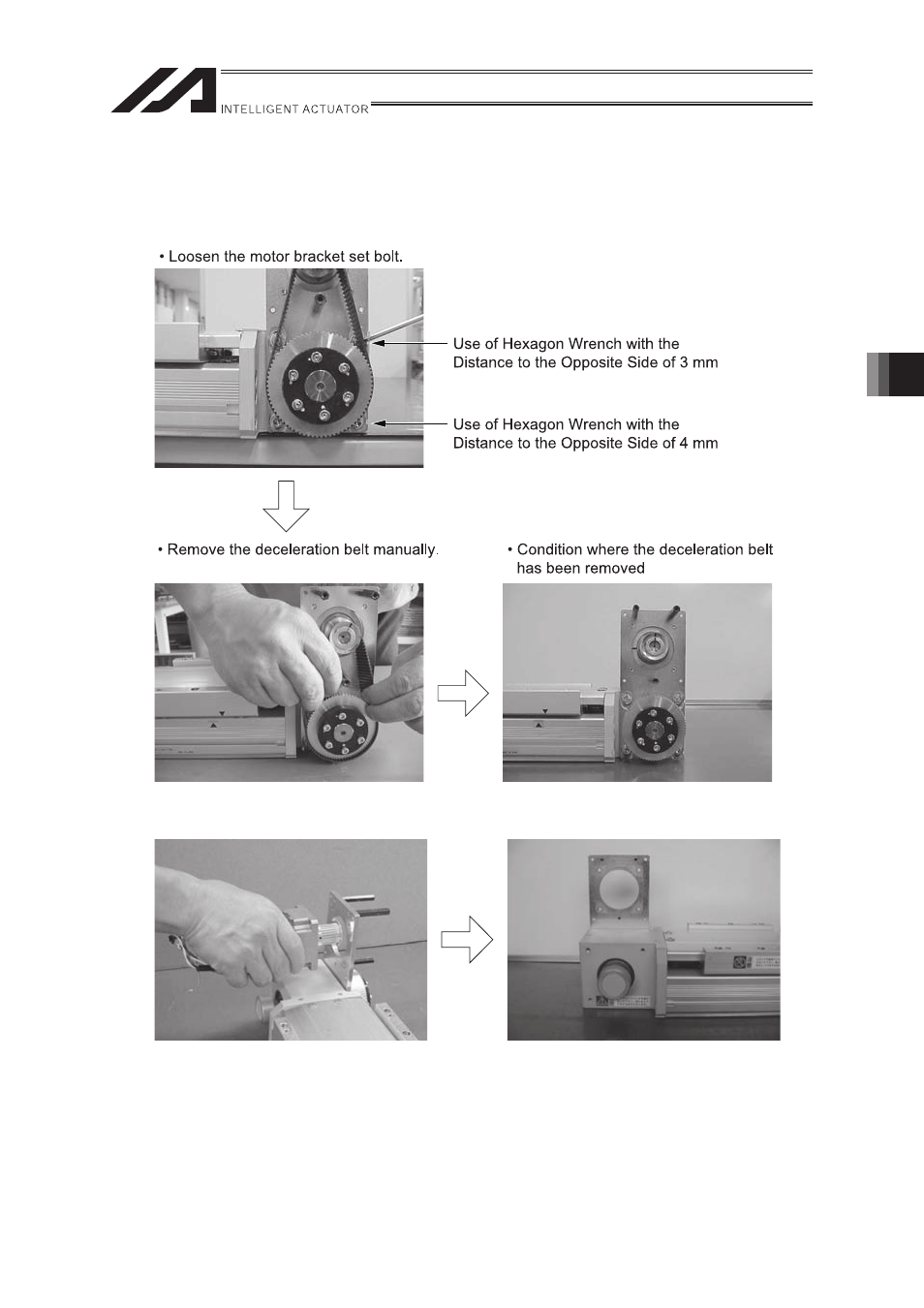

5) Loosen the bolt fixing the motor bracket using the hexagon wrenches with the distance to
the opposite side of 3 mm and 4 mm). Then, slide the belt.
Then, the deceleration belt tension is loosened. Remove the deceleration belt from the
pulley on the actuator side.
6) Remove the motor.
