2. Installation
34

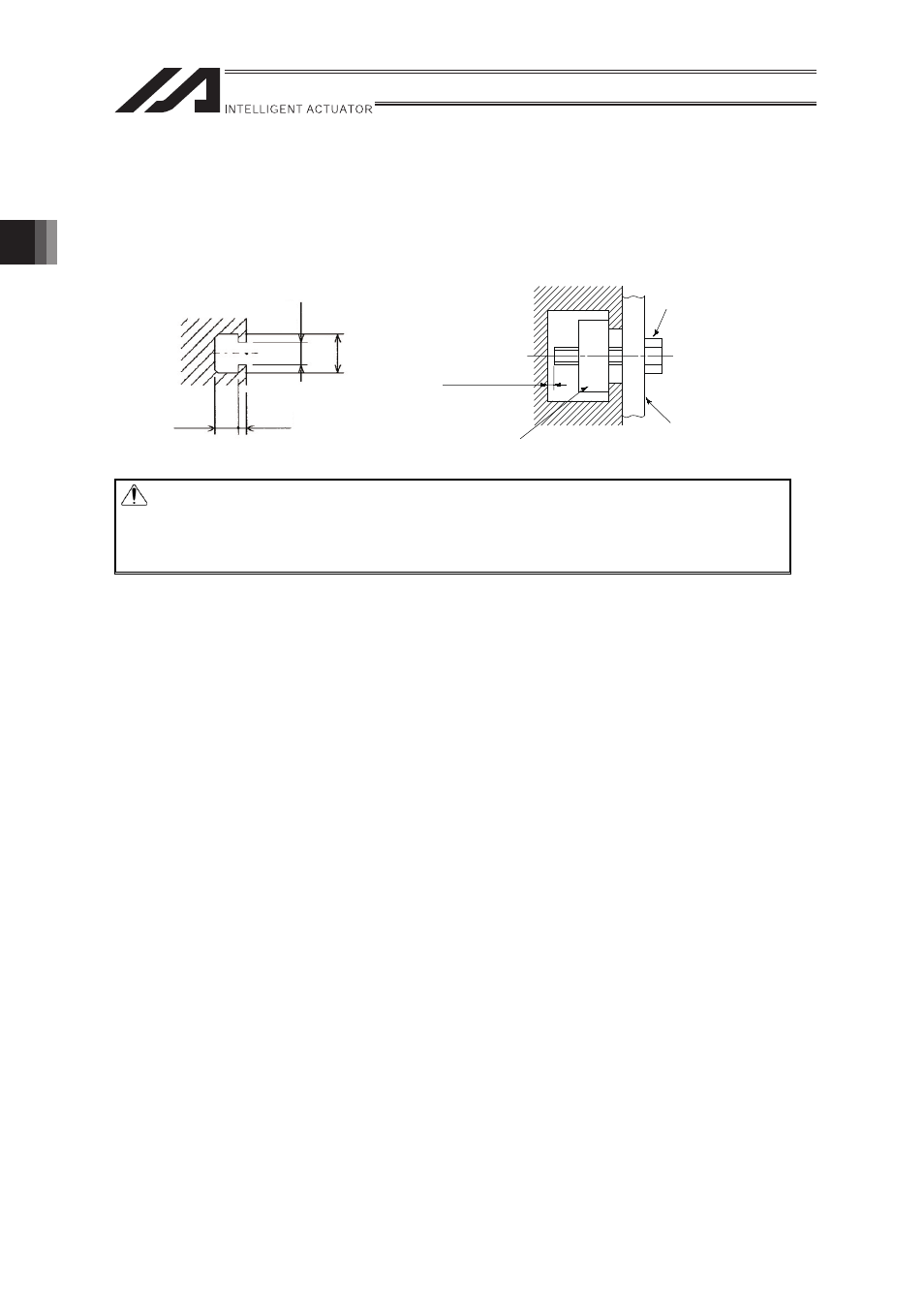

[3] Mounting and the T-Slot (Option)
There is a T-groove on the side surface of the base provided to mount a connector box or
cable track retainer that is necessary when assembling the system.
When using the cable wiring kit for assembly, utilize the T-groove for mounting.
Use the slots as necessary to mount sensors or to anchor cables.
4.5
7.3
4.3
1.5
Space between
bolt tip
Square head nut
(or Hexagon nut)
Bolt
Mounting part
Caution : x We recommend a square nut for the T-slot but you can also use a
hexagonal nut.
x
When mounting, check the bolt length to make sure the end does not touch
the bottom of the T-slot.
