1. Specifications Check
14

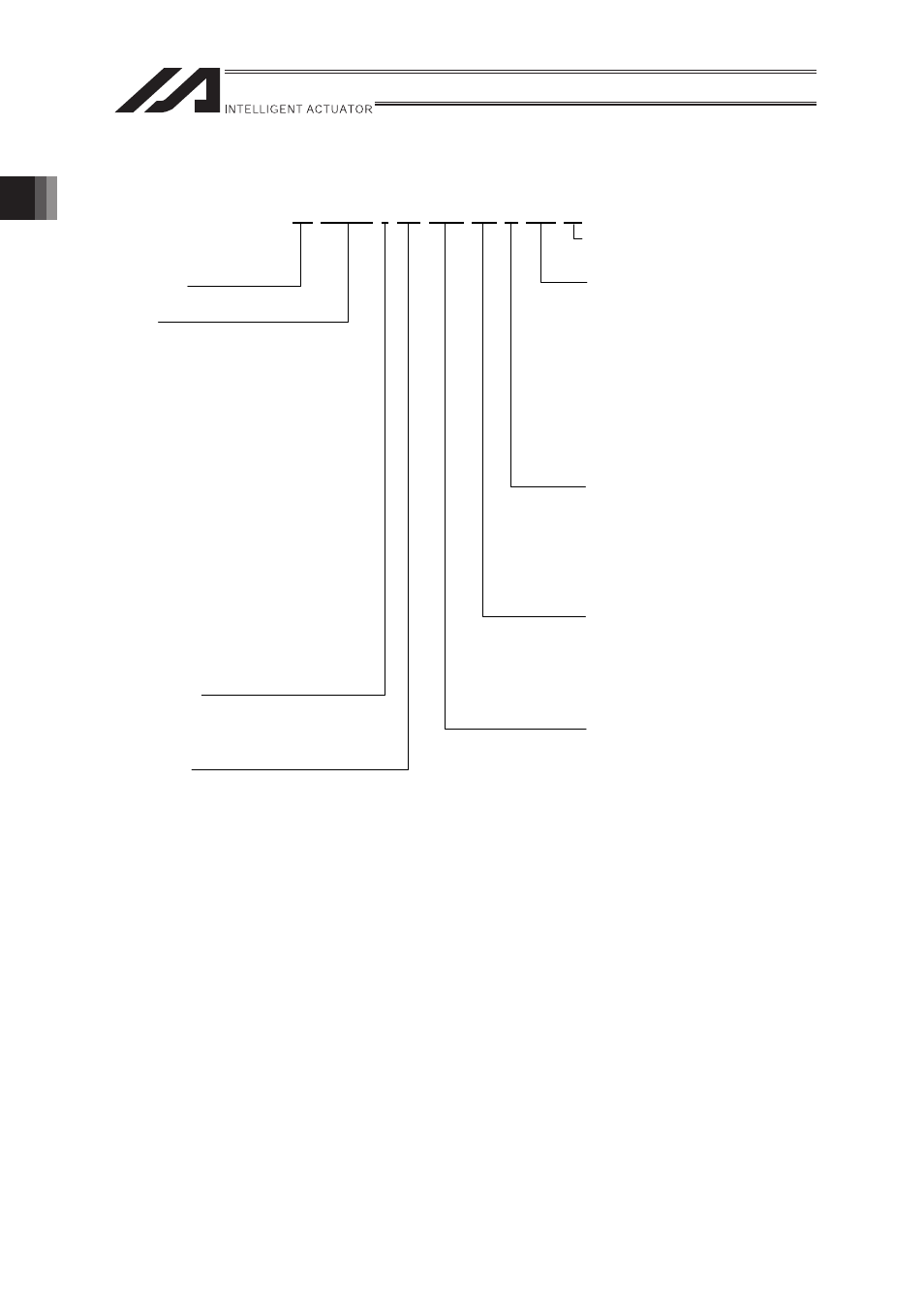

1.1.4 How to read the model No.
Note 1 Identification for IAI use only: This may be marked for the purpose of IAI. It is not an ID to describe
the model code.
I F - S A 1 L - I - 6 0 - 2 0 0 - T 1 - S - A Q - * *
AQ : AQ Seal
C : Creep sensor
(CL : Located on the Other Side)
L : Home Limit Switch
(LL : Located on the Other Side)
NM : Reversed-home type
RT : Guide with Ball Retainer
Mechanism
W : W Slider
N : None
S : 3m
M : 5m
XƑƑ : Specified Length
(Example: X07=7m)
T1 : XSEL-J/K
T2 : SCON
SSEL
XSEL-P/Q
[Refer to 1.2 Specification.]
Series Name
SA1L : Small, Standard
SA2L : Small, Motor Located on the Side
SA3L : Small, Motor Located on the Bottom
SA1R : Small, Motor on the Other Side
SA2R : Small,
Motor Horizontally Located on the Other
Side
SA3R : Small,
Motor Located on Bottom on the Other Side
MA1L : Medium, Standard
MA2L : Medium, Motor Located on the Side
MA3L : Medium, Motor Located on the Bottom
MA1R : Medium, Motor on the Other Side
MA2R : Medium,
Motor Horizontally Located on the Other
Side
MA3R : Medium,
Motor Located on Bottom on the Other Side
A : Absolute
I : Incremental
Identification for IAI use only Note 1
