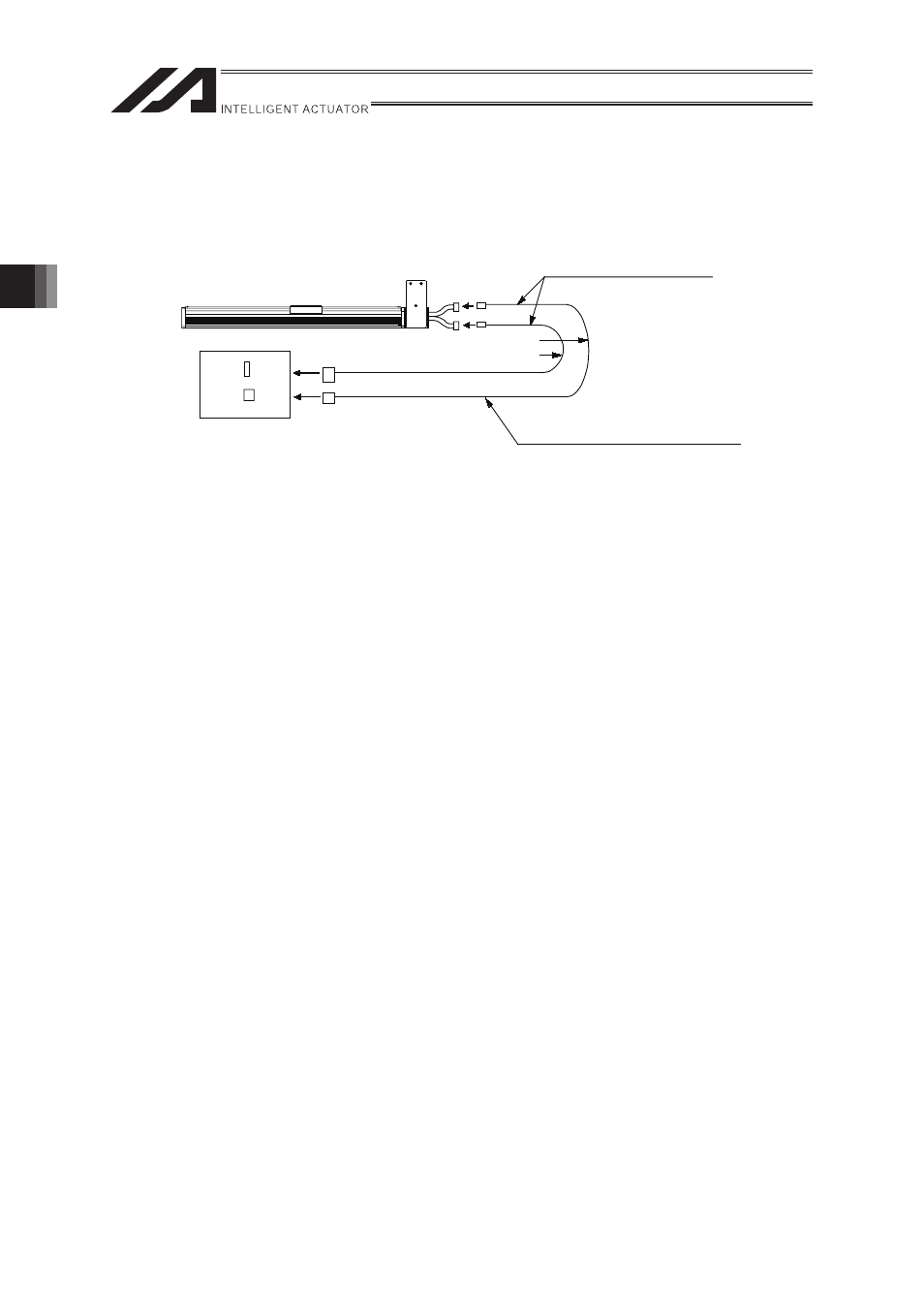

[2] CE Compliance Cable
[Connection to the XSEL-P/Q, SSEL and SCON controller]
Actuator
Dedicated Controller
XSEL-P/Q, SSEL, SCON
r=58mm or more (Movable Use)
r=38mm or more (Fixed Use)
r
r
Dedicated Cable
(Connect actuator with
the dedicated controller)
x
Motor Cable B-XEU-MAƑƑƑ
x
Encoder Cable CB-XEU1-PAƑƑƑ
x
Encoder Cable with LS CB-XEU1-PLAƑƑƑ
ƑƑƑ
shows the cable length.
The max. length should be 30m.
Example) 080=8m
