2. Installation
30
2.3.2 Installation
[1] Installation of Main Unit
(1) Datum Surface
x
The mounting table should have sufficient rigidity to avoid generating vibration.
x
The surface where the actuator will be mounted should be a machined surface or that with
an accuracy equivalent to it, and the flatness should be 0.05mm or below.
x
Have enough space for the maintenance work.
x

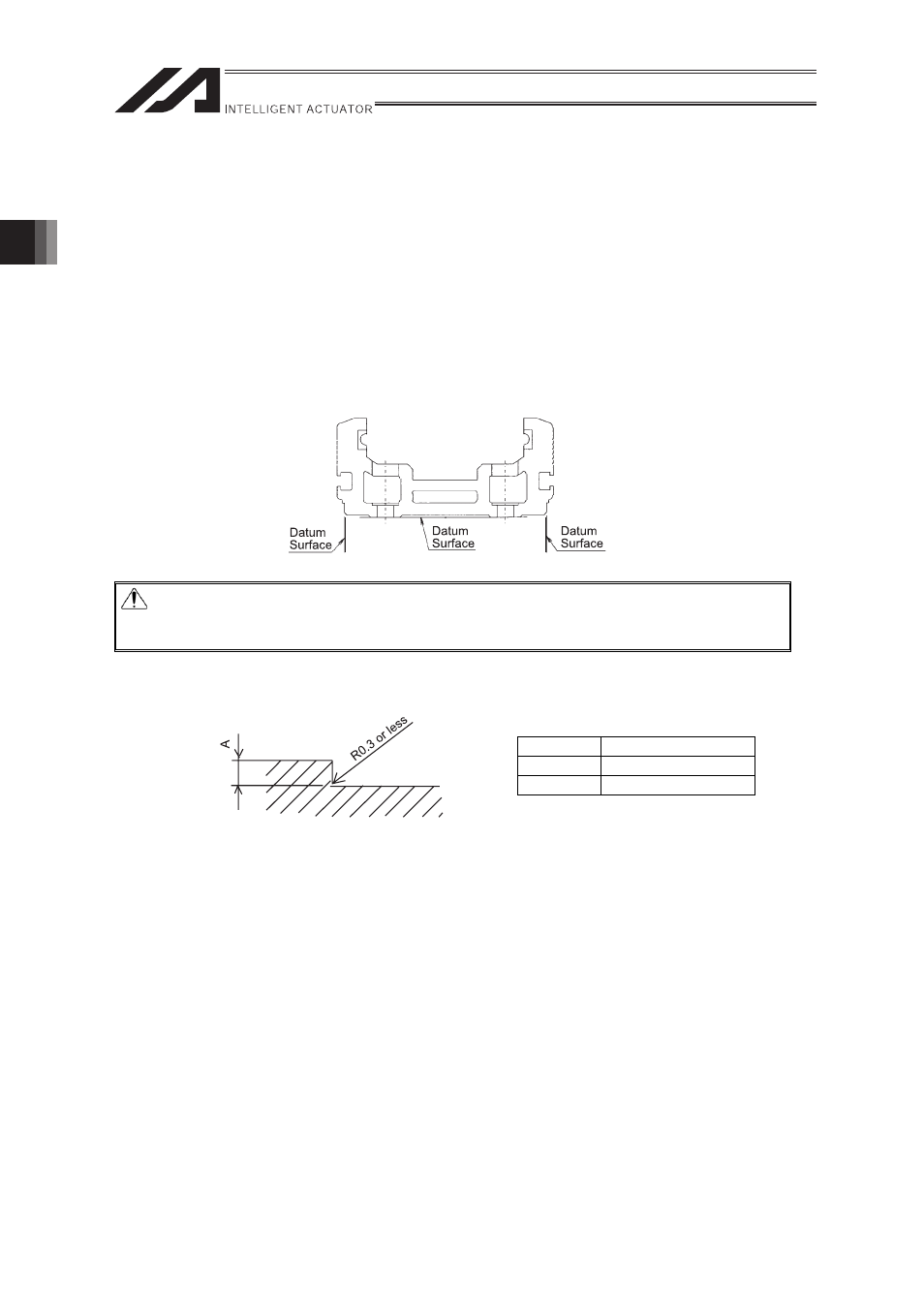

The side and bottom surfaces of the base on the actuator work as the datum surfaces for
the side of the slider
x
Use these surfaces as the datum surfaces for mounting.
Caution: As shown in the figure above, the surfaces on the base sides are datum
surfaces for the slider movement. Utilize these faces when accuracy is
required to the operation.
Please follow the diagrams below for machining to mount on to the frame using the base
surface:
Model A Dimension [mm]
S Type 2 to 5
M Type 2 to 5
