1. Specifications Check
18
1.4 Motor • Encoder Cables
1.4.1 Standard
The cables are in common for the actuators no matter the model type. The cables differ
depending on the corresponding controller.
Table for Controller and Applicable Motor • Encoder Cable
Controller XSEL-J/K XSEL-P/Q SSEL SCON
LS
Without
LS
With LS Without
LS
With LS
Without
LS
With LS
Without
LS
With LS
Applicable
Cable
1), 2) 1), 2), 3) 1), 4) 1), 5) 1), 4) 1), 5) 1), 4) 1), 5)

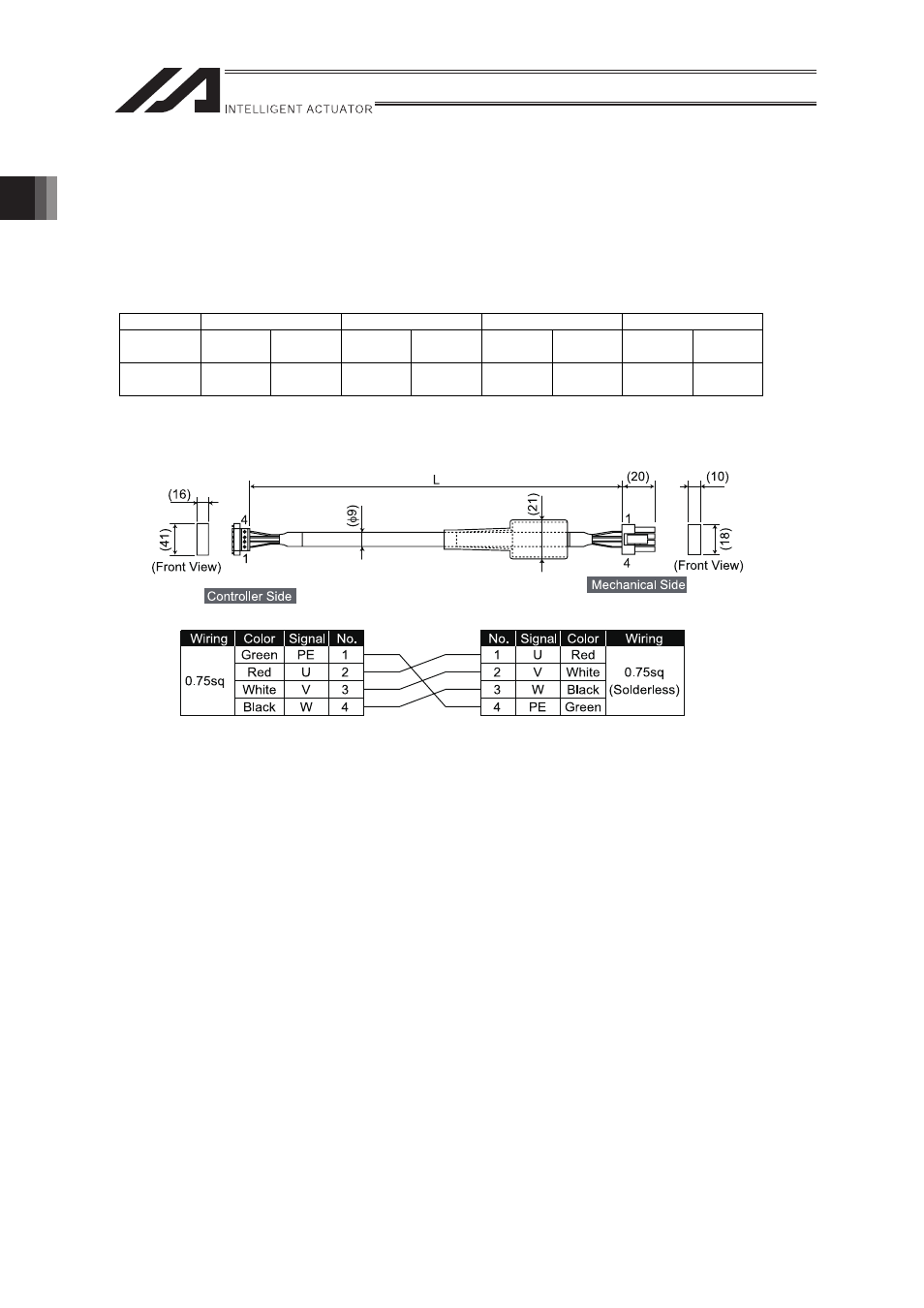

1) Motor Cable CB-X-MAƑƑƑ
Enter the cable length (L) in ƑƑƑ (up to 30 m)
Example) 080=8m
[Minimum Bending Radius]
When used under moving condition : 51mm
When used in fixed condition : 34mm
