7. How to use the home mark
54

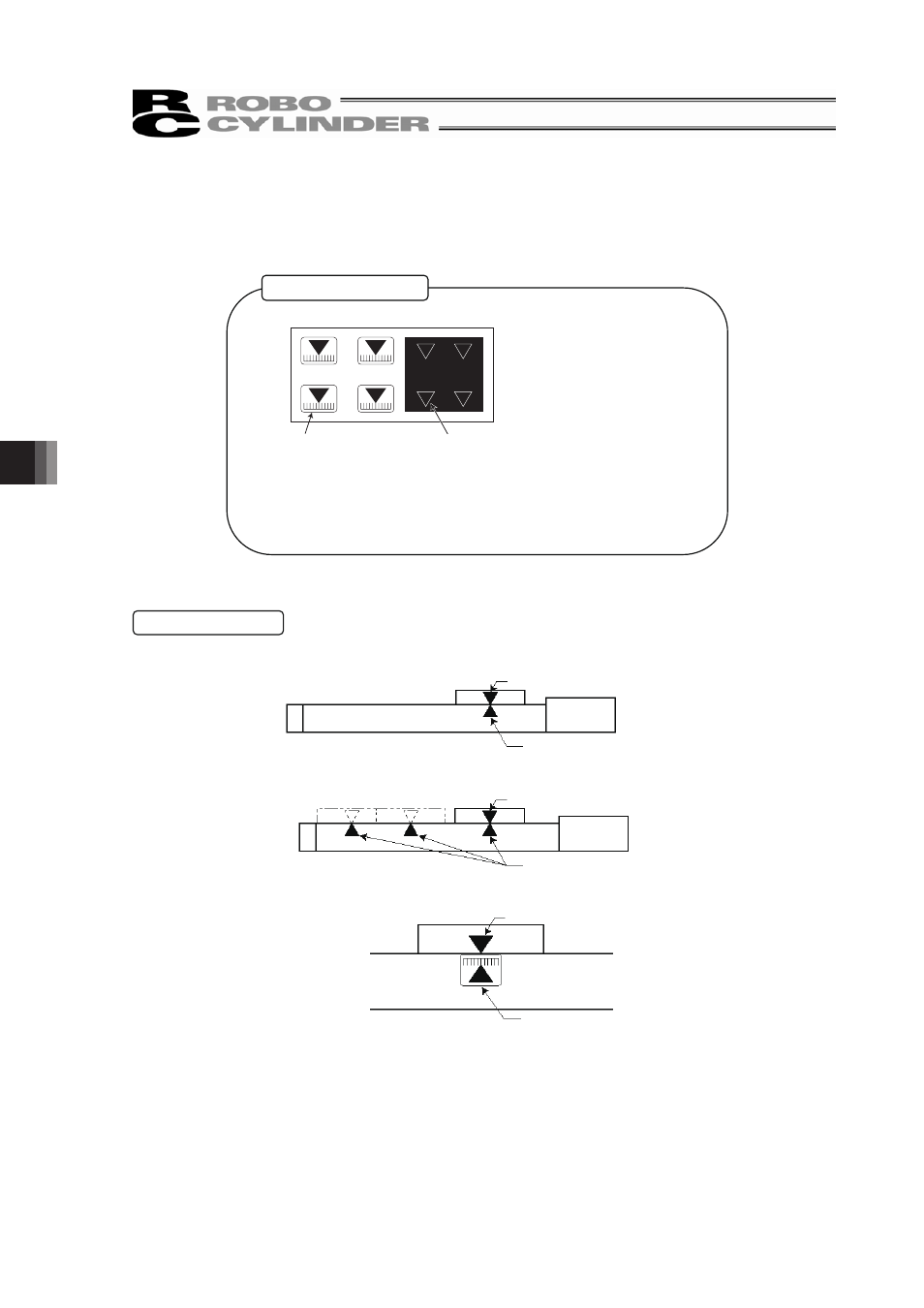

7. How to use the home mark
As necessary, affix these marks to the product to mark the home position of the actuator.
Home mark sticker
Home mark scale × 4 Home mark × 4
(Scale: 1 mm graduation mark, 10 mm width)
• Peel off the marks from the base sheet.
Note 1. Every mark has sticky back.
2. Remove smear and stain from the surface.
3. Avoid label or nameplate as a marking location.
Contents of sticker
× 1 sheet
Example of Use
1) Used to indicate the direction of actuator home
On the slider
On the base near home position
Motor
2) Used as stop positions
Motor
On the slider
At stop positions on the base
3) Used for position deviation check
On the base
On the slider
• Place the marks when the actuator is stopped at home position.
