2.3.2 Installing the Main Body
x Make sure the platform to install the actuator possesses a structure with sufficient stiffness,
so vibration would not be generated.
x The surface where the actuator will be mounted should be a machined surface or that with
an accuracy equivalent to it, and the flatness should be 0.05mm/m or below.
x Have enough space for the maintenance work.

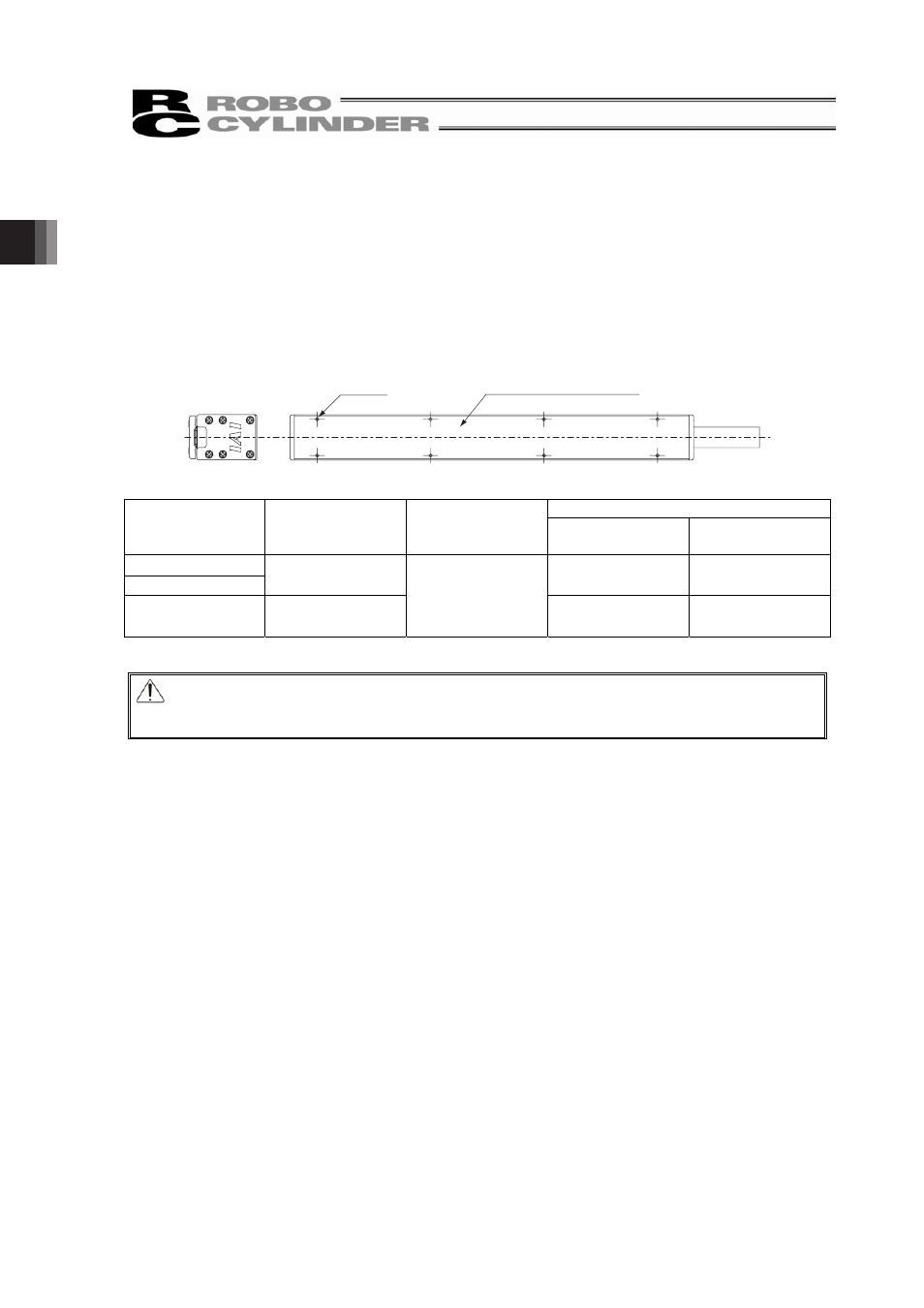

[1] Slim Type
Tap Base seating surface
Recommended screw torque
Type
Tapped holes
diameter
Effective thread
depth
Seating surface :
Copper
Seating surface :
Aluminum
SA1L
SA2L
M2
42.4N㨯cm
(4.32kgf㨯cm)
25.4N㨯cm
(2.59kgf㨯cm)
SA3L M3
4mm
154N㨯cm
(15.8kgf㨯cm)
83N㨯cm
(8.47kgf㨯cm)
Caution: Select a screw length that suits to the effective thread depth. In case that an
insufficient screw is used, it may cause damage on the tapped holes or insufficiency
in the strength.
