2. Installation
27

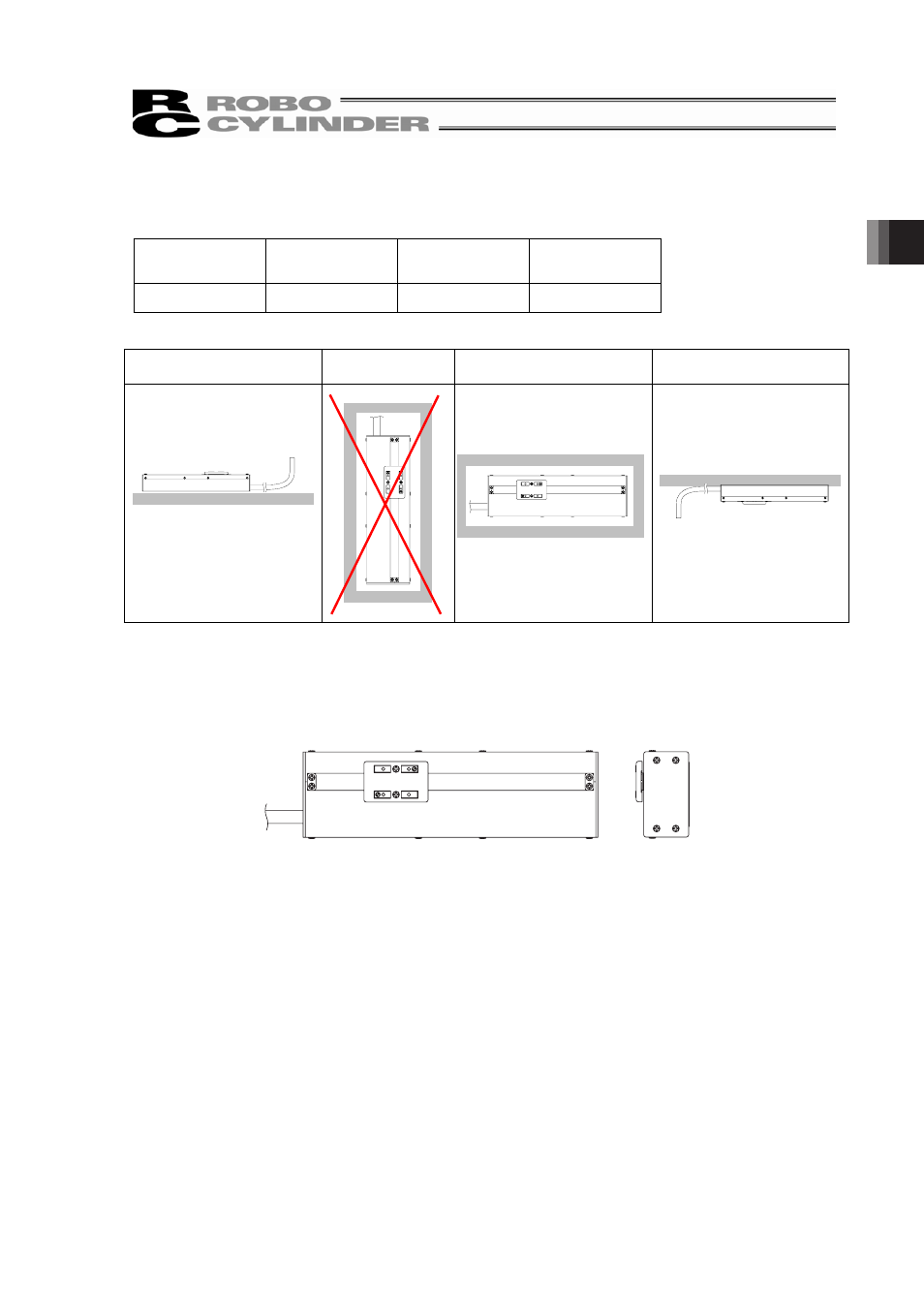

[2] Long Stroke Type
SA4L, SA5L, SA6L
SM4L, SM5L, SM6L
{
: Possible U : With condition in installation orientation
(Note 1)
u
: Not possible
Horizontal
installation
Vertical
installation
Sideway
installation
Ceiling mount
installation
{
u
U
{
Installation Orientation
Horizontal
Vertical
Sideway
Ceiling mount
Note 1 For horizontally oriented wall mount, set the slider side up as shown below.
