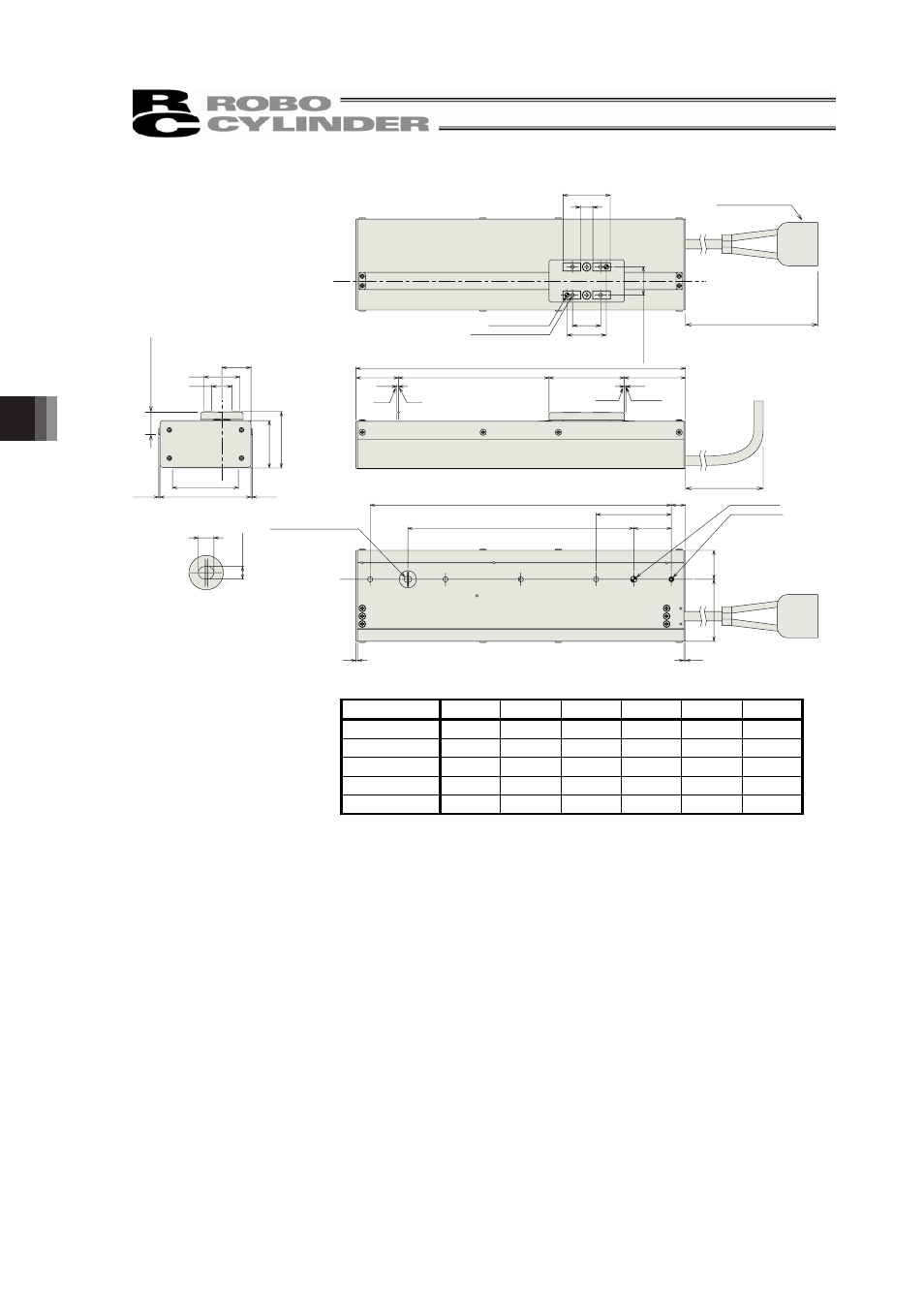

6. External Dimensions
50
6.2.3 SA6L
30
8
2-φ3H7 depth 3.5
4-M3 depth 5 (through)
18
25 ± 0.02
L
Stroke 48 27
Home
39
M.E.
φ4H7 depth 4 9
48
C 24
B-M4 depth 5
A × 48 P
18.5
39.5
1
D
18.5
36
58
5
23
13
4H7
0 +0.012
1
S.E.
18
20.7
M.E. Ma Moment datum point for offset
(0.8) (0.8)
(42)
(30.3)
Detail D
Oblong Hole, depth 4 (D)
M.E.
S.E. : Stroke End
: Mechanical end
(1)
(300)
(1)
(Stroke+114)
Secure at least 100
(Reamer pitch tolerance ±0.02)
Cable joint connector
Stroke 48 96 144 192 240 288
L 162 210 258 306 354 402
A 3 4 5 6 7 8
B 4 5 6 7 8 9
C 96 144 192 240 288 336
Weight [kg] 0.67 0.8 0.93 1.07 1.2 1.34
