9
11. This Actuator Requires a Home-Return Operation after Startup.䎃
For Slim Types (SA1L, SA2L and SA3L), the home position is one point in the center of the main
body.(Can not be changed.)
For Long Stroke Types (SA4L, SA5L, SA6L, SM4L, SM5L and SM6L), the home position is on
the rear side in standard. For Single Slider Types (SA4L, SA5L and SA6L), home reversed type
can also be selected.䎃
䎃
12. Handle the stainless steel sheet with special care.䎃
If a viscous liquid such as glue or paint is applied on the stainless steel sheet, it may cause an
operation error of the slider or damage on the sheet. Also the stainless steel sheet will get
deformed with force applied in spot, which may cause defectiveness. Do not attempt to grab or
hold the stainless sheet while in installation or transportation.䎃
䎃
13. You may hear rattle noise from inside of the actuator during the operation.䎃
This noise is caused due to the movement of magnet moving inside by the influence of magnetic
force, and it is not any defect.䎃
䎃
14. Avoid using the magnetic body in the ambient with dust or metal powder. Also
avoid using for a purpose that magnetism causes any problem.䎃
Long Stroke Types (SA4L, SA5L, SA6L, SM4L, SM5L and SM6L) are equipped with a high
performance rare earth permanent magnet (neodymium magnet) that possesses very strong
magnetic field inside. Therefore, the appearance surface of the actuator body also possesses a
high magnetic force. 䎃
䎃

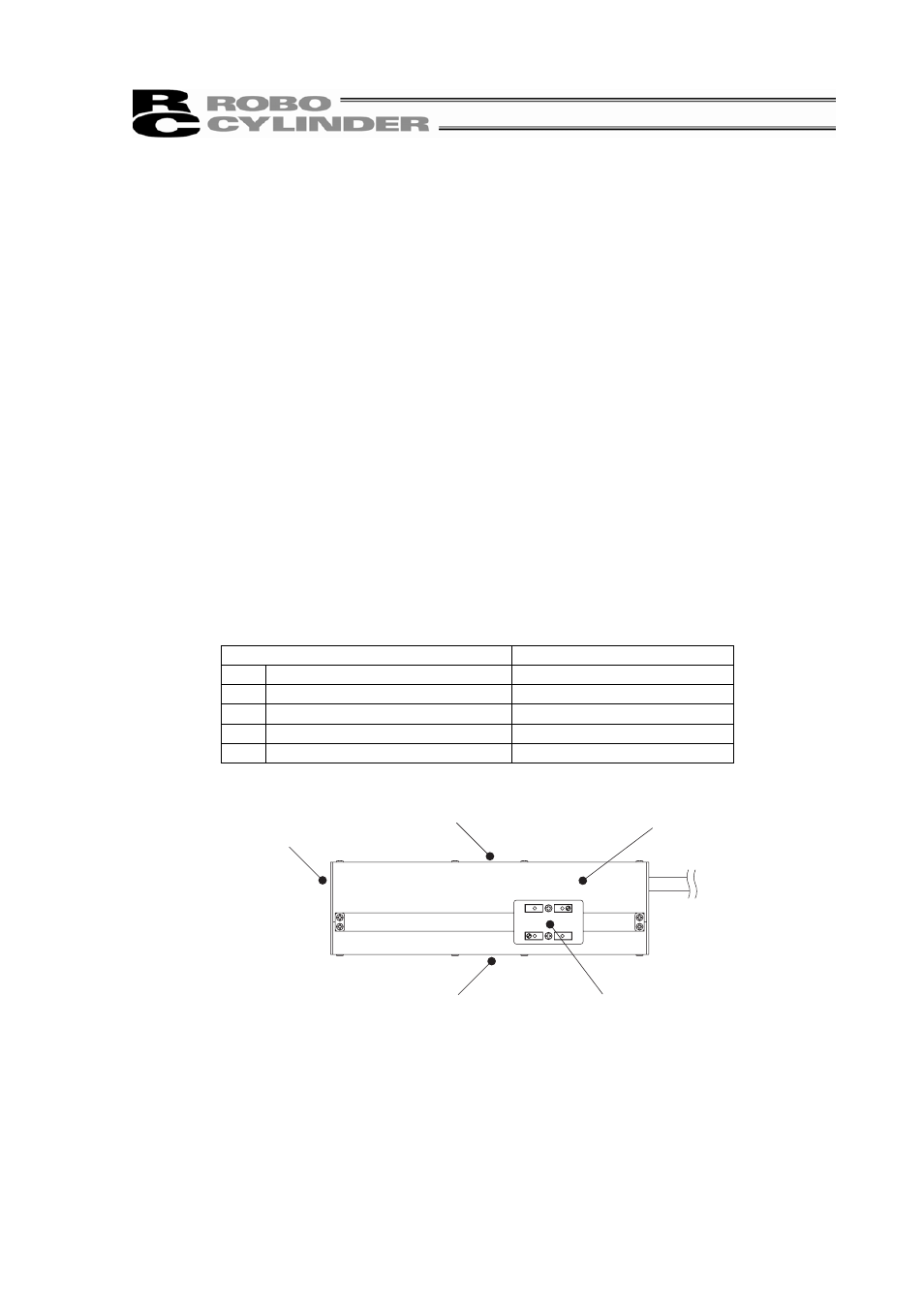

Leaked Magnetic Flux Density on each Part of Actuator䎃 (Reference value)䎃
Point Magnetic flux density䎃 [mT]䎃
1) Slider top surface 10
2) Side cover top surface 50 to 60
3) Main body side surface (top) 50 to 60
4) Main body side surface (bottom) 1 to 3
5) End cover surface 60 to 100
䎃
䎃
5)
3) 2)
1) 4)
