1. Specifications Check
14
1.1.3 How to Read the Model Nameplate
1.1.4 How to Read the Model Number

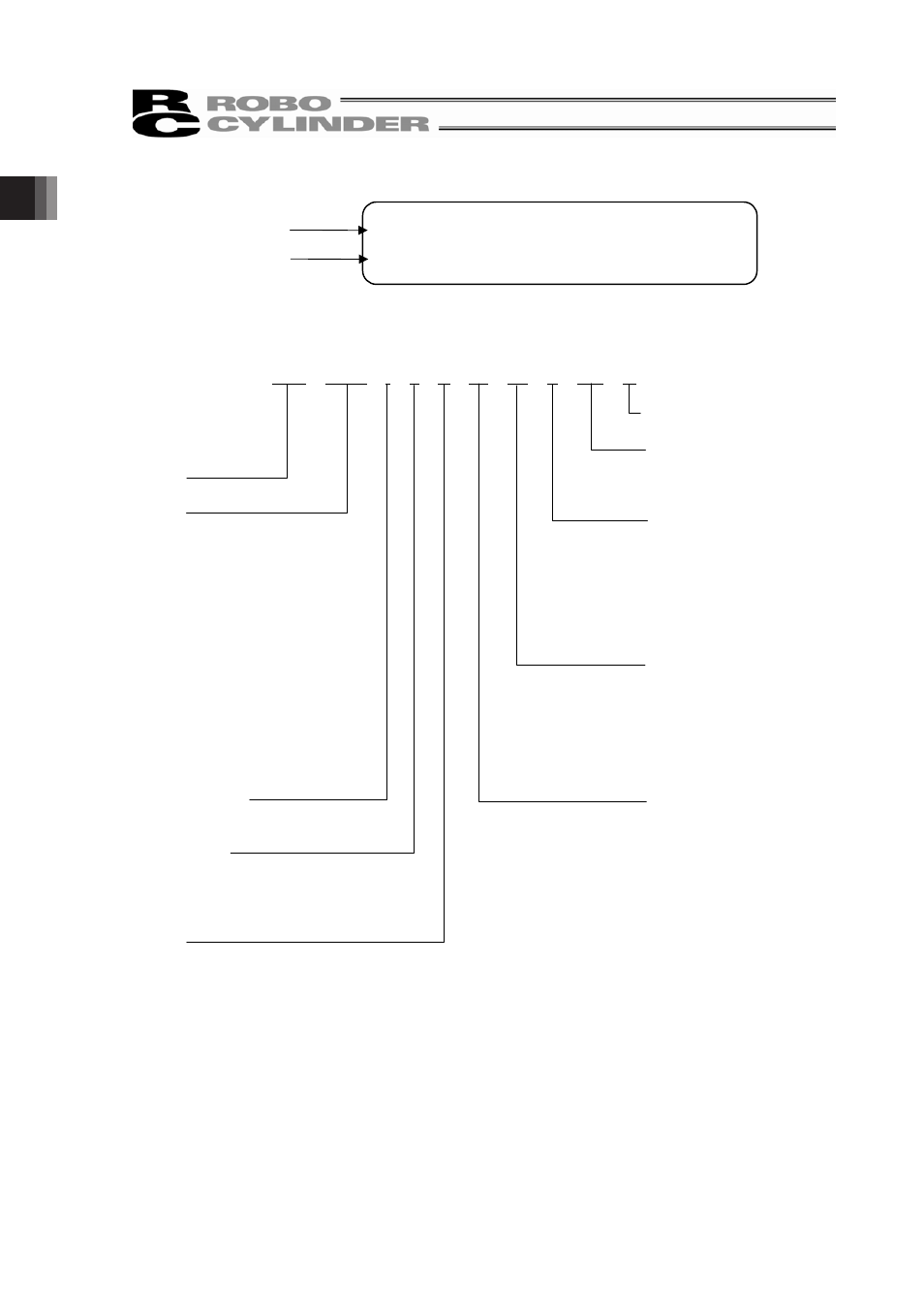

RCL – SA4L – I – 2 – N – 40 – A1 – P – NM – **
Note 1 Identification for IAI use only : It may be displayed for IAI use. It is not a code to show the
model type.
Series
Slim Type
Single Slider Type
SA1L
SA2L
SA3L
Long Stroke Type
Single Slider Type
SA4L
SA5L
SA6L
Double Slider Type
SM4L
SM5L
SM6L
I : Incremental
2(2W) : SA1L, SA4L, SM4L
5(5W) : RA2L, SA5L, SM5L
10(10W) : RA3L, SA6L, SM6L
N : With no feeding screw
Identification for IAI use only (Note 1)
NM : Reversed-home type
(Selectable for SA4L, SA5L and SA6L)
N : None
P : 1m
S : 3m
M : 5m
XƑƑ : Length Specification
(Example : X07=7m)
A1 : ACON
: RACON
: ASEL
A3 : AMEC
ASEP
MSEP
[Refer to 6 “External Dimensions”]
Model
Serial Number
MODEL RCL-SA4L-I-2-N-40-A1-P
SERIAL No.800061910 MADE IN JAPAN
