2. Installation
31
[2] Long Stroke Type SA4L, SA5L, SA6L
SM4L, SM5L, SM6L

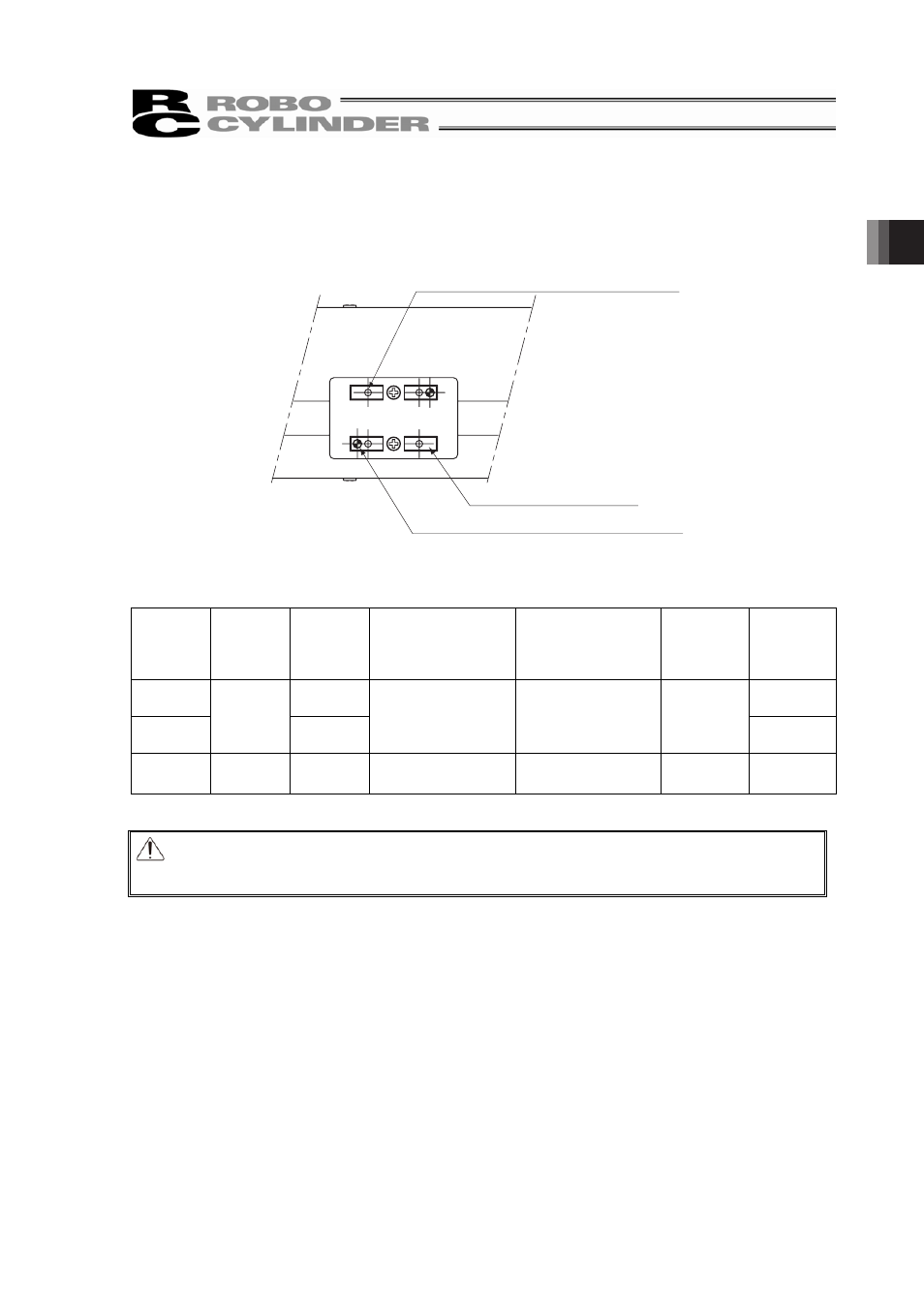

Attach a transported object with utilizing the tapped holes on the slider surface.
For the detailed dimensions, refer to the appearance drawing.
Slider mounting surface
Tapped hole for attachment (4 places)
Reamed hole for positioning (2 places)
Tapped Holes for Transported Object Attachment
Type
Tapped
holes
diameter
Effective
thread
depth
Recommended
screw torque
Seating surface :
Copper
Recommended
screw torque
Seating surface :
Aluminum
Reamed
holes
diameter
Effective
reamed
depth
SA4L
SM4L
3mm 2mm
SA5L
SM5L
M2
4mm
42.4N㨯cm
(4.32kgf㨯cm)
25.4N㨯cm
(2.59kgf㨯cm)
I 2H7
2.5mm
SA6L
SM6L
M3 5mm
154N㨯cm
(15.8kgf㨯cm)
83N㨯cm
(8.47kgf㨯cm)
I 3H7 3.5mm
Caution: Select a screw length that suits to the effective thread depth. In case that an
insufficient screw is used, it may cause damage on the tapped holes or insufficiency
in the strength.
