3. Connecting with the Controller

33

[Connecting with the ACON and ASEL Controller]











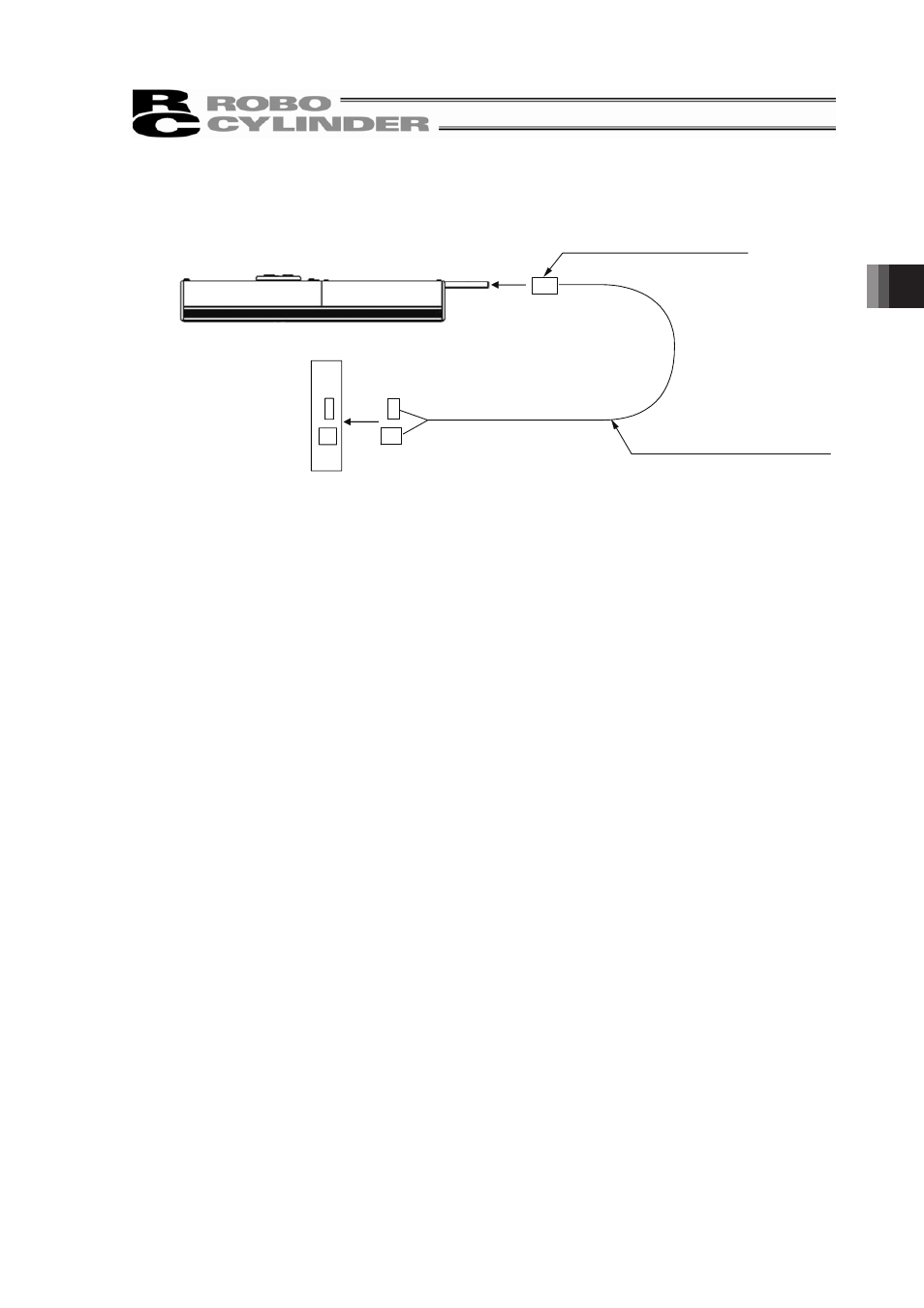

Dedicated cables

x

Servo Motor Cable

CB-ACS-MPAƑƑƑ

ƑƑƑ shows the cable length.

The max. length should be 10m.

Example) 080 = 8m

Dedicated Connection Cable

(connects controller and RCL)

Dedicated Controller

ACON

ASEL

r=84mm or more (Movable Use)

r=42mm or more (Fixed Use)
