2. Installation
30

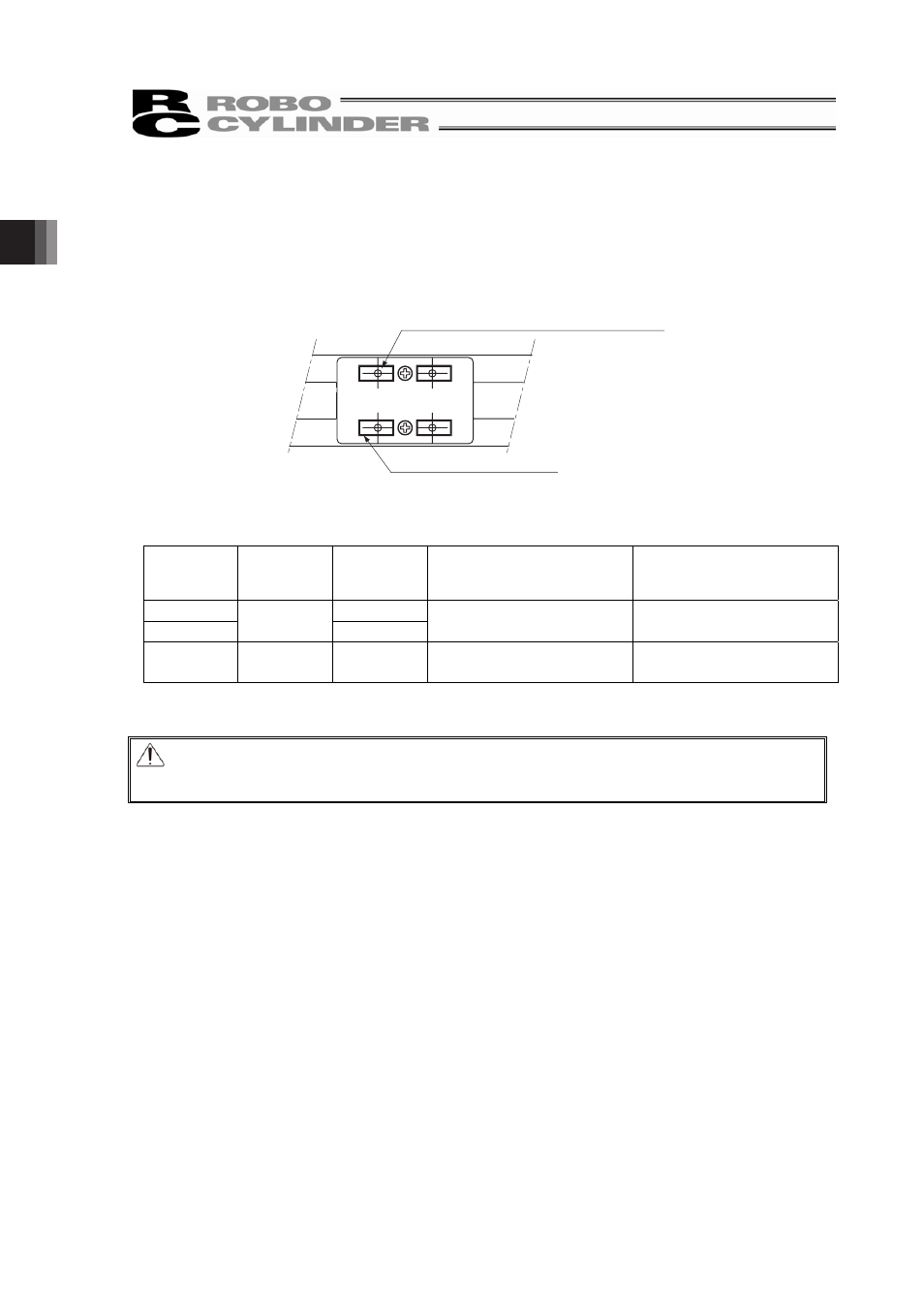

2.3.3 Attachment of Transported Objects
[1] Slim Type SA1L, SA2L, SA3L
Attach a transported object with utilizing the tapped holes on the slider surface.
For the detailed dimensions, refer to the appearance drawing.
Slider mounting surface
Tapped hole for attachment (4 places)
Tapped Holes for Transported Object Attachment
Type
Tapped
holes
diameter
Effective
thread
depth
Recommended screw
torque
Seating surface : Copper
Recommended screw
torque
Seating surface : Aluminum
SA1L 3mm
SA2L
M2
4mm
42.4N㨯cm
(4.32kgf㨯cm)
25.4N㨯cm
(2.59kgf㨯cm)
SA3L M3 5mm
154N㨯cm
(15.8kgf㨯cm)
83N㨯cm
(8.47kgf㨯cm)
Caution: Select a screw length that suits to the effective thread depth. In case that an
insufficient screw is used, it may cause damage on the tapped holes or insufficiency
in the strength.
