01/13

64

51297 Rev. 1

Section 7: Service and Maintenance

7.1. Troubleshooting the Instrument

DISPLAY

SYMPTOM

RESOLUTION

ERROR

Possible bad battery or power loss

Program error

Replace the PCB.

Replace Battery

No Display

No Power

Check AC Input

Check battery voltage

Drifting/Unstable

Display changes at a rapid pace.

Loss of Excitation voltage.

Check for damaged load cell, load

cell cables, or bad main PC.

Measure the Excitation Voltage

(5VDC)

Use a Simulator to troubleshoot.

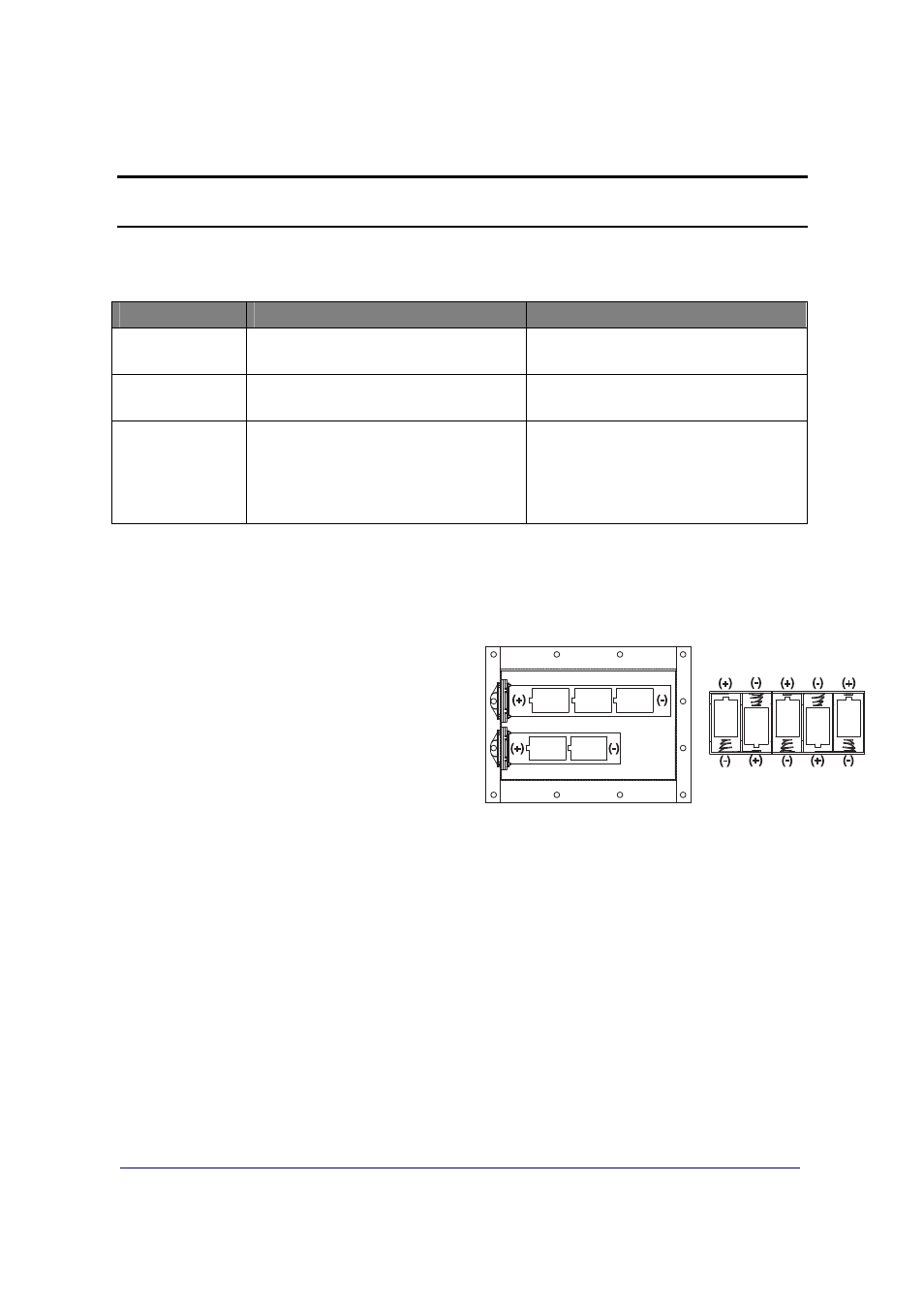

7.2. Battery Installation

STAINLESS STEEL INSTRUMENT

6. Unscrew the black plastic end caps.

7. Insert five (5) alkaline “D” cell batteries.

ABS INSTRUMENT

8. Unscrew the two large knurled screws on the back of the Instrument

9. Remove the battery cover.

10. Insert five (5) alkaline “D” cell batteries.

Industrial ‘D’ size Energizer EN95 battery or equivalent is recommended for

maximum operating time.

Stainless Steel models should have special formed key washers installed for

grounding.

– Four (4) screws fasten the back cover plate at the corners.

STAINLESS STEEL ENCLOSURE

ABS ENCLOSURE
