Communication settings, continued – Fairbanks FB2255 Series Instrument PC2255 PC Software Utility Program User Manual
Page 50
Section 6: PC2255 Utility Software
01/13
50
51297 Rev. 1
6.2. Communication Settings, Continued
1. Launch the
PC2255.exe
file.

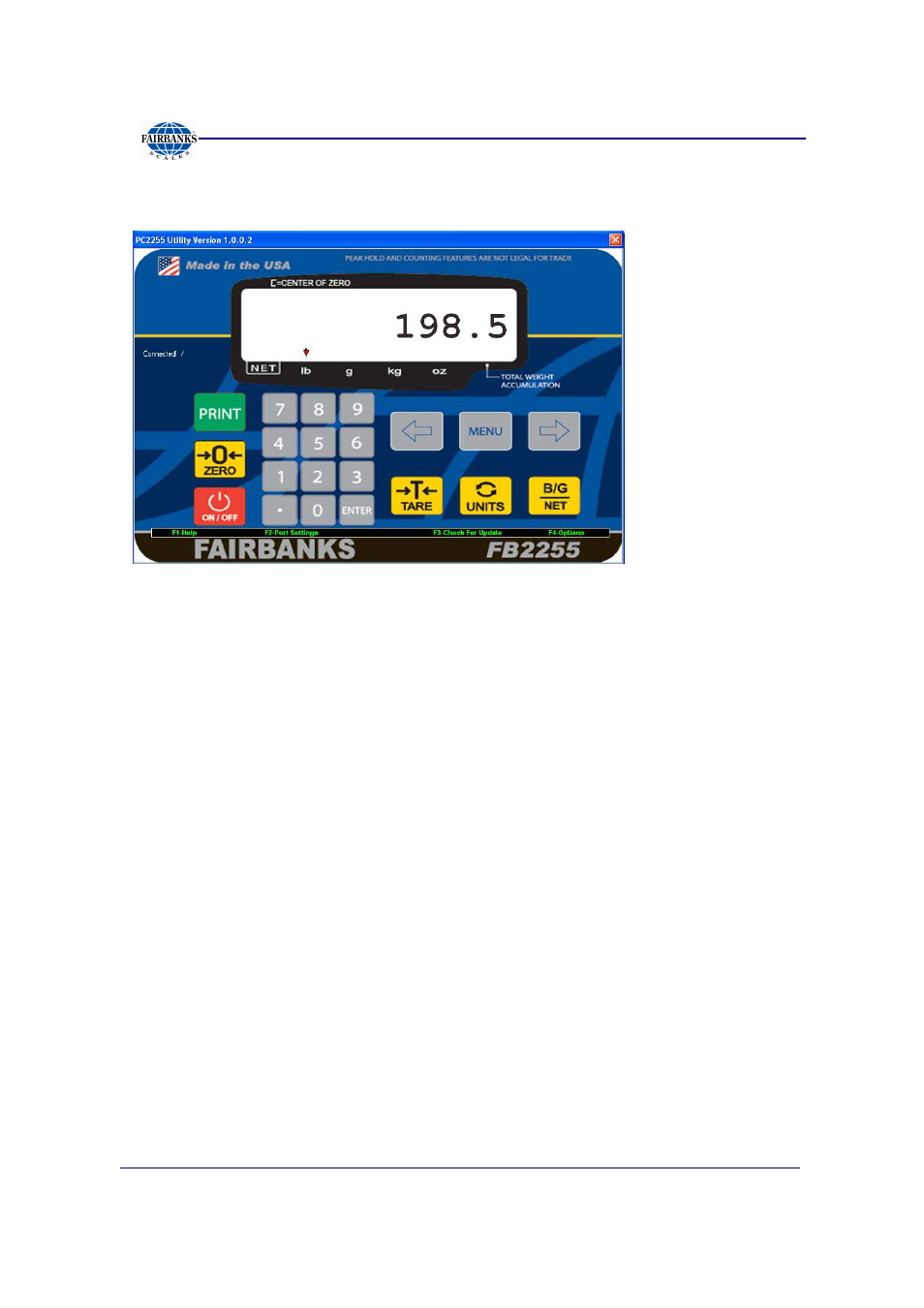

– An image of the FB2255 will display on the computer monitor.
– The legend “CONNECTED” with a rotating baton will displayed.
– The weight display will duplicate what is shown on the FB2255.
2. Left-clicking the mouse on any key to transmit that command to the FB2255.
– This excludes the
PRINT key.
– The legend “COMMAND SENT!” will display at the right.
– Mouse-clicking the
ON/OFF
key will terminate the PC2255 software
program.
