Section 6: Fieldbus/Bluetooth

01/13

43

51297 Rev. 1

5.2.4.

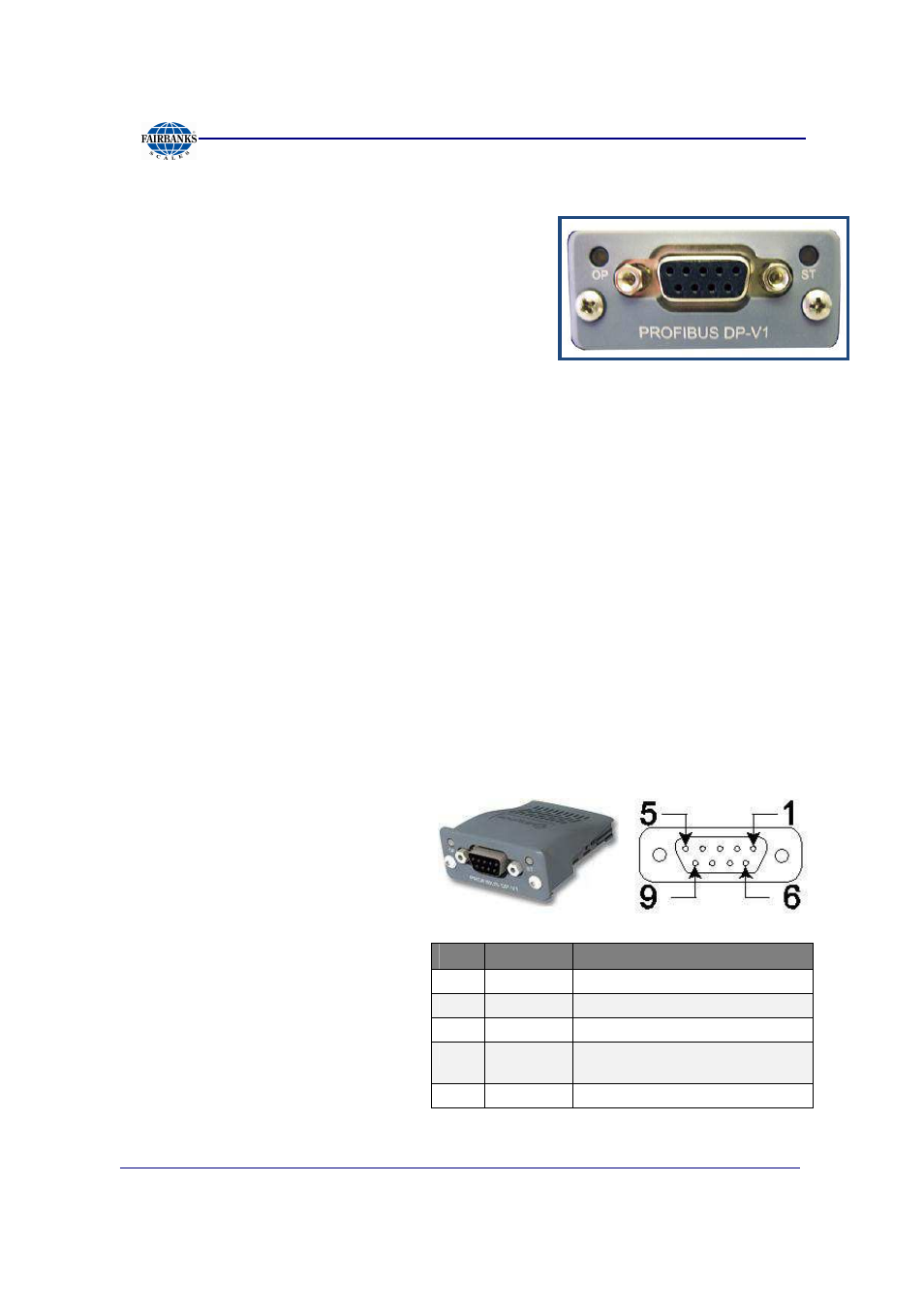

PROFIBUS (

29576

)

PROFIBUS

is one of the best-known industrial

fieldBus protocols from Europe.

– It is an established standard, used in a wide

range of applications as a multi-application
communications link for industrial devices.

– The ProfiBus protocol was originally

developed by a committee founded by the
German government.

PROFIBUS

utilizes a non-powered two-wire (RS-485) Network.

– A ProfiBus Network may have up to 126 nodes, transferring a maximum of

244 bytes data per node/ per cycle.

– Baud (Communication) Rates are selectable, and overall end-to-end network

distance varies with speed.

– The maximum standard Baud Rate is 12Mbps, with a maximum distance of

100M (328ft), and 1200M (3936 ft.) at 93.75Kbps without repeaters.

PROFIBUS

connects to a wide variety of field devices including the

following:

Discrete and analog I/O Drives.

Robots.

HMI/MMI products.

Pneumatic valves.

Barcode readers.

Weigh scales.

Transducers.

Flow measuring equipment.

PIN

SIGNAL

DESCRIPTION

3

B-Line

Positive RxxD/TxD, Rs485 level

4

RTS

Request to Send

5

GND

Ground (Isolated)

6

+5 Bus
Output

+5V termination power (Isolated,
short circuit protected)

8

A-Line

Negative RXD/TxD, RS485 level
