Section 4: Input / Output

01/13

30

51297 Rev. 1

SEL

EXIT

POWER

SHIFT

ALARM

LF

GROUP

Micro Feed

Down

FF/LOAD

Micro Feed

Up

ITEM

MENU

TEAR

SET

PARK

PRINT

QUIET

TOF

SEL

MENU

4.3. Okidata 420 Form Printer

Program the FB2255 the following settings.

Transmission

RS232

Baud Rate

9600

Data Bits

8

Stop Bit

1

OUTPUT

“BUTTON” for Print Key

NOTE:

Always restart the printer after making any switch changes.

1. To enter MENU MODE, press and hold the

SHIFT

key while pressing the

SELECT

key.

– The MENU legend will be illuminated while in the Menu Mode.

2. With the printer in the Menu Mode, press

PRINT

to print the complete menu.

– The current default settings print out.

– It is recommended to use tractor fed paper.

NOTE:

The Printed Menu selections are different for each Emulation Mode.

3. Press

GROUP

to select the relevant group that needs to be changed.

– Found on the left-hand column on the Menu Printout.

4. Press

ITEM

to select the relevant item within the selected group.

– Found on the Item is the center column on the Menu Printout.

5. Press

SET

to cycle through the settings available for the item to change.

– The settings are the right-hand column on the Menu Printout.

6. Press and hold the

SHIFT

key while pressing the

SELECT

key to exit the

Menu Mode.

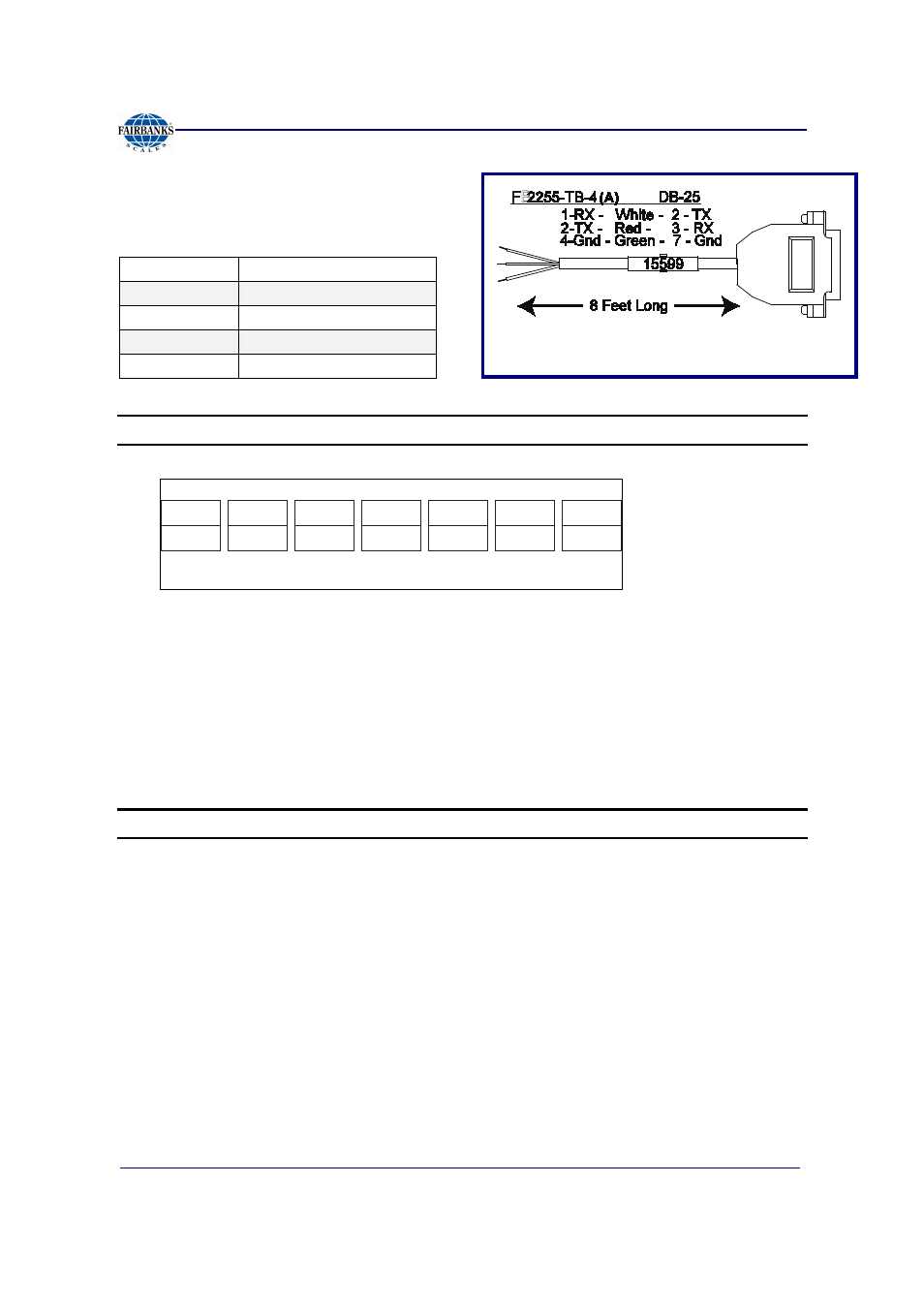

Printer Cable (

15599

) is used for this printer.
