Section 6: PC2255 Utility Software

01/13

54

51297 Rev. 1

6.6. Calibration

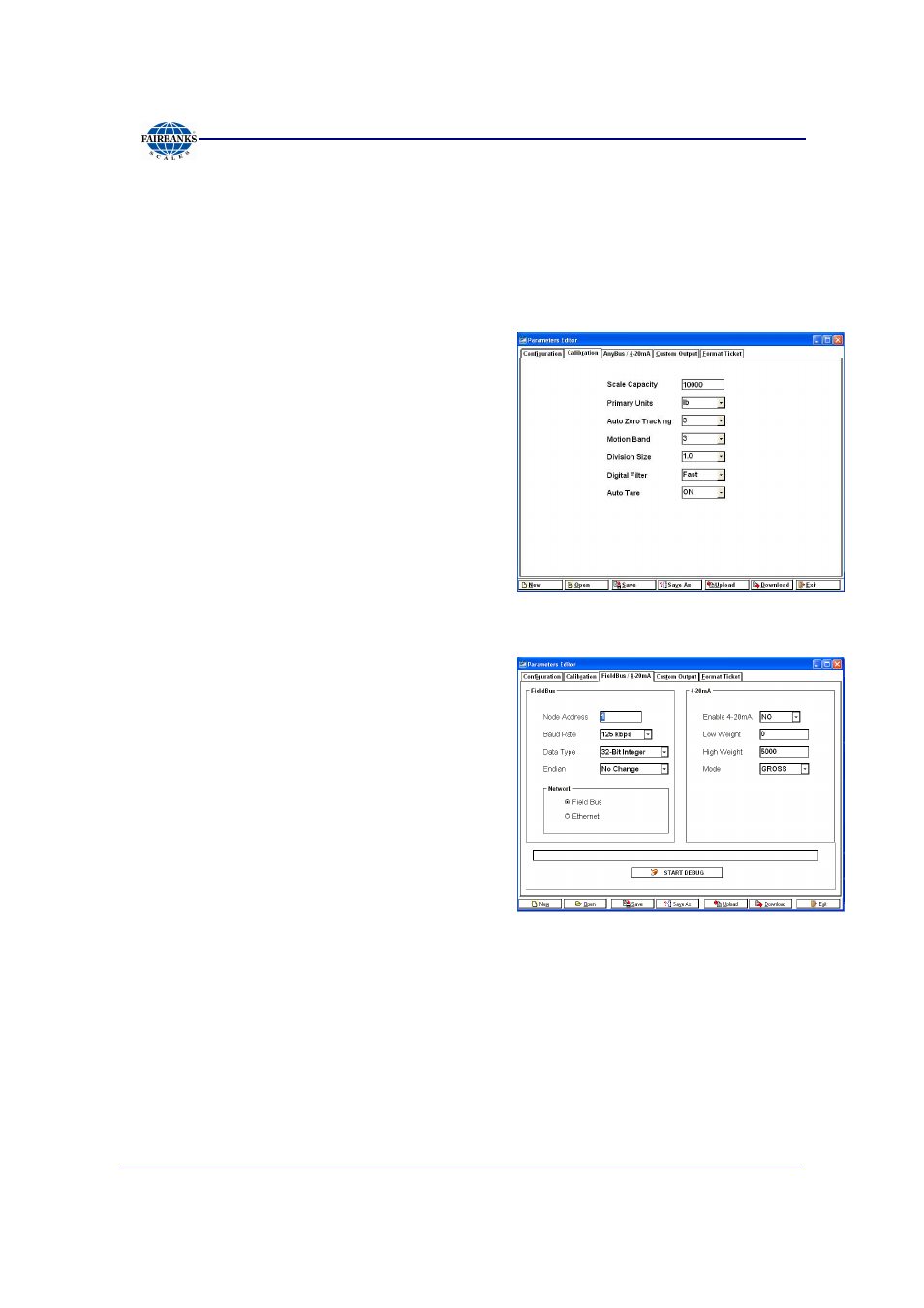

Settings from this window include the following options.

Scale capacity

Primary Units

Auto Zero Tracking (AZT)

Motion Band (BAL)

Division Size

Digital Filter

Auto Tare settings

Actual test weight calibration is performed with
the FB2255 front panel keys.

6.7. Fieldbus / 4-20 mA

The Anybus or DeviceNet Module is set up
using the

PC2255 Program

and is

supported by the following parameters.

NODE ADDRESS

Enter the Node Address of the Module.

This is typically furnished by the customer.

BAUD RATE

Most Anybus Modules can automatically detect the network speed by using the

Auto Baud feature.

Device Net uses 125K bps, 250K bps or 500K bps.
