Section 6: Fieldbus/Bluetooth
01/13
44
51297 Rev. 1
5.2.4.
PROFIBUS (
29576
), CONTINUED

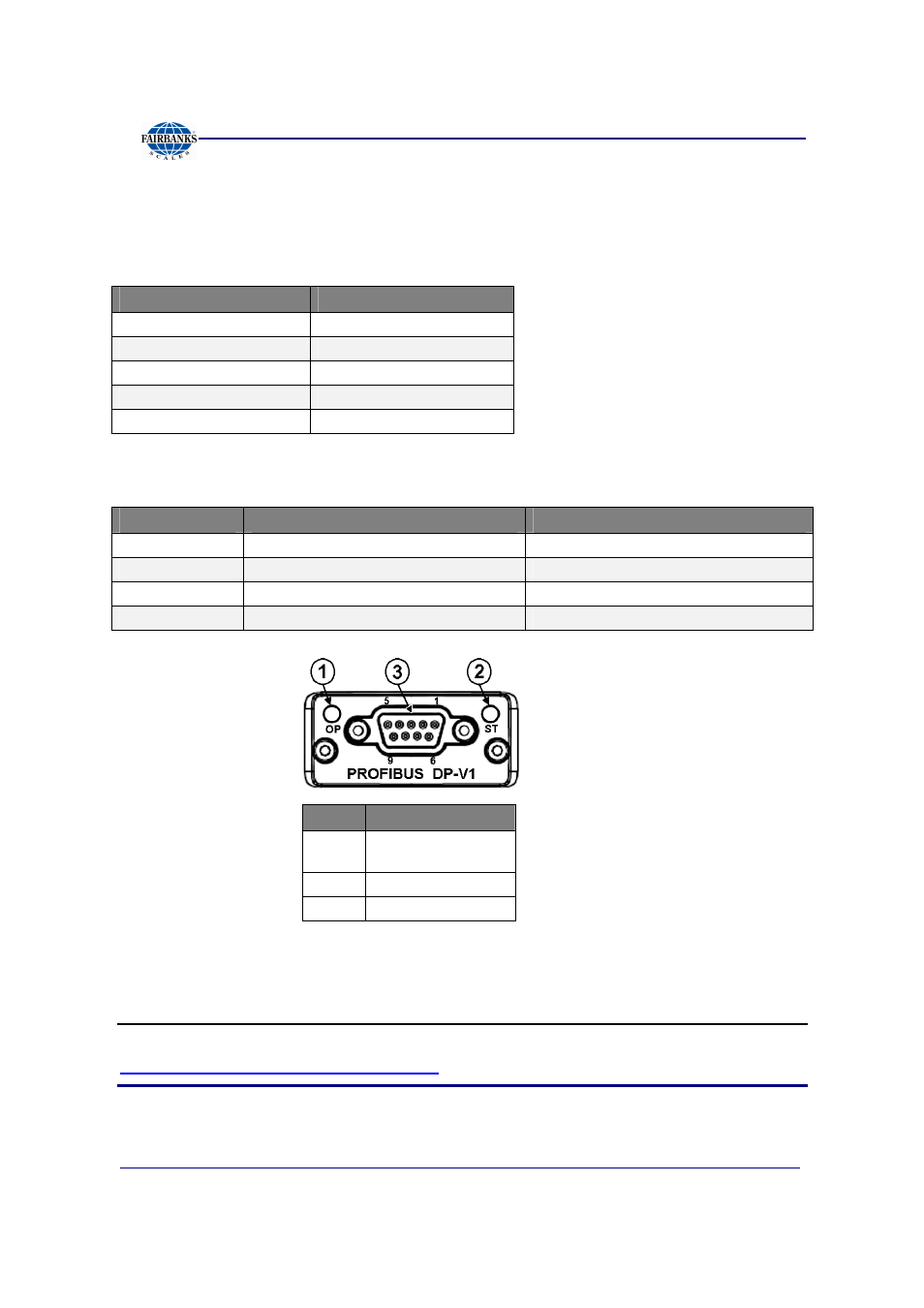

OPERATION MODE LED
MODULAR STATUS LED
NOTE:
Additional information and
EDS files
are available at the following website.
http://www.hms.se/default.shtm
.
LED STATE
DESCRIPTION
OFF
Not online or No power
Green
Online/ Data Exchange
Flashing Green
Online, clear
Flashing Red (1 flash)
Parameterization error
Flashing Red (2 flashes)
Profibus configuration error
LED STATE
DESCRIPTION
COMMENTS
OFF
No power - OR – not initialized
Module state = “SETUP” OR NW-INIT”
Green
Initialized
Module has left the NW_INIT state
Flashing Green
Initialized, diagnostic events(s) present
Extended diagnostic bit is set
Red
Exception error
Module state = EXCEPTION
NO.
DESCRIPTION
1
Communication
LED
2
Device Status LED
3
Profibus Interface
