Section 4: Input / Output

01/13

33

51297 Rev. 1

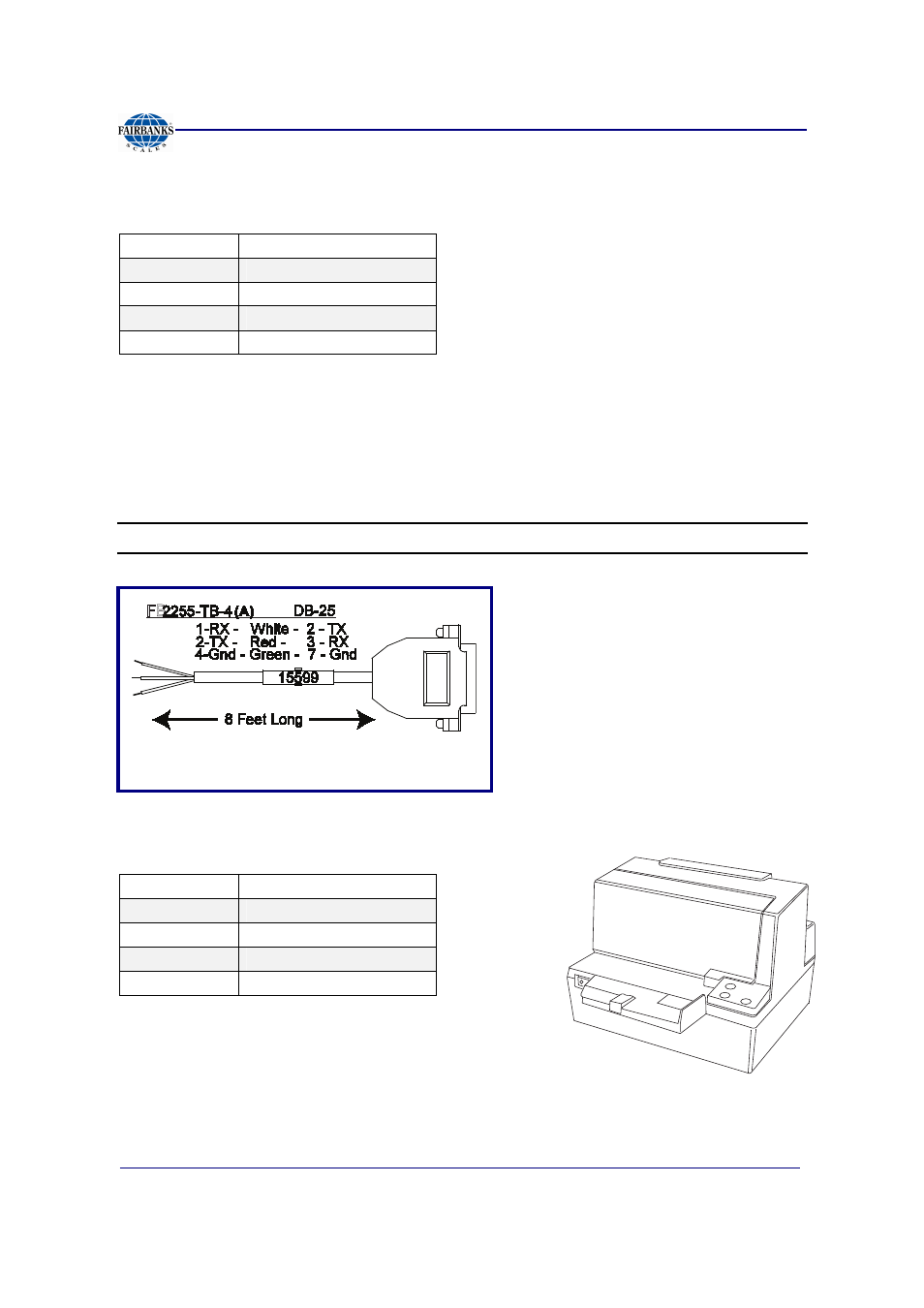

4.4. TM-U295 Ticket Printer

Transmission

RS232

Baud Rate

9600

Data Bits

8

Stop Bit

1

OUTPUT

“BUTTON” for Print Key

Set the dip switches to the following.

1 and 3 are

ON

.

The rest are

OFF

.

NOTE:

Always restart the printer after making any switch changes.

4.5. TM-U590 Ticket Printer

Transmission

RS232

Baud Rate

9600

Data Bits

8

Stop Bit

1

OUTPUT

“BUTTON” for Print Key

Set the dip switches to the following.

DSW 1

1, 3 and 7 are

ON

only.

DSW 2

All are

OFF

.

Printer Cable (

15599

) is used for both printers.
