7.3.3. OMEGA PROGRAMMING TO PRODUCE SPECIFIC LABEL FORMATS, continued
C. Label 3
Pr.nEt = nEt
PLU = YES
tidt = no
PCS = YES
PCLUGt = YES
ACC = no
PCS.ACC = no
ACC.LUGt = no
7.4. SCANNER/READER SETUP
1. Attach the interface cable to the hand held scanner/reader. See below.
2. Connect the interface cable to Serial 2 on the right hand side panel of the OCS.
3. Connect the AC adapter to the bar code scanner.
4. Enable Serial 2 in the OCS for scanner/readers by selecting YES.
5. Use the color Quick Start Guide that accompanies the scanner and perform the
following steps:
a. Scan the “Return to Factory Defaults” bar code on the Quick Start Guide.
b. Scan the “Standard RS-232” bar code in Step 3 of the bar code scanner
instructions.
c. Scan bar codes 1, 2 and 3 in the Add An Enter Key of the bar code scanner
instructions.
d. Scanner programming is complete. If you do not successfully complete each
of these steps, start the entire scanning process from the beginning.
DO NOT discard this sheet. It must be used to setup and configure the
scanner/reader.

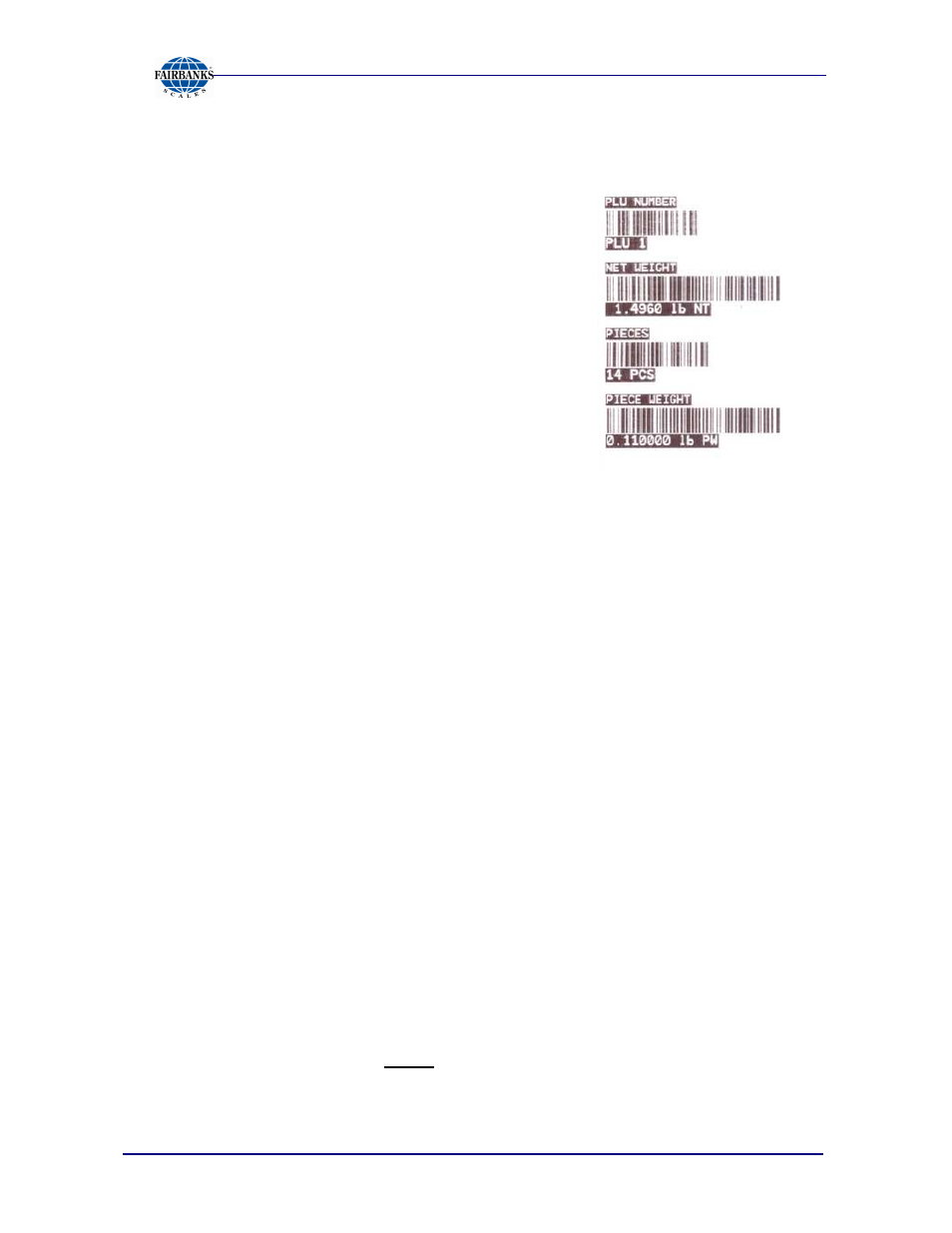

LABEL 3
