7.1 Set Parameter
tHe functions of these screens are to input the fastening method, the tool type, and all
fastening, speed, and reverse parameters.
7.1.1 TABLE OF CONTENTS
7.1.1. TABLE of Contents for the SET PArameter screens
7.1.2. SET PARAMETER INPUT MODE SELECTION
7.1.3. FASTENING PARAMETER SETUP
7.1.4. SPEED parameter SETUP
7.1.5. REVERSE PARAMETER SETUP
7.1.6. VOCABULARY 1 [FASTENING] TORque Control
7.1.7. VOCABULARY 2 [FASTENING] ANgle Control
7.1.8. VOCABULARY 3 [FASTENING] Yield Control
7.1.9. VOCABULARY 4 [SPEED]
7.1.10. VOCABULARY 5 [REVERSE]
7.1.2 Set PARAMETER INPUT MODE SELECTION
2-1. Set the RUN/PROGRAM key switch to the PROGRAM position to change
parameters.
2-2.
Select Parameter Number (1~8)
2-2a. Move the cursor on the menu bar to [PARAMETER SELECT] using the [
←
]
[→]
keys and depress the
[↵]
key.
2-2b. TO select a Parameter No. 1 thru 8, use the
[←] [→]
keys until the desired
number appears on the menu, then depress the
[↵]
key. The SET PARAMETEr
screen will change to the selected screen with the PARAMETER No. displayed in the
upper right hand corner.
NOTE: SEQUENCE SEtup data determines which Parameter setup (1~8) is used during
fastening.

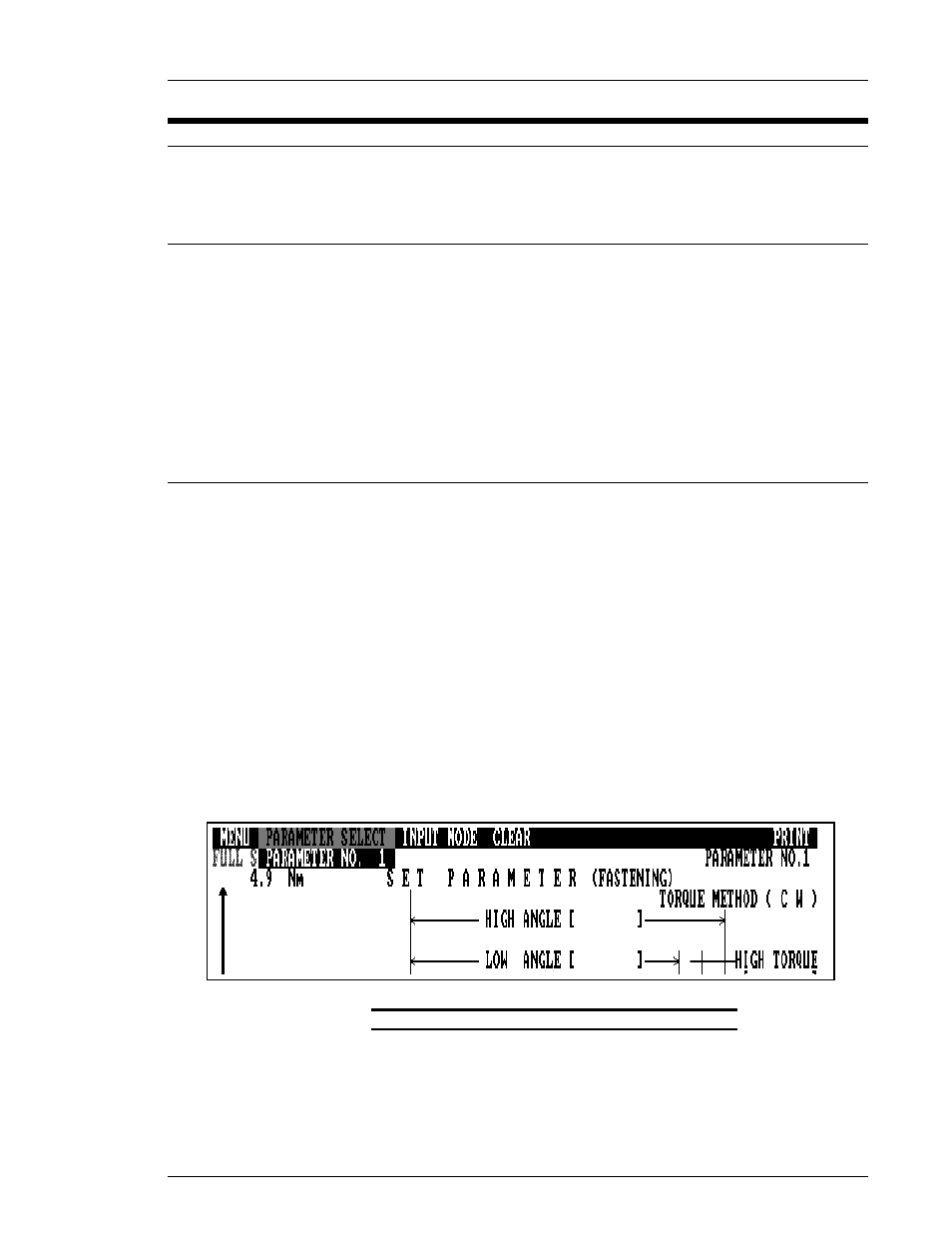

FIG. 7-1-2-2 Set parameter [PARAMETER SELECT]
2-3. Select INPUT MODE
2-3a. MOVe the cursor on the menu bar to [INPUT MODE] using the
[←] [→]
keys and depress the
[↵]
key.
Chapter 7: System Operation
Page 7-9
