2-6 header and line format for [SYSTEM CONFIGURATION (1) & (2) & (3)]
2-6a. SCreens (1), (2), and (3) have the capability of configuring the header and line
formats for the Parallel Centronics, RS422, and RS232C output ports, respectively.

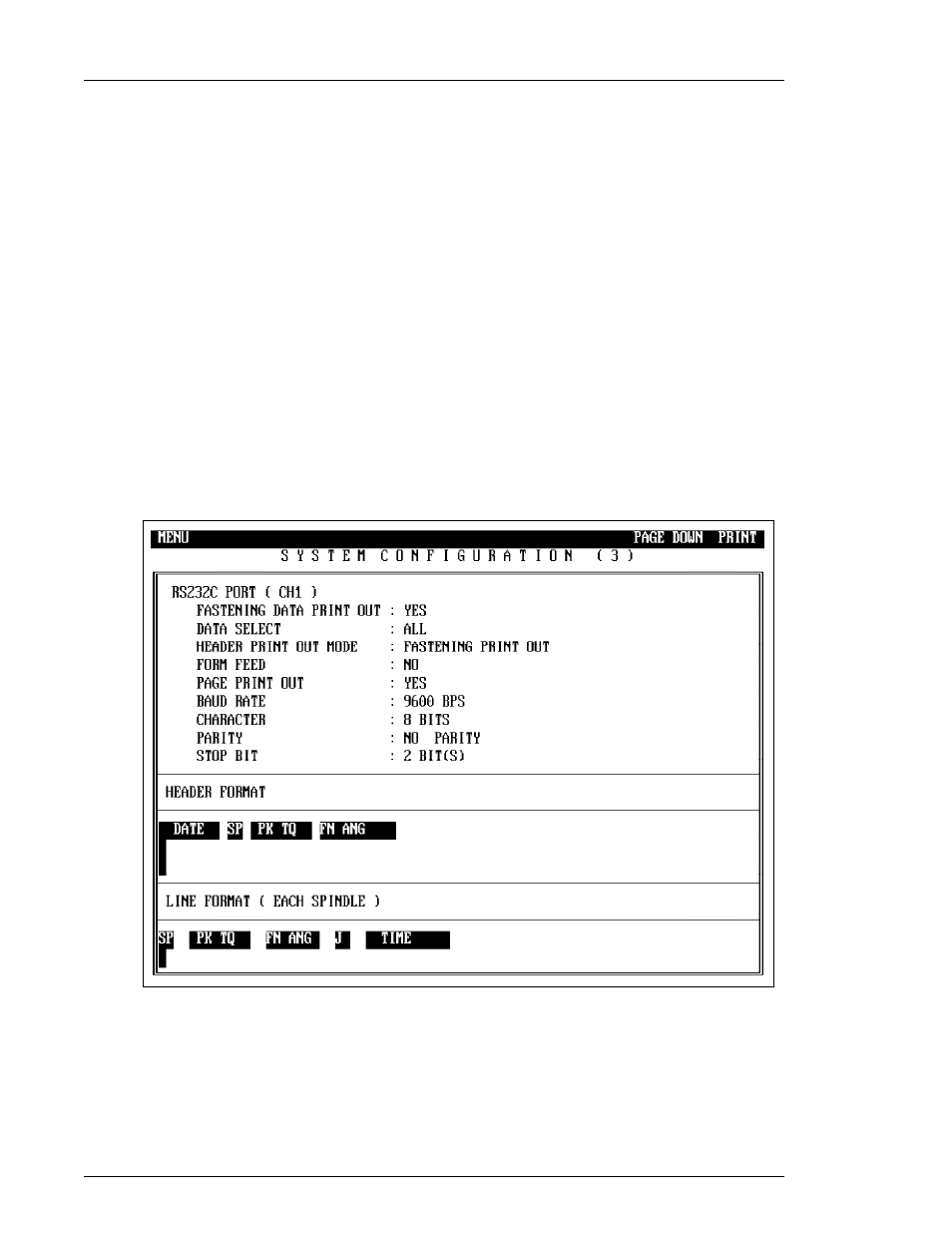

The Header Format and Line Format areas shown below are part of each of the
System Configuration screens (1), (2), and (3). the following information applies to all
three screens.
2-6b. HEADER FORMAT
the header format section of each screen allows the user to configure a 3 row by 78
character header. this block can be set up to output alphanumeric characters,
control characters, and/or blocks of resultant data during periods determined by the
set up of the HEADER PRINT OUT MODE.
2-6c. LINE FORMAT (EACH SPINDLE)
the line format section of each screen allows the user to configure a 2 row by 78
character individual spindle data output format. this block can be set up to output
alphanumeric characters, control characters, and/or blocks of resultant data.
Chapter 7: System Operation
Page 7-64
