7.1.6 vOCABULARY LIST 1 [FASTENING] TORQUE CONTROL

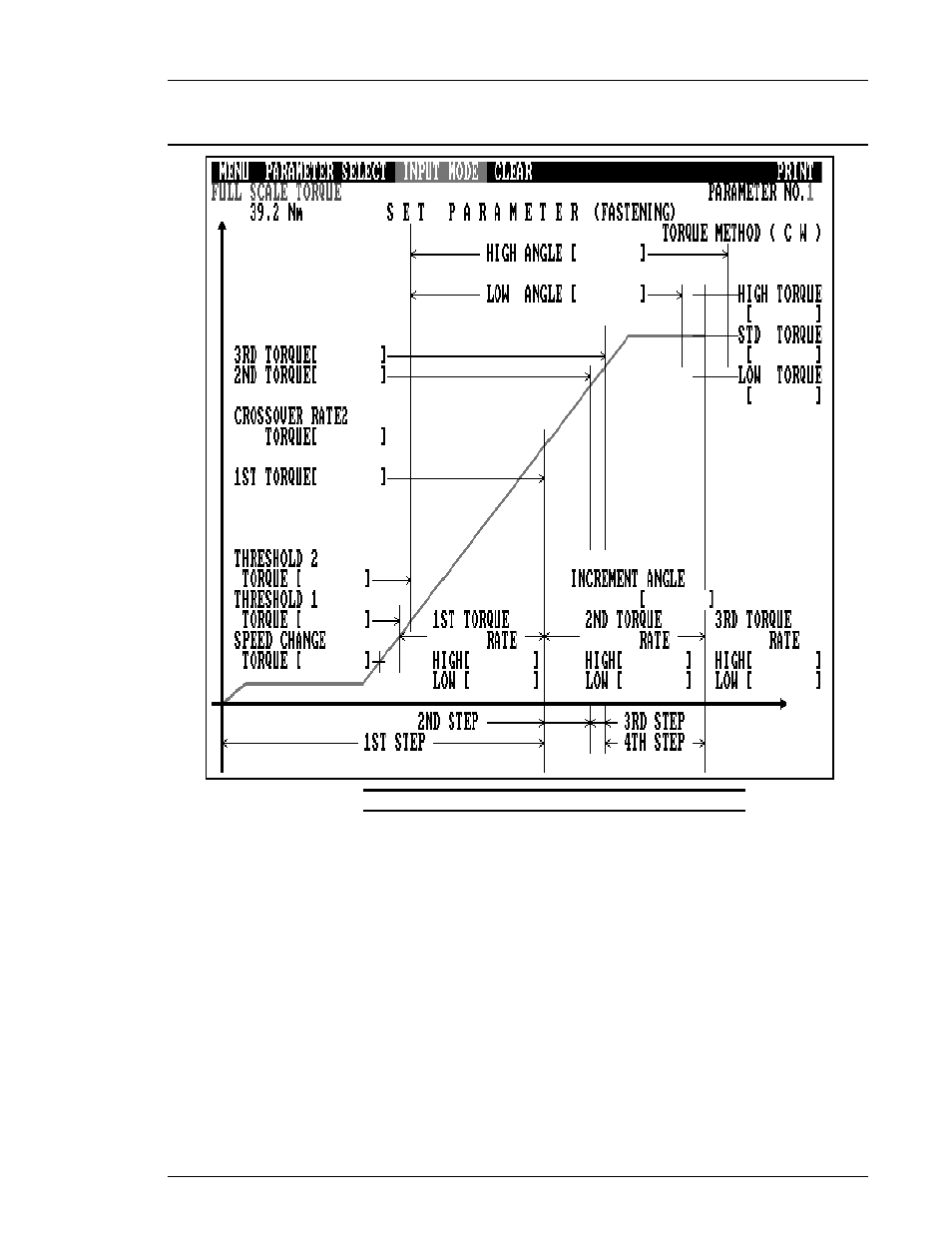

FIG. 7-1-6 set parameter [FASTENING] torque method
FULL SCALE TORQUE MAXIMUm transducer monitoring capacity
TORQUE METHOD
(CW/CCW)
Torque Control method
ANGLE METHOD Angle Control method
(CW-SNUG/CW-SEAT/CCW) * Seat Method - Angle count starts at 1st Torque Rate
(calculated zero point)
* Snug Method - Angle count starts at Threshold 2 Torque
(standard operating method)
YIELD METHOD
(CW/CCW)
Yield Control method
SPEED CHANGE TORQUE Shiftpoint from 1st Step to torque speed
THRESHOLD 1 TORQUE Start of 1st TORQUE RAte measurement
THRESHOLD 2 TORQUE STart of FINAL ANGLE measurement
