7.9 SYSTEM CONFIGURATION
The functions of these screens are to configure the System communication for the RS422,
RS232C, and Centronics parallel ports.
7.9.1 TABLE OF CONTENTS
7.9.1. TABLe of CONTENTS fOR SYSTEM CONfiguration screens
7.9.2. SCREEn EXPLANATION
7.9.3. SCREEn OPERATION [SYSTEM CONFIGURATION (1)]
7.9.4. SCREEn OPERATION [SYSTEM CONFIGURATION (2)]
7.9.5. SCREEn OPERATIOn [SYSTEM CONFIGURATION (3)]
7.9.6. SCREEn OPERATIOn [SYSTEM CONFIGURATION (4)]
7.9.7. header and line format for SYSTEM CONFIGURATION (1), (2), & (3)
7.9.2 SCREEN EXPLANATION
2-1. PRINTER (PARALLEL PORT) [SYSTEM CONFIGURATION (1)]
FASTENING DATA PRINT OUT: NO (YES)
the print out of fastening data may be enabled or disabled via this function. the port will
remain operational for the screen print function in either case.
DATA SELECT
: ALL (ACCEPT, REJECT, ACCEPT & REJECT)
specific fastening data types may be printed out by setting this delimiter.
HEADER PRINT OUT MODE
: NO PRINT OUT (POWER ON, FORM FEED,
FASTENING PRINT OUT)
The header may be printed out for any of the selection options.
FORM FEED
: NO (YES)
Form feed at the end of each page is enabled or disabled by this command.
PAGE PRINT OUT
: NO (YES)
Page numbering at the top of each page is enabled or disabled by this command.
PRINTER : PAINTJET (FX, VP)
the printer type may be set as a HP PAINTJET, EPSON FX or as an EPSON VP style printer.
Special characters may be sent to the printer using the header format function.

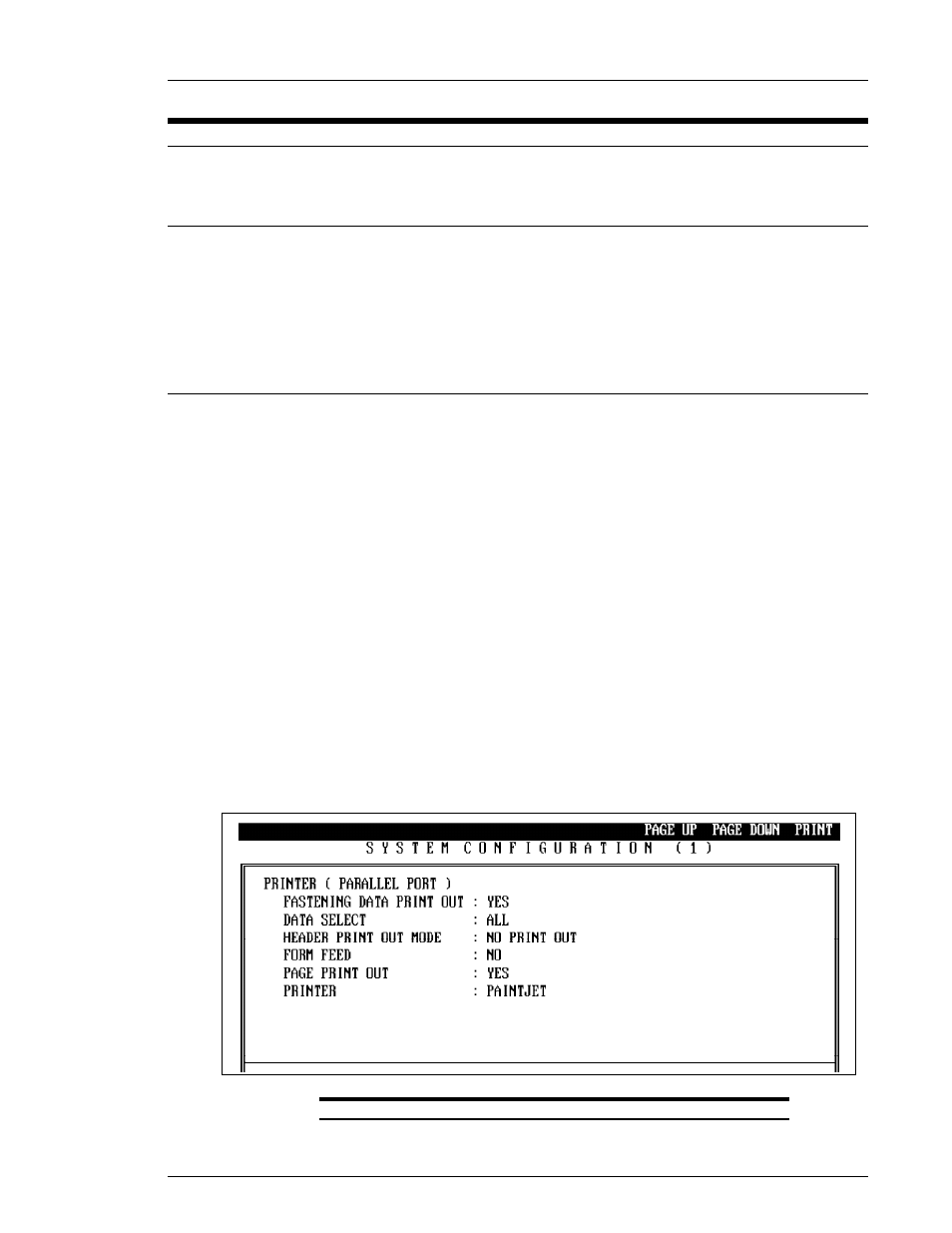

FIG. 7-9-2-1 system configuration (1) upper half, screen explanation
