7.14 PRESET FILE Utility
The function of this screen is to perform file maintenance on the preset data configuration for
the System.
7.14.1 TABLE OF CONTEnts
7.14.1. TABle of Contents for PRESET FILE Utility screens
7.14.2. SCreen Explanation
7.14.3. SCReen OPERATION/PRINT OUT FUNCTIon
7.14.2 SCREEN EXPLANATION
2-1. THE preset file utility screen is used to save, compare, load, and delete preset data in
conjunction with either a floppy disk drive (FDD) or hard disk drive (HDD).
2-2. THe screen has three (3) different files types that may be manipulated. Each file type
is enabled using the [
±
] keys to set an [*] in the left hand column. The [FILE NAME]
(8 characters max) may be entered using the alphanumeric pulldown window. The
file extension will be set automatically based upon file type.
[*] FASTENING PARAMETER FILE NAME:(????????).PAR
[*] SEQUENCE FILE NAME:(????????).SEQ
[*] SYSTEM / MACHINE CONFIGURATION FILE NAME:(????????).CFG
2-3.
THe drive information may be specified as follows:
DRIVE: B (FDD) SELected drive unit using
[←] [→]
keys
C (HDD)
PATH:
[ABCDEFGH] NAme of directory set by alphanumeric pulldown
menu. (8 characters max)

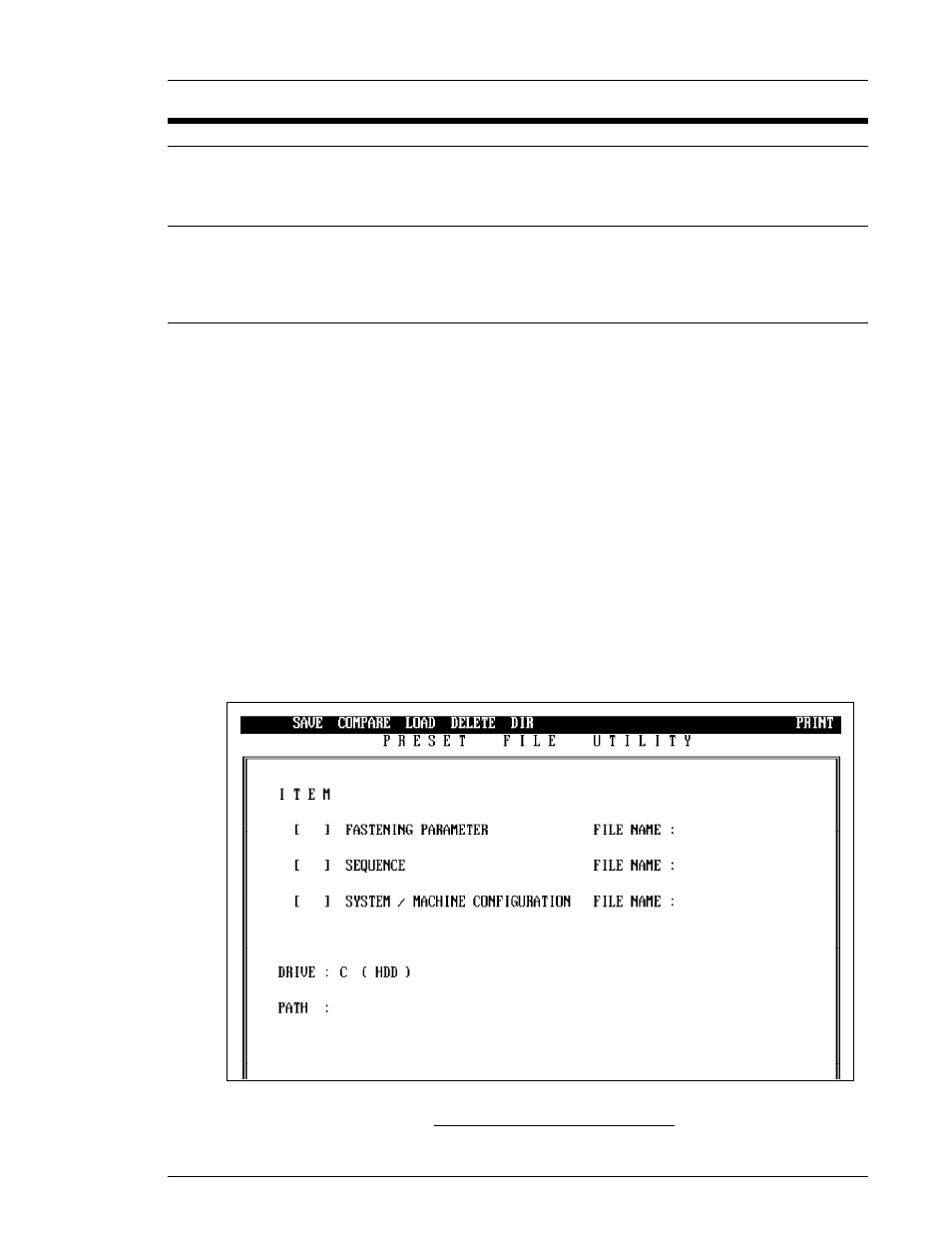

FIG. 7-14-2 preset file utility screen
