FIG. 7-1-3-3 set parameter data presetting
3-4. SELECT CLEAR COMMand
3-4a. MOve the cursor on the menu bar to [CLEAR] using the
[←] [→]
keys and
depress the
[↵]
key. Two (2) options will be given
3-4b. [SCREEN DATA CLEAR] - clears all data on the screen except for the Full
Scale Torque value and the fastening Method (Torque, Angle, etc.) [PARAMETER
NO. DATA CLEAR] - clears all data for the Parameter No. displayed on the screen,
with the exception of the Full Scale Torque value and the fastening Method (Torque,
Angle, etc). Sequence Setup should be reviewed to ensure that the cleared
Parameter No. is not in any Sequence.
3-4c. Select the desired function using the
[↑] [↓]
keys and depress the
[↵]
key.
THe question "DATA CHANGE OK?" will appear in the lower right hand corner of the
screen. SELect YES or NO using the
[←] [→]
keys, and depress the
[↵]
key.

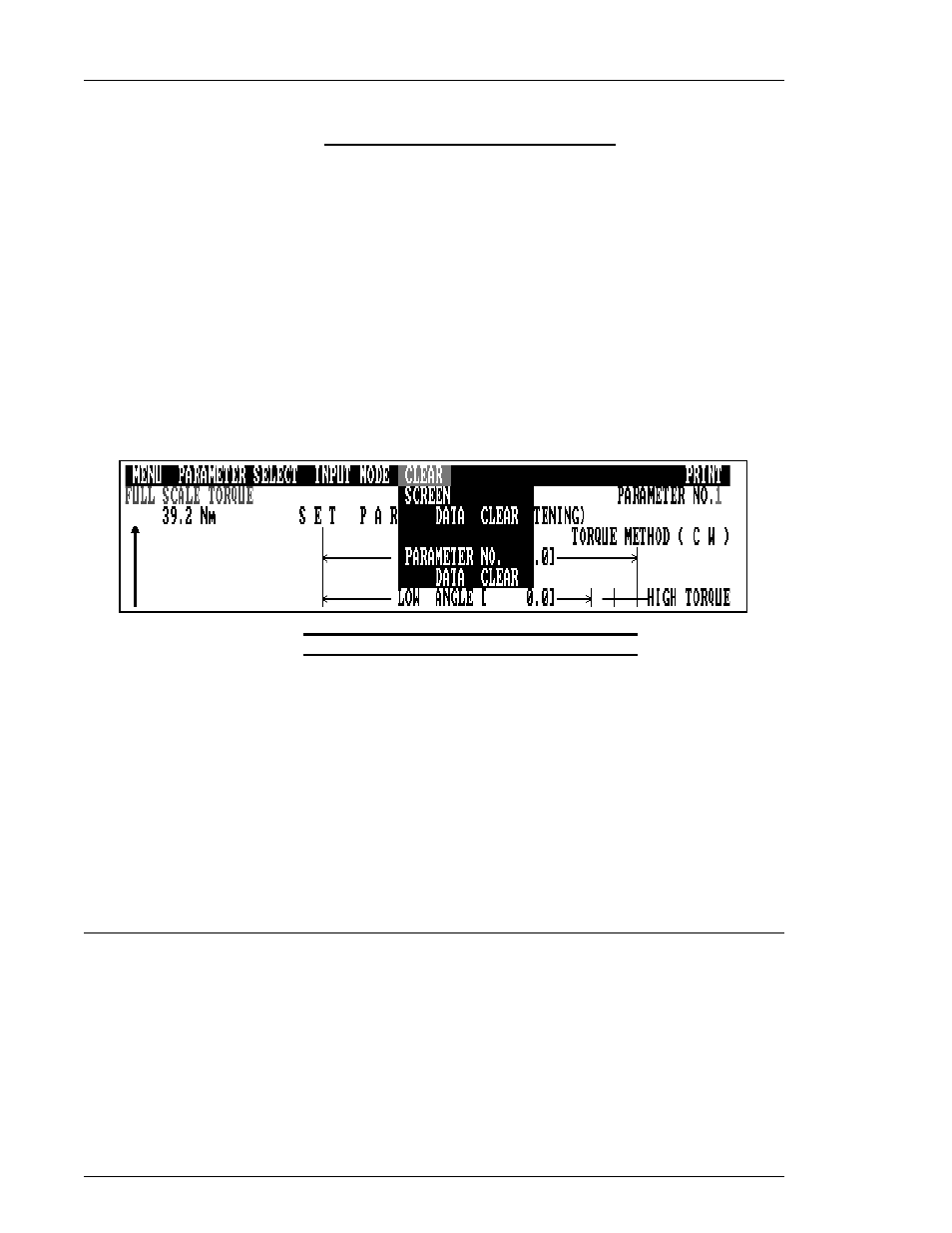

FIG. 7-1-3-4 set parameter [CLEAR] Command
NOTES:
1. THe RUN/PROGRAM key switch on the MAIN UNIt must be in "PROGRAM"
mode to change data. if it is not, an error message will appear that indicates
that the machine is in "RUN MODE".
2. The nutrunner will not operate while in "PROGRAM" mode.
3. If incorrect data is entered, the System will display "INPUT ERROR".
4. A screen print can be selected from the menu bar. Use the
[←] [→]
keys
to select [PRINT], and depress the
[↵]
key.
7.1.4 SPEED PARAMETER SETUP
THe function of this screen is to preset the following parameters:
FASTENING SPEED [RPM]
FASTENING TIME [SEC]
FASTENING REVOLutions
[REV]
4-1.
SELECT INPUT MODE
4-1a. Move the cursor on the menu bar to [INPUT MODE], select [SPEED] and
depress the
[↵]
key. THE screen displayed will be the "SET PARAMETER (SPEED)"
screen. Check the PARAMETER No. to ensure the correct number has been
