)(& ,QF

7.4.3 SCALE SELECTIOn

3-1.

MOVe the cursor on the menu bar to [SCALE] using the

[←]

[→]

keys and depress

the

[↵]

key. THE Scale pulldown menu will appear with the cursor flashing at the first

set position.

3-2.

There are fOur (4) selectable items as detailed below. Two (2) of the items relate to
the TORQUE/ANgle curve, and the other two (2) relate to the TORQUE/TIme curve.


TORQUE/ANGLE SCALE SELECTION: TORQUE/TIME SCALE SELECTION:

ANGLE SCALE

TIME SCALE

*** DEG-----(range 10-500)

*** MSEC----(range 10-500)

Note:

Angle Scale is not actually setting "degrees", and Time Scale is not actually setting
"milliseconds". These are actually sampling rates; the settings here determine how many
plot points will be used for each fastening curve. Refer to Section 7.4.6 for more details.

DIVIDE (ANGLE)

DIVIDE (TIME)

*** DEG---(.1, .2, .3, 1, 2, 3)

*** MSEC----(10,20,30,100,200,300)

(six settings available)

(six settings available)

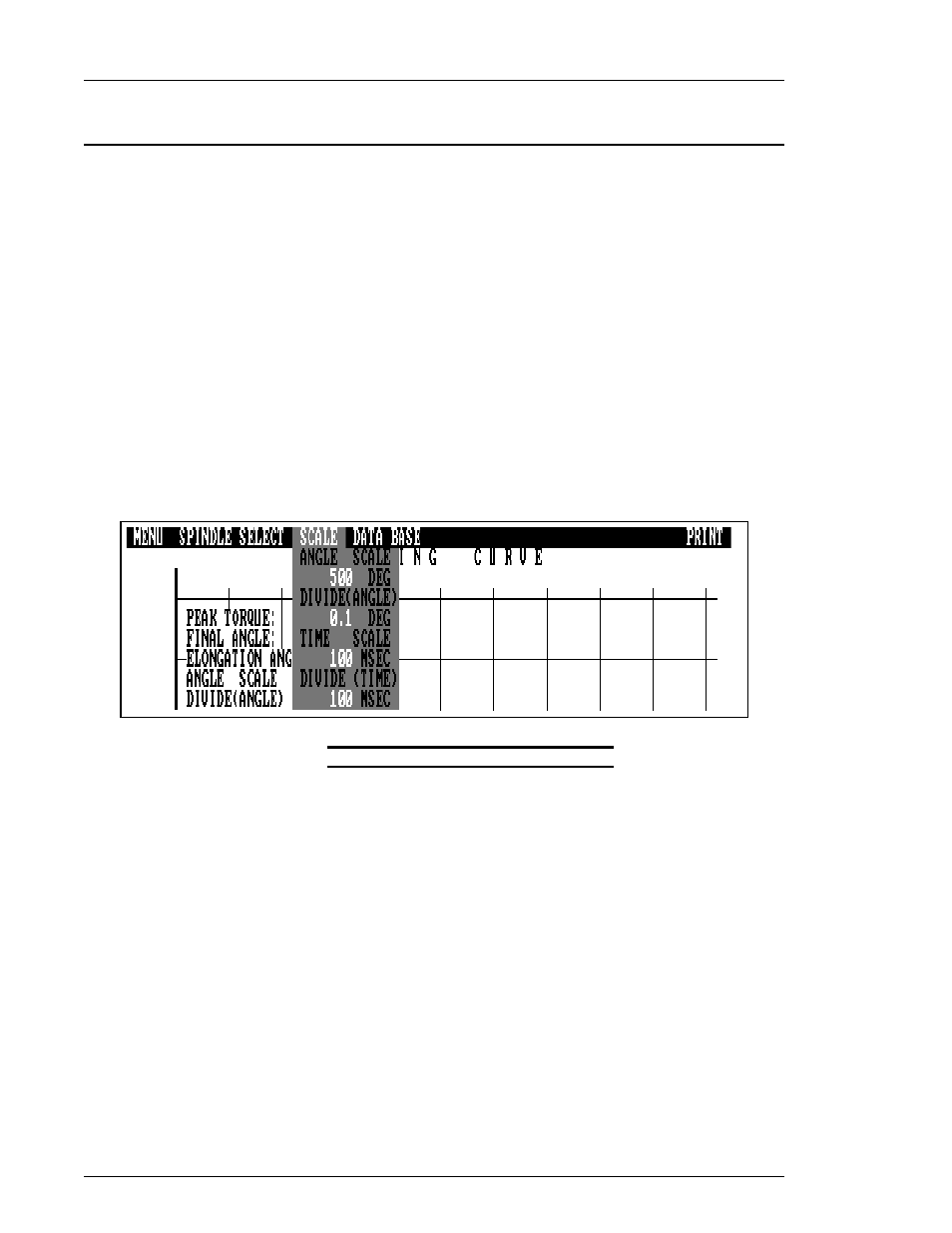

FIG. 7-4-3 fastening curve scale selection

3-2a.

The RUN/PROGRAM key does not have to be in the PROGRAM position to
enter data.

3-2b.

ENTER the numerical value for ANGLE SCALE, between 10 and 500

degrees,

using the numerical keys.

3-2c.

MOVE the cursor to the next entry item using the

[↑]

[↓]

keys and select the

desired DIVIDE (ANGLE) figure using the

[←]

[→]

keys.

3-2d.

MOVe the cursor to the next entry item using the

[↑]

[↓]

keys and enter the

desired TIME SCALE numerical value using the numerical entry keys,
between 10 and 500 milliseconds.

3-2e.

MOVE the cursor to the next entry item using the

[↑]

[↓]

keys and select the

desired DIVIDE (TIME) figure using the

[←]

[→]

keys.

3-2f. DEPRess

the

[↵]

key and the screen will display the ANGLE SCALE and

DIVIDE (ANGLE) or the TIME SCALE and DIVIDE (TIME) values selected.

Chapter 7: System Operation

Page 7-38
