Operation Model

7600

Teledyne Analytical Instruments

• Station No.: Set the station No. for MODBUS

communication. Settable in the range from
00 to 32.

• Range setting: Moves to the screen on which measuring

range is changed.

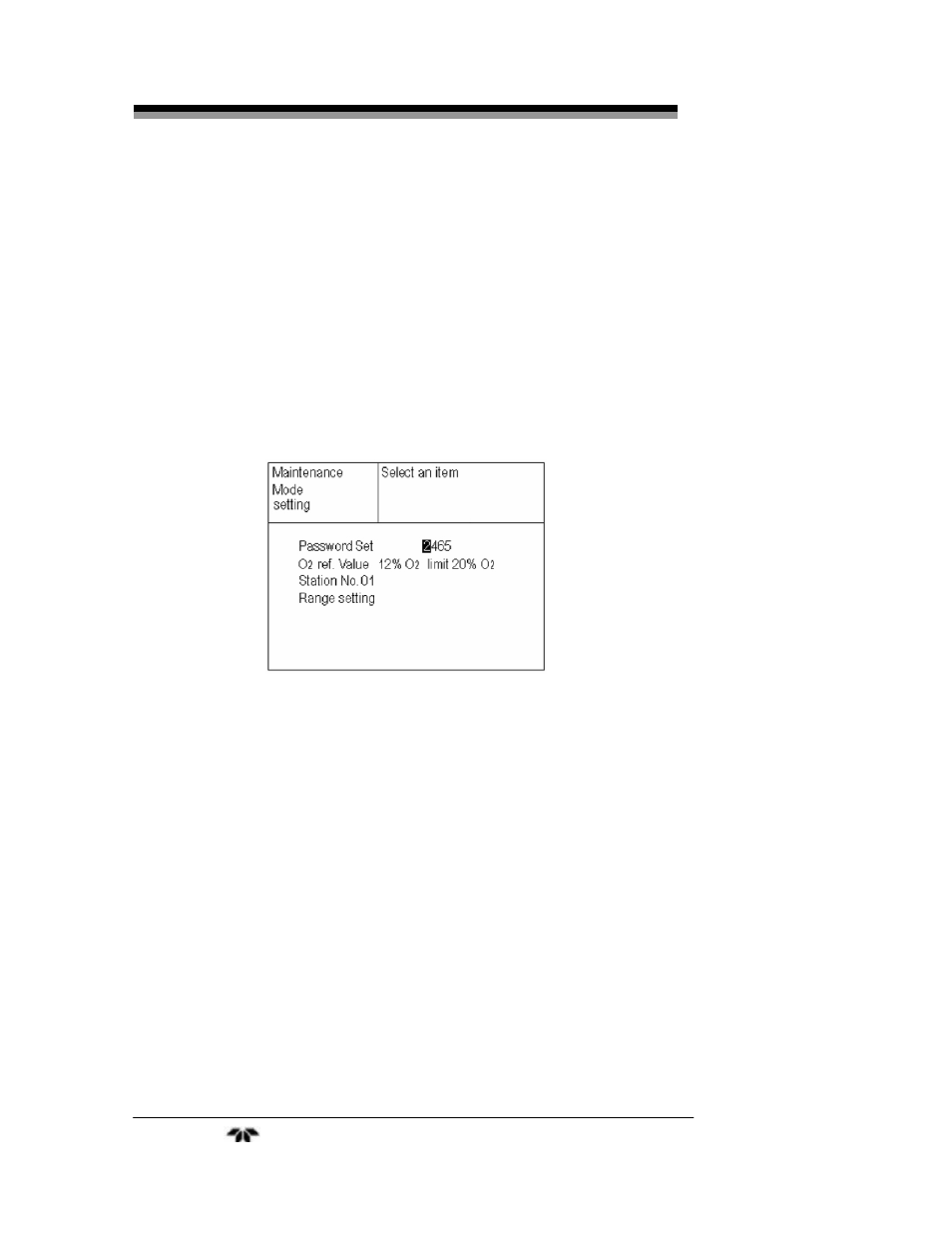

To adjust or make changes to these parameters:

1. Press the UP or DOWN key to move the cursor to the

item whose setting is to be changed.

2. The values for password, oxygen correction, limit, and

station no. are highlighted.

3. Press the UP or DOWN key to change the value and then

press the ENT key.

Note: If you forget the password you will be locked out from the

maintenance mode. Keep a record of the password in a
secure place. Contact the factory for instruction on
reclaiming forgotten or lost passwords.

To set or change the range:
The measuring range can be arbitrarily selected in the minimum

and the maximum range specified at the time of purchase. The range to
be used can be selected as 1 or 2.

1. Move the cursor to the Range Setting option using the UP

or DOWN key, and then press the ENT key.

2. This brings up another screen that lists the channels and

components. Move the cursor to the channel whose
setting is to be changed by pressing the UP or DOWN
key, and then press the ENT key.
