Infrared Gas Analyzer Operation
Teledyne Analytical Instruments 61
Any operation other than “Stop Auto Calibration” (see
Section 3.5.4.5) is not permitted during auto calibration.
“Stop Auto Calibration” cannot be performed when the key
lock is ON.
To cancel auto calibration, set the key lock to OFF and
then execute “Stop Auto Calibration”.
Auto Calibration Example
Start Time SUN 12:00
Cycle 1 day
Flow Time Zero 350 sec
Ch1 Span 350 sec
Ch1 Span 350 sec
Ch1 Span 350 sec
Ch1 Span 300 sec
Ch1 Span 300 sec
EX. time 300 sec
ON/OFF ON

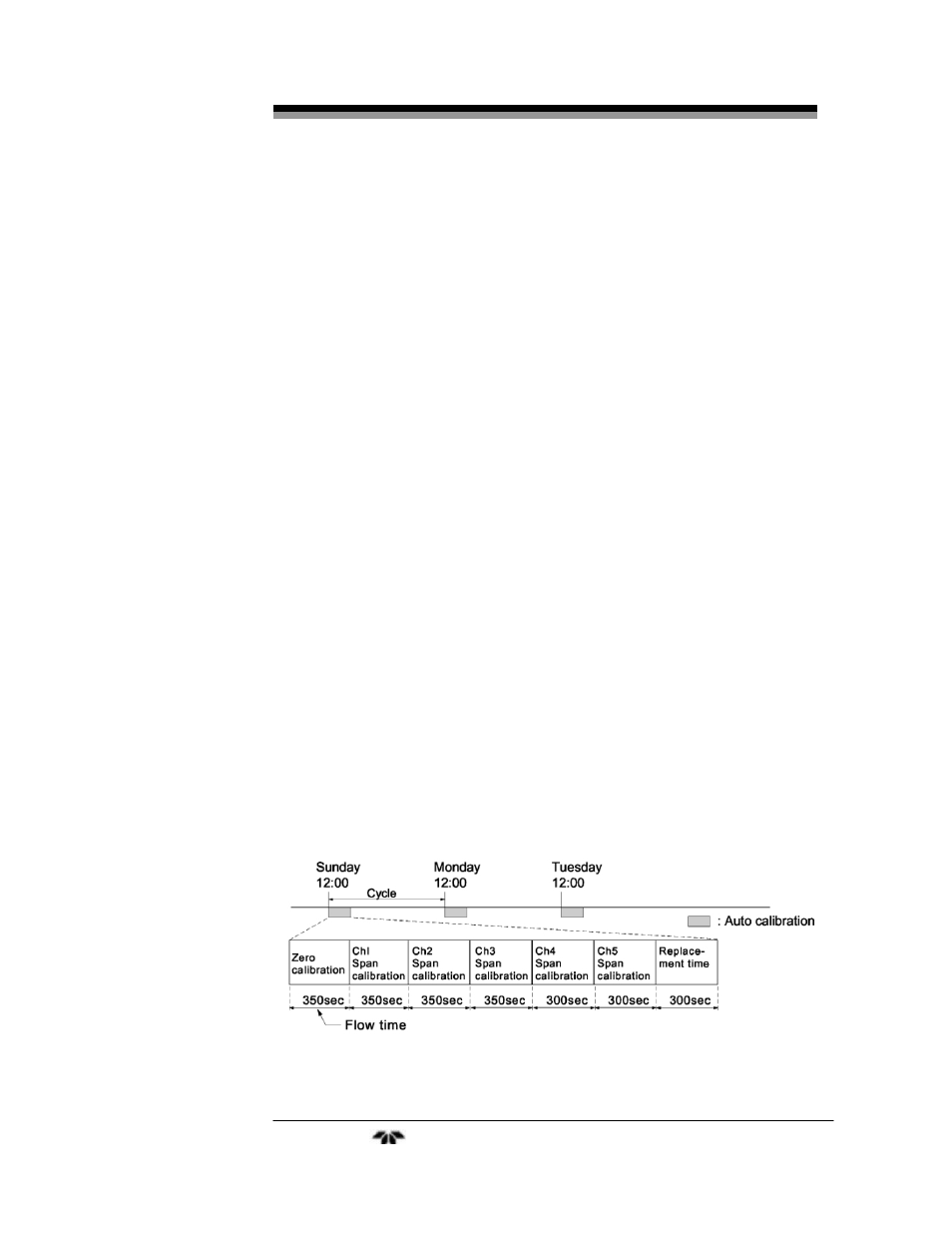

Figure 3-7 shows the auto calibration with the above settings.
Figure 3-7: Example Auto Calibration
