Installation and Maintenance Manual
ix
D0119, Rev. F
SlideDriver Models
HySecurity manufactures many hydraulic slide gate operator models to suit the desired gate panel size,
weight and speed. All of the operator models are derived from the SlideDriver 10, upon which this manual is
designed. Identify your operator model and note the changes in instructions and final adjustments.
SlideDriver
10
SlideDriver
40
SlideDriver
30F
SlideDriver
50VF2*
SlideDriver
50VF3*
SlideDriver
80
SlideDriver
200
General
Commercial
industrial,
high security Commercial
industrial,
high security Commercial
industrial,
high security Commercial
industrial, high
security Commercial
industrial, high
security Commercial
industrial, high
security Commercial
industrial, high
security
Gates Lighter gates
Heavier gates
to 4,000 lbs.
Heavier gates
(3,000 lbs.)
and faster (20
inches/sec.)
Variable
Frequency Drive
(easy start and
stop) heavy
gates (5,000
lbs.) and fast
(26 inches/sec.) Variable
Frequency Drive
(easy start and
stop) heavy
gates (5,000
lbs.) and fast
(36 inches/sec.)
Very heavy
gates
(up to
8,000 lbs.)
Heaviest
gates (up to
20,000 lbs.)
Duty Continuous Continuous Continuous Continuous Continuous Continuous Continuous
Part
Number
222 SS 222 E 222 EX 1.7 222 X2 222 X3 222 X1 444 XS
Modular 10-M 40-M 30F-M 50VF2-M 50VF3-M 80-M -
Prison 10-C 40-C 30F-C 50VF2-C 50VF3-C 80-C 200-C
24V UPS 10 UPS 40 UPS 30F UPS - - 80 UPS 200 UPS
Solar 10-S 40-S 30F-S - - 80-S 200-S
HP 1 hp 1 hp 2 hp 2 hp 2 hp 2 hp 5 hp
Speed 12” / sec. 12” / sec. 20” / sec. 26” / sec. 36” / sec. 12” / sec. 12” / sec.
Soft Stop yes yes yes yes yes yes yes
Brake
Valves
no yes yes yes yes yes yes
Soft Start no no yes
ultra soft start
and stop ultra soft start
and stop
yes yes
Drawbar
Pull
300 lbs. 300 lbs. 300 lbs. 300 lbs. 300 lbs. 600 lbs. 1,200 lbs.
Weight
Capacity
1,000 lbs. 4,000 lbs. 3,000 lbs. 5,000 lbs. 5,000 lbs. 8,000 lbs. 20,000 lbs.
Drive
Wheels 2, 6” drive
wheels 2, 6” drive
wheels 2, 6” drive
wheels 2, 8” drive
wheels 2, 8” drive
wheels 2, 8” drive
wheels 4, 8” drive
wheels
UL Class I, II, III, IV I, II, III, IV III, IV III, IV III, IV III, IV III, IV
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years
*SlideDriver 50VF models use Installation and Reference Manual D0125. Download at
www.hysecurity.com.

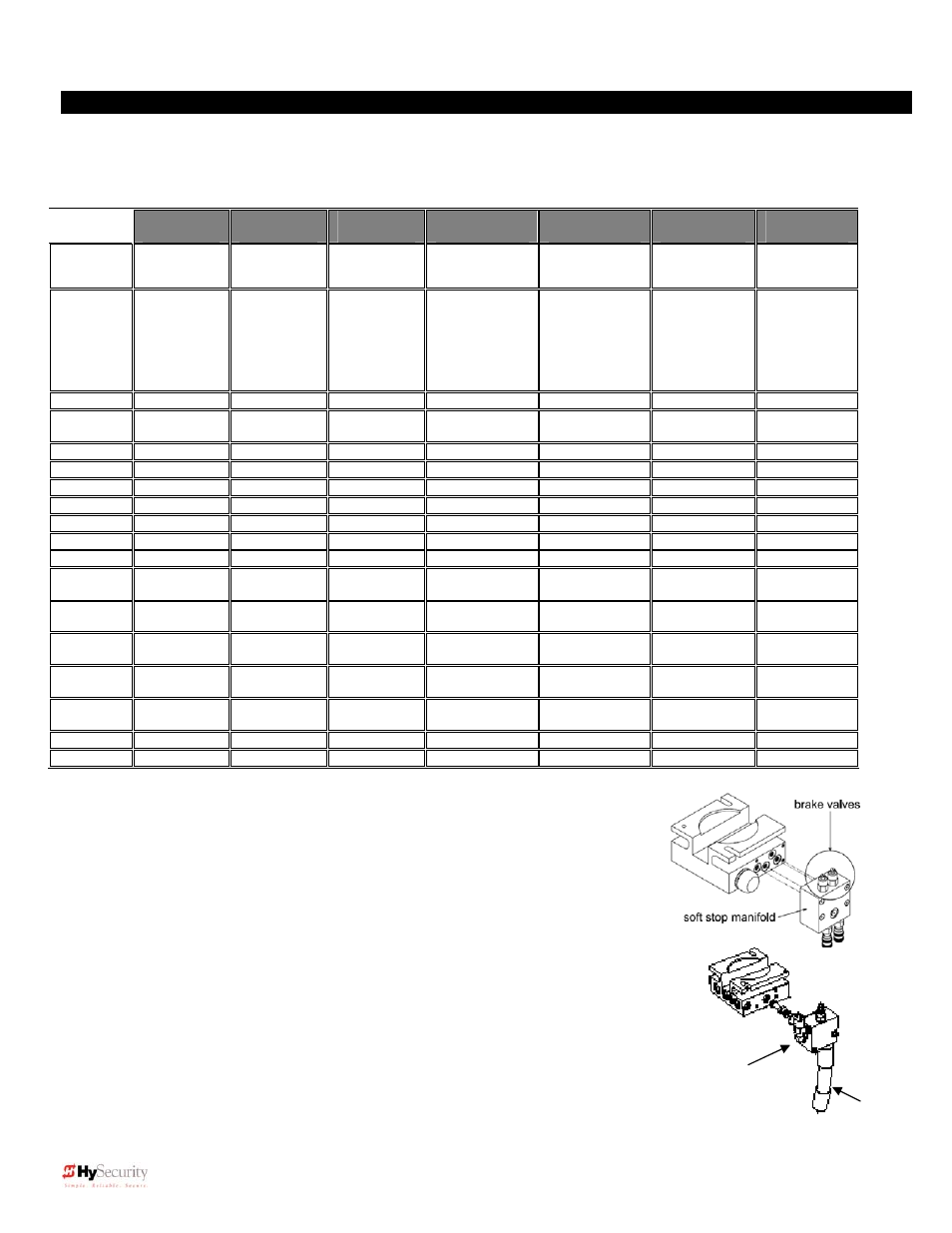

Stopping the Gate
All models employ a time delay Soft Stop system. Additionally, brake valves
are used to control the stopping of heavy or fast moving gates. These valves
are exclusive to HySecurity operators. They are independently adjustable to
allow the gate to stop predictably and without banging.
Starting the Gate
When starting very heavy gates beyond one foot per second, it is necessary to
Soft Start
the load gently, in addition to stopping it smoothly. HySecurity
accomplishes Soft Start with another exclusive feature we call an Accumulator
With Out Gas (AWOG)
, which diverts some of the start-up hydraulic flow and
thereby allows the gate to accelerate over a period of about 2 seconds. This is
much like letting your foot slowly off a car clutch – no lurching when the gate starts.
The downward facing AWOG (shown right) improves the life and performance of a
gate system and never needs adjustment.
NOTE: Operators purchased prior to May 2008 may be equipped with an upward facing AWOG
hose which may periodically require “bleeding” the air pockets from the hose.
1
soft start manifold
Downward facing
AWOG
