Installation and Maintenance Manual
64
D0119, Rev. F

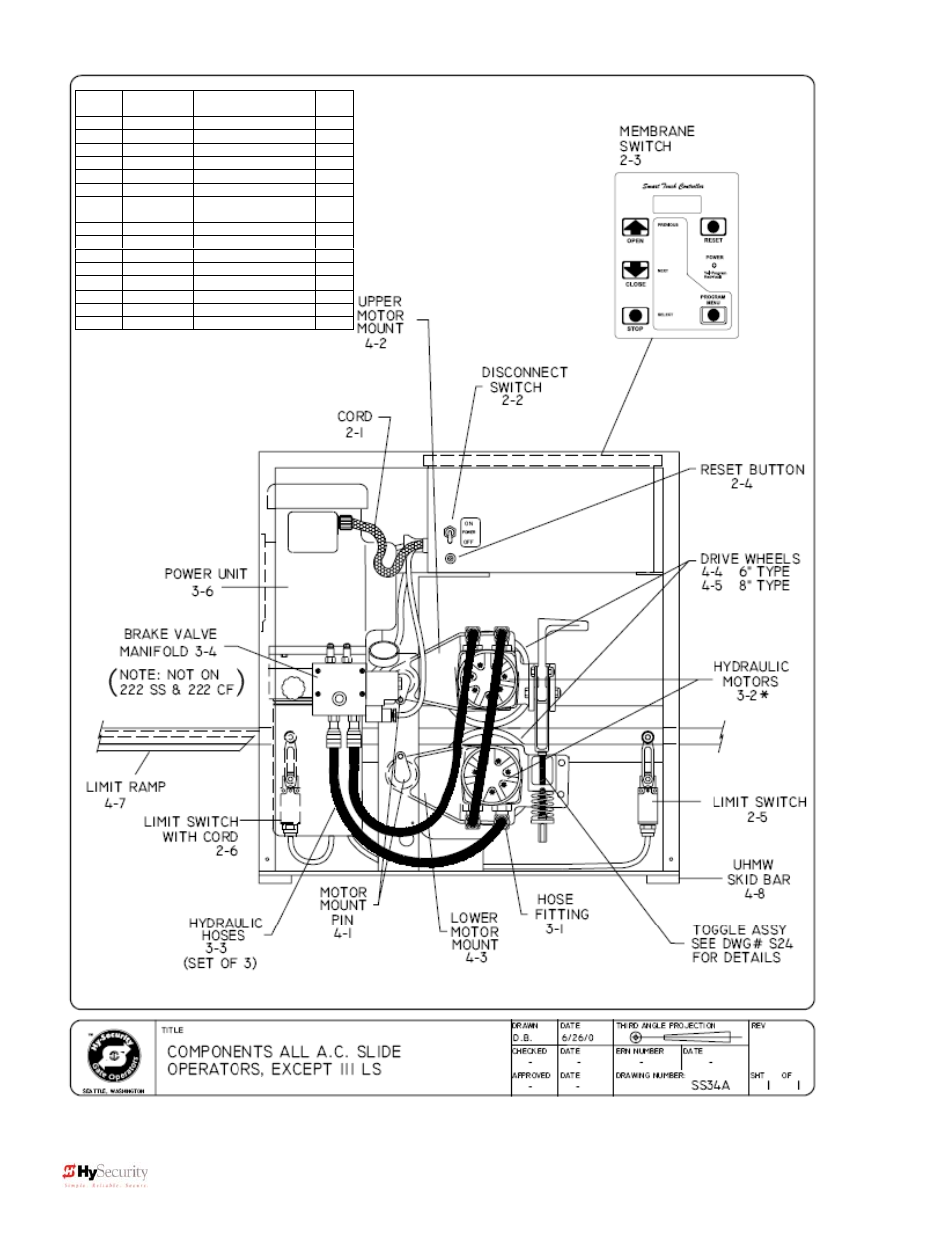

P/N DISC Qty
2-2 MX000715 Disconnect Switch 1
2-3 MX000343 Membrane Switch 1
2-4 MX001088 Reset 1
2-5&6 MX000672 Limit Switch 2
3-1 MX000250 Hose Fitting 4
3-2 MX001149 10” Motor 2
3-2 MX001143 24” motor
(444 & X1)
3-3 MX001129 Hydraulic Hose Kit (3) 1
3-4 MX000137 Brake Manifold 1
4-1 MX001105 Pivot Pin Kit 2
4-2 MX000387 Upper Motor Mount 1
4-3 MX000386 Lower Motor Mount 1
4-4 MX000689 6” Drive Wheel 2
4-5 MX000690 8” Drive Wheel 2
4-7 MX000968 Limit Ramp Kit 2
