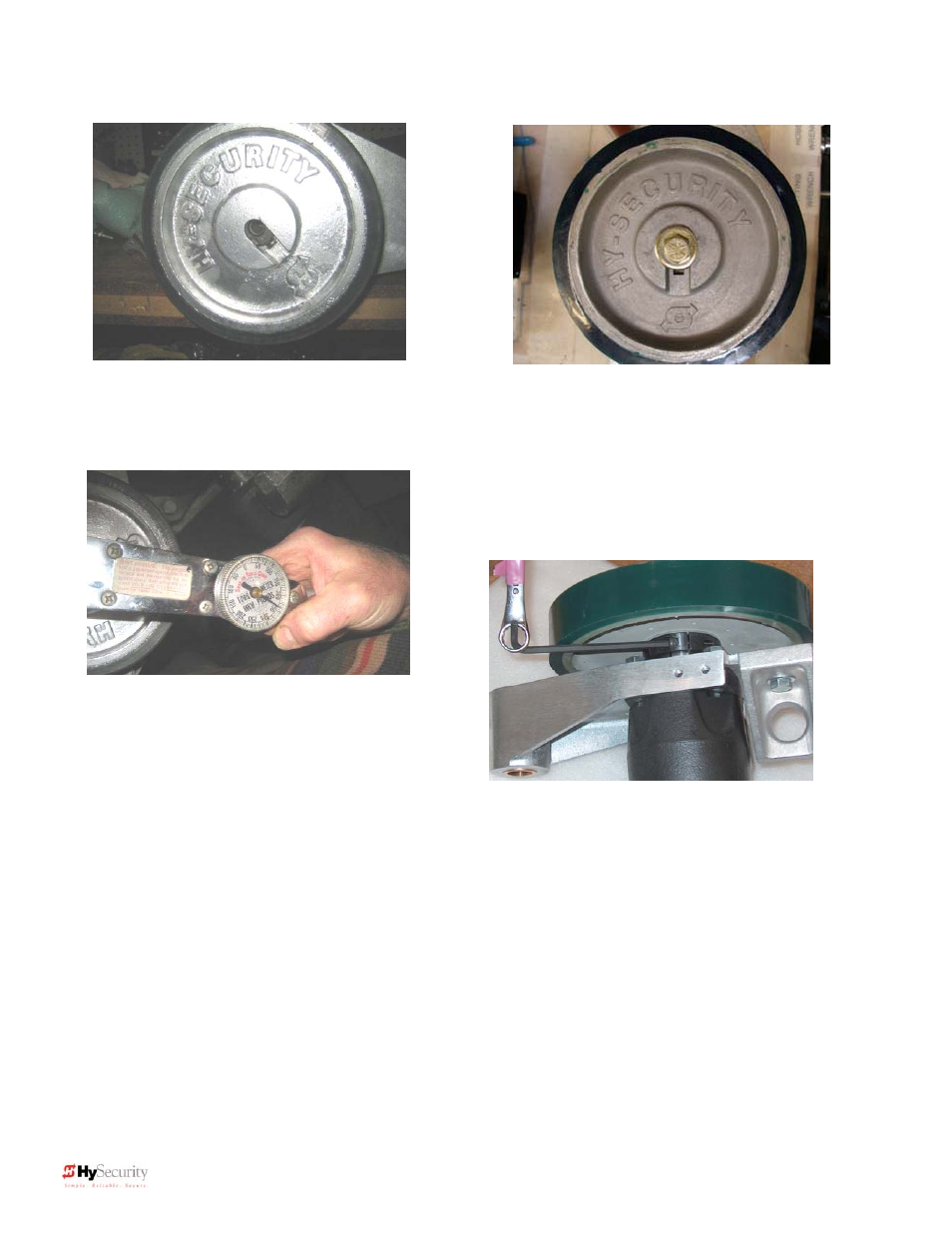

7.) Slide new drive wheel (with collar) onto
the motor shaft and seat with mallet. 8.) Install new bolt and new washer on
wheel/motor assembly.
9.) TIGHTEN BOLT TO APPROXIMATELY
35 - 50 FT*LBS. 10.) Use a 3/16” Allen wrench to tighten the (2)
bolts securely. Be sure the collar is seated
against the back of the wheel hub, with the
collar splits between the wheel hub splits. (If not
fully seated against the wheel, the collar may
contact the motor mounting bolts during
operation.
11.) Re-install the drive wheel assembly in the operator.
