Installation and Maintenance Manual
45
D0119, Rev. F
Connecting a Radio Receiver for Remote Open
Mount a commercial style 24VDC radio receiver (external antenna type) on the inside of the operator, below the
electrical box. Knock out the smallest hole in the lower right corner of the electrical box and route the wires to

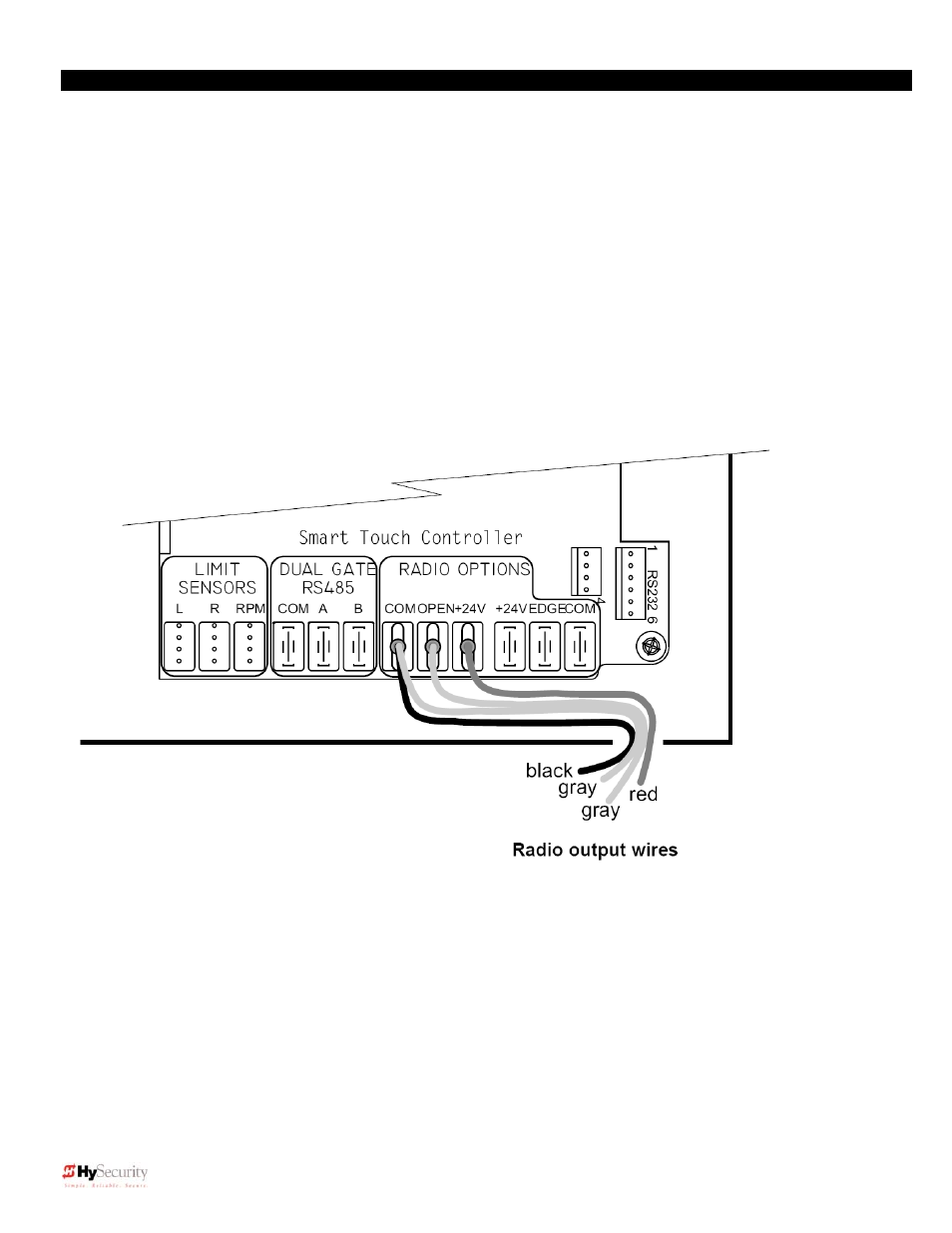

the area marked Radio Options. Only three wire connections are needed because the 24-Volt supply and the
radio output share a wire. Being certain to observe polarity, crimp the black radio power wire together with one
of the radio output wires into a .25” spade connector and connect to the COM terminal. Connect the red wire to
the +24V terminal and connect the other radio output contact wire to the spade marked OPEN. Note that this
terminal is the same as the #4 input terminal labeled REMOTE OPEN AND RADIO CONTROL on the main
control board.
Mount an external antenna onto the top of a fixed post of the fence near the operator.
Connect the antenna into the socket on the radio receiver.
Set the “DIP” switches in the receiver to match the same code used in the transmitter.
If there is also to be an edge sensor transmitter to reverse the gate, be certain to use a two channel commercial
receiver. Remember that each transmitter and receiver must have their codes set the same or they will not
function.
