Installation and Maintenance Manual
12
D0119, Rev. F
Installation
10. Connections for Two Part Battery Operators
The primary AC power must be routed to the DC power supply enclosure, but there must also be at least one 2”
conduit between the gate operator and the DC supply enclosure. Note: AC power is not needed in the gate
operator enclosure, unless there is an optional heater. Three separate DC circuits are required between the
battery supply and the gate operator. Heavy gauge wires to supply the motor and two 14-gauge circuits for the
controls. The heavy gauge wire must be at least 6-gauge if the DC supply is within 20 feet of the operator, but
must be increased to 2-gauge if the DC supply is located farther from the operator or this is a SlideDriver 30F
(222 EX 1.7) – 1.7ft/sec model. Also see page 56 titled “Wiring and Control Configuration for DC Operators"
and Drawing E125 on page 58.
11. Check the operator “Hand” All slide
operators must have their “hand” set before they
can function. The “handing” must be set both by
the proper hydraulic hose connection and
electrically. The hose connection for proper
handing is described on a label near the hose
connection point. Also, see the instructions to set
handing on page 18 “Installation Configuration for
Smart Touch Controller.” Handing is viewed by
standing in the middle of the road on the secure
side looking out. A gate which opens to the right is
a right handed gate. A gate which opens to the left
is a left handed gate.
12. Replace the Shipping Plug!
Replace the ½” steel or red plastic shipping plug on the front side of the pump with the black breather cap.
Failure to do so may contribute to premature shaft seal failure.
13. Setup Smart Touch Controller
The operator controls will not allow the gate to function until the Smart Touch Controller has been configured.
Wait to connect external controls until you have reviewed Smart Touch Controller instructions and tested
operator basic functions.
Note
: HySecurity has an installation CD available free of charge. Call a HySecurity distributor for your copy.

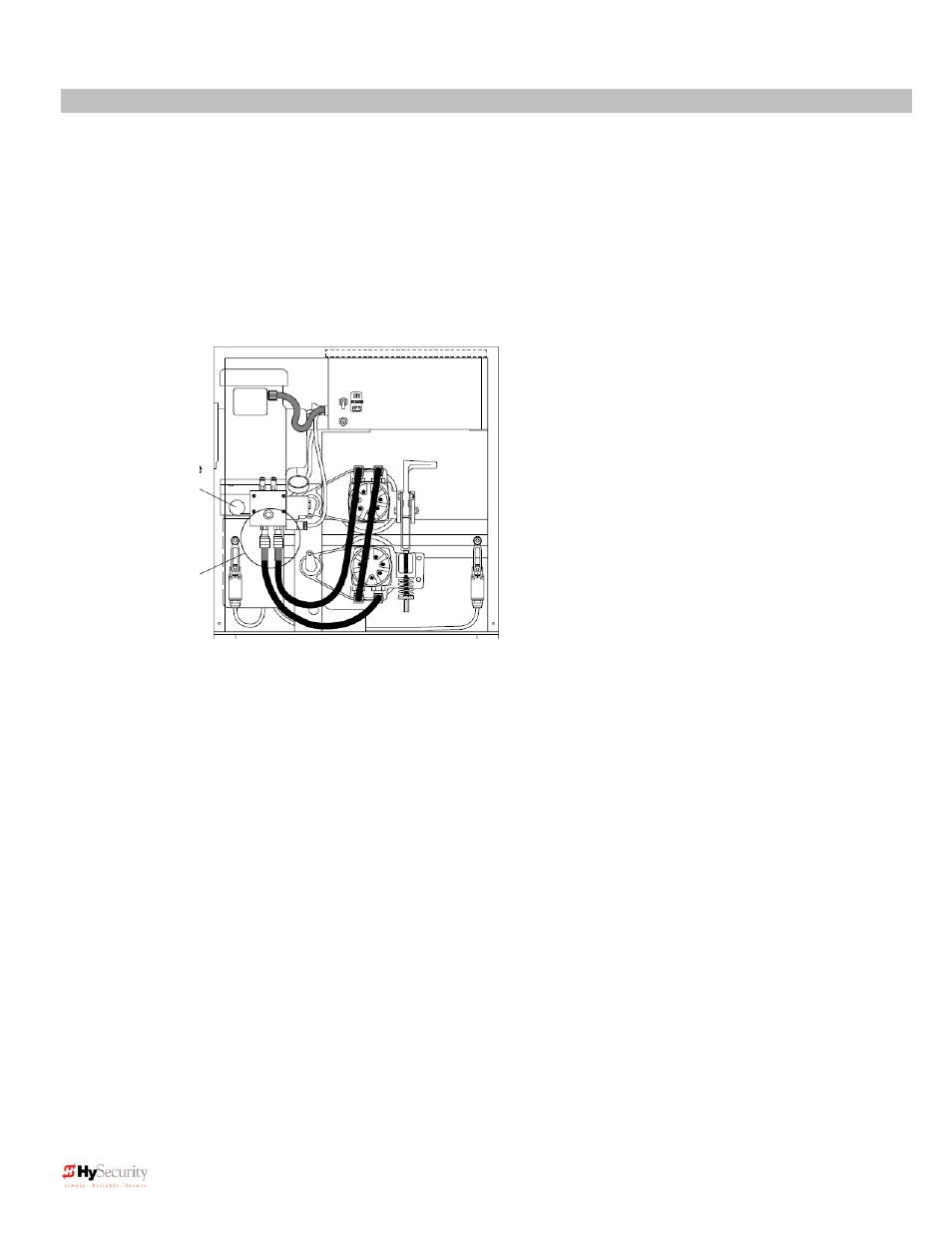

Remove the 1/2”
steel or red plastic
shipping plug and
replace with black
breather cap
To change hand
connect hoses
according to label
on tank
(“Right Hand”
shown)
